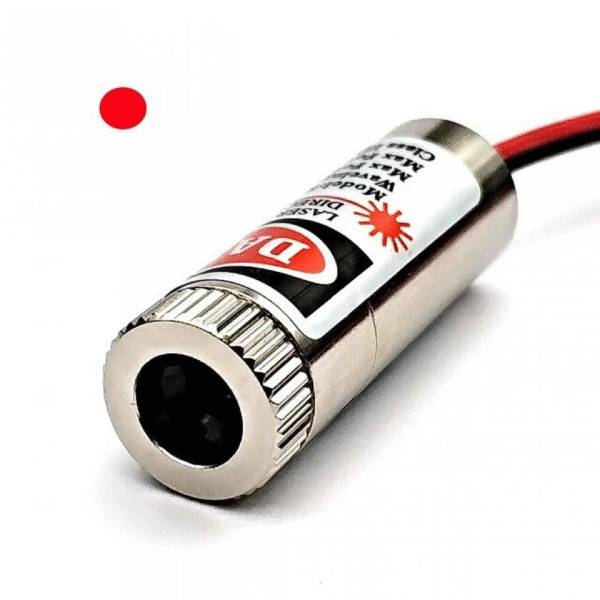

SYD1230 12mm 650nm 5mW Red Point Laser Module

SYD1230 12mm 650nm 5mW Red Point Laser Diode Module – 3V-5V DC

The SYD1230 Red Laser Module is a compact and efficient 5mW laser diode module designed for various electronic and DIY projects. Operating at a wavelength of 650nm, it produces a sharp and intense red laser beam that can be easily integrated into multiple applications.

Built with a 12mm diameter casing, the module features a laser diode, collimating lens, and driver circuit that regulate the beam’s power and focus. The collimating lens ensures a precise, concentrated laser point, making it ideal for alignment, sensing, or visual display projects.

Specifications:

• Input Voltage: 2.8V – 5.2V DC (recommended 3V – 5V).

• Output Power: 5mW.

• Wavelength: 650nm (Red Laser).

• Input Current: 25mA.

• Cable Length: 13cm.

• Dimensions: 3.6 x 1.5 cm.

• Weight: 5g.

Key Features:

• Compact 12mm diameter design for easy integration.

• High-quality laser diode with driver circuit for stable output.

• Collimating lens for precise and focused red laser beam.

• Suitable for DIY electronics, laser pointers, alignment tools, and optical projects.

Package Includes:

• 1 x SYD1230 12mm 650nm 5mW Red Point Laser Module.

Safety Precautions:

• Use with a DC power supply of 3-6V for optimal performance.

• Caution: The laser output is powerful—always wear protective goggles when testing or using.

• Never aim the laser beam at eyes, people, or animals.

• Wiring: Red wire = Anode (+), Black wire = Cathode (–).
