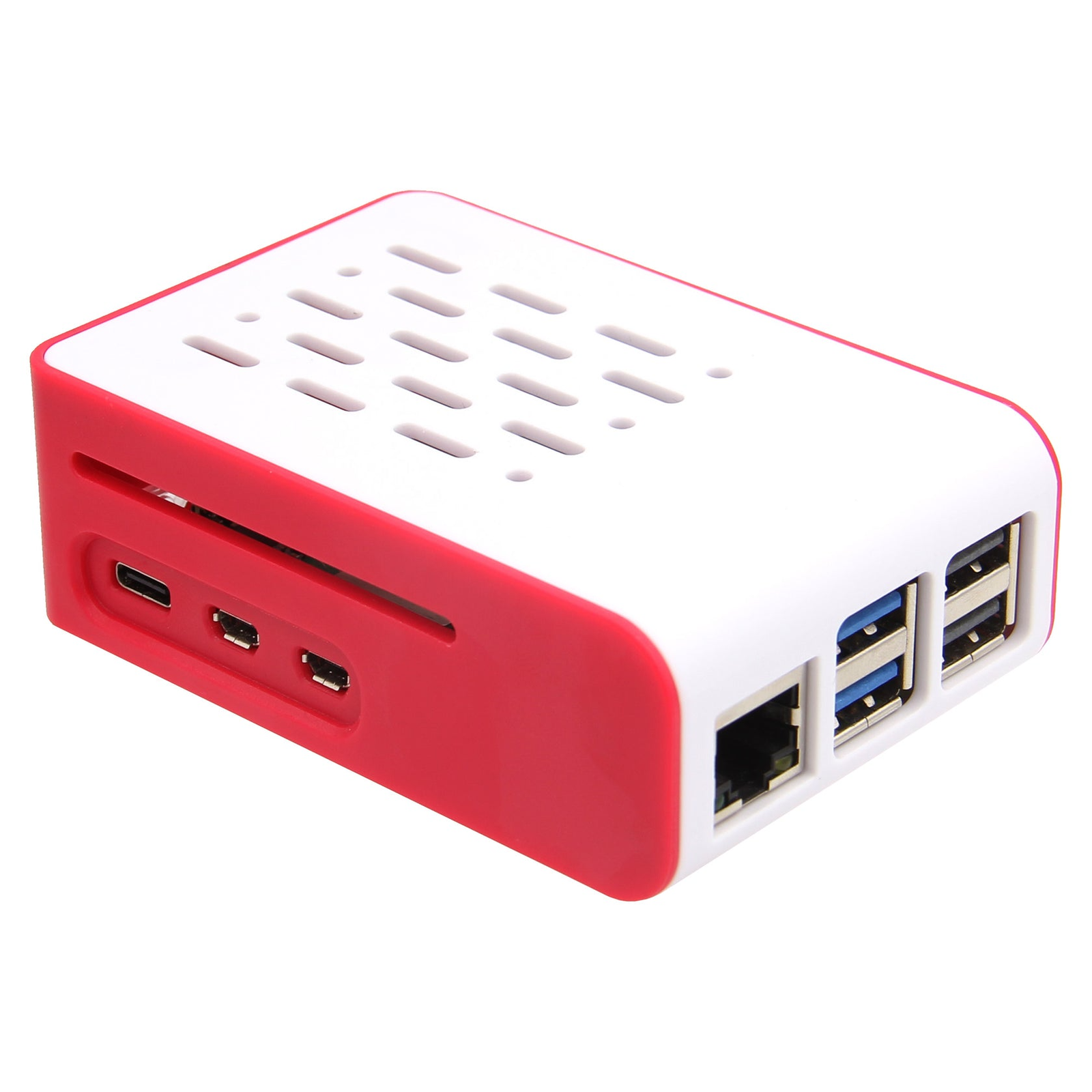

Raspberry Pi 5 Case with Active Cooler – Red/White ABS Enclosure
₹684.40 incl. GST (₹580.00 + GST)
Raspberry Pi 5 ABS Enclosure with Active Cooling Kit is a durable red-and-white case featuring a PWM-controlled 8000RPM fan, aluminum heatsink, thermal pad, and four silicone feet for effective cooling and protection. With tool-less assembly and full port access, it is ideal for Raspberry Pi 5 desktops, servers, robotics, IoT, and high-performance projects.
Raspberry Pi 5 ABS Enclosure with Active Cooling Kit – Red/White Case with PWM Fan
Product Description
The Raspberry Pi 5 ABS Enclosure and Active Cooling Kit is a protective and thermal-management solution designed specifically for the Raspberry Pi 5. It combines a durable ABS enclosure with an active cooling system to help protect the board while maintaining suitable operating temperatures during demanding workloads.
The kit includes an active cooler with an aluminum heatsink, thermal pad, and PWM-controlled fan. The fan can operate at speeds of up to 8000 RPM, providing active airflow to help dissipate heat generated by the Raspberry Pi 5 processor during intensive applications.
The PWM-controlled fan can adjust its speed according to system temperature, allowing quieter operation during lighter workloads and increased cooling when the processor is under heavier load. The cooling system provides airflow of up to approximately 2.79 CFM.

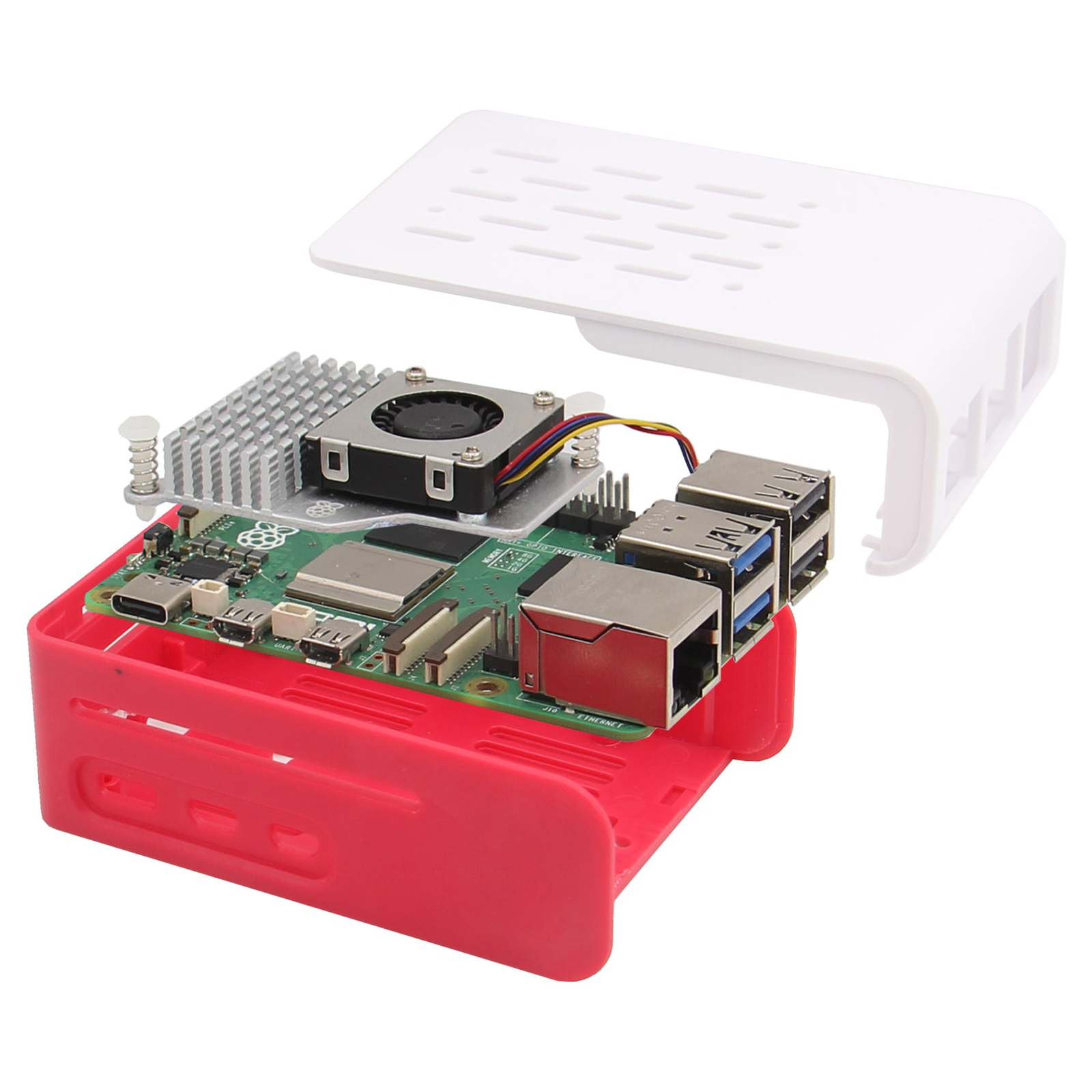

The enclosure features a red-and-white ABS design with a clip-together, tool-less assembly. Its removable lid provides convenient access to the GPIO header and internal components while maintaining protection for the Raspberry Pi 5.
Precise openings are provided for the Raspberry Pi 5’s major ports, including USB, Ethernet, USB Type-C, MicroSD, and dual HDMI, allowing the board to remain connected to external peripherals without removing it from the case.
Features
- Designed specifically for Raspberry Pi 5
- Compatible with all Raspberry Pi 5 RAM variants
- Durable ABS plastic enclosure
- Red and white colour design
- Integrated active cooling system
- PWM-controlled cooling fan
- Fan speed up to 8000 RPM
- Maximum airflow up to 2.79 CFM
- Aluminum heatsink with thermal pad
- Temperature-responsive fan control
- Tool-less clip-together assembly
- Removable top lid
- Full access to major Raspberry Pi 5 ports
- GPIO access support
- Four silicone non-slip feet
- Suitable for continuous and high-load operation
- Useful for desktop, server, and robotics applications
- Stackable design for selected projects
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Raspberry Pi 5 ABS Enclosure with Active Cooling |
| Compatibility | Raspberry Pi 5 – All RAM Variants |
| Case Material | ABS |
| Fan Assembly Material | Polycarbonate |
| Heatsink Material | Aluminum |
| Heatsink Size | 12 × 17 × 4 mm |
| Fan Type | PWM Controlled |
| Maximum Fan Speed | Up to 8000 RPM ±15% |
| Maximum Airflow | 2.79 CFM |
| Fan Input Voltage | 5V DC |
| Fan Connector | 4-Pin JST |
| Colour | Red / White |
| Mounting | Clip-Together / Tool-Less |
| Feet | 4 Silicone Non-Slip Feet |
Design and Construction
The enclosure is manufactured from durable ABS plastic and is designed to protect the Raspberry Pi 5 while providing access to the board’s essential connections.
The case uses a clip-together construction, allowing installation without tools. The removable lid makes it easier to access GPIO connections, the cooling assembly, and other internal components.
The ventilation and active cooling design is intended to help manage heat generated by the Raspberry Pi 5 during intensive computing tasks.
The included silicone feet help reduce movement and provide additional stability when the enclosure is placed on a desk or other smooth surface.
Active Cooling System
The active cooler combines an aluminum heatsink and PWM-controlled fan to improve thermal management.
The aluminum heatsink transfers heat away from the processor, while the fan provides forced airflow across the cooling assembly.
The PWM-controlled fan can vary its speed according to system requirements. Lower loads can result in quieter operation, while higher workloads can trigger increased fan speed for greater cooling performance.
The fan provides airflow of up to approximately 2.79 CFM and can operate at speeds of up to approximately 8000 RPM.
Working Principle
The Raspberry Pi 5 is installed inside the ABS enclosure with the active cooling assembly positioned over the appropriate processor area.
The aluminum heatsink uses the supplied thermal pad to establish thermal contact with the processor. Heat generated by the processor is transferred into the heatsink, where the fan helps remove it through airflow.
The PWM fan connection allows the Raspberry Pi 5 to control fan operation according to supported temperature-management functions.
The case provides openings around the board’s ports so peripherals can remain connected while the Raspberry Pi 5 is enclosed.
Port Access
The enclosure provides openings for major Raspberry Pi 5 connections, including:
- USB ports
- Ethernet port
- USB Type-C power connection
- Dual HDMI connections
- MicroSD card access
- GPIO header
This allows the Raspberry Pi 5 to remain installed inside the case during normal use without blocking essential connectivity.
Typical Application Scenarios
Desktop Computing
Suitable for Raspberry Pi 5 systems used for web browsing, office applications, programming, development, and general desktop computing.
High-Performance Projects
The active cooler helps manage heat during CPU-intensive applications, compiling, data processing, development, and other demanding workloads.
24/7 Server Applications
Useful for Raspberry Pi 5 systems running services such as Home Assistant, Pi-hole, media servers, network services, and other continuously operating applications.
Makerspace and Robotics
Provides a protective enclosure and active thermal management for Raspberry Pi-based robotics, IoT devices, automation systems, and development prototypes.
Cluster Projects
The integrated mounting features can be useful for selected stacked Raspberry Pi installations and compact multi-board projects.
Applications
- Raspberry Pi 5 desktop systems
- Home servers
- Home Assistant
- Pi-hole
- Media servers
- Network monitoring
- IoT gateways
- Robotics
- AI and computing projects
- Automation systems
- Makerspace projects
- Educational Raspberry Pi projects
- Development and prototyping
- High-load computing applications
- 24/7 Raspberry Pi installations
Package Includes
- 1 × Raspberry Pi 5 ABS Case – Red/White
- 1 × Active Cooler with Integrated PWM Fan
- 1 × Aluminum Heatsink with Thermal Pad
- 4 × Silicone Non-Slip Feet
Product Disclaimer
Product images are shown for illustrative and representational purposes only. The actual enclosure may vary slightly in colour, dimensions, port cutout design, fan appearance, labeling, or other details depending on the manufacturing batch.
The Raspberry Pi 5 board is not included. This product is an accessory enclosure and cooling kit only.
The cooling performance depends on ambient temperature, processor workload, airflow around the enclosure, software fan control, thermal-pad installation, and operating conditions.
Important Notes
Board Requirement
This kit is designed for the Raspberry Pi 5 and does not include the Raspberry Pi 5 board.
Thermal Pad Installation
Ensure the supplied thermal pad is clean and free from dust before installation. Position it correctly between the heatsink and processor before pressing the cooling assembly into place.
Fan Connection
Connect the fan cable to the dedicated 4-pin fan header on the Raspberry Pi 5 as specified for the cooling assembly.
Airflow
Avoid blocking the enclosure’s ventilation openings. Adequate surrounding airflow helps the active cooling system operate effectively.
Raspberry Pi 5 Compatibility
Verify the exact enclosure revision and Raspberry Pi 5 board configuration before installation, particularly when using additional HATs, accessories, or large GPIO-connected components.
Recommended Related Products
Explore relevant alternatives and complementary products selected from the full Robosap catalogue.
Frequently Asked Questions
1. Is the Raspberry Pi 5 board included?
No. The package includes only the enclosure and active cooling components.
2. Is this case compatible with Raspberry Pi 4?
No. It is specifically designed for the Raspberry Pi 5.
3. Does it include an active cooling fan?
Yes. The kit includes an integrated PWM-controlled active cooler.
4. What is the maximum fan speed?
The fan can operate at up to approximately 8000 RPM ±15%.
5. What is the maximum airflow?
The specified maximum airflow is approximately 2.79 CFM.
6. Does the kit include a heatsink?
Yes. An aluminum heatsink with a thermal pad is included.
7. Does the fan automatically adjust its speed?
The supplied specification describes a PWM-controlled fan, allowing speed control according to supported temperature-management settings.
8. Can I access the GPIO pins?
Yes. The enclosure is designed to provide access to the Raspberry Pi 5 GPIO header.
9. Can I access the USB and HDMI ports without removing the case?
Yes. The enclosure includes openings for the Raspberry Pi 5's major ports.
10. Is assembly difficult?
The case uses a clip-together tool-less design, making basic assembly straightforward.
11. Are non-slip feet included?
Yes. The kit includes four silicone non-slip feet.
12. Can it be used for 24/7 operation?
The enclosure and cooling system are suitable for continuous-use Raspberry Pi 5 applications when operated within appropriate thermal and electrical conditions.
13. Can I use it for Raspberry Pi 5 servers?
Yes. It is suitable for Home Assistant, Pi-hole, media servers, development servers, and other Raspberry Pi 5 server applications.
14. Can I use the case with Raspberry Pi 5 HATs?
Compatibility depends on the specific HAT and its physical dimensions. Some HATs may require additional clearance or may not fit with the enclosure installed.
15. Does the package include a power supply?
No. The Raspberry Pi 5 power supply is not included unless specifically stated in the package contents.Only logged in customers who have purchased this product may leave a review.
