5MP Raspberry Pi Camera Module (Rev 1.3)
₹283.20 incl. GST (₹240.00 + GST)

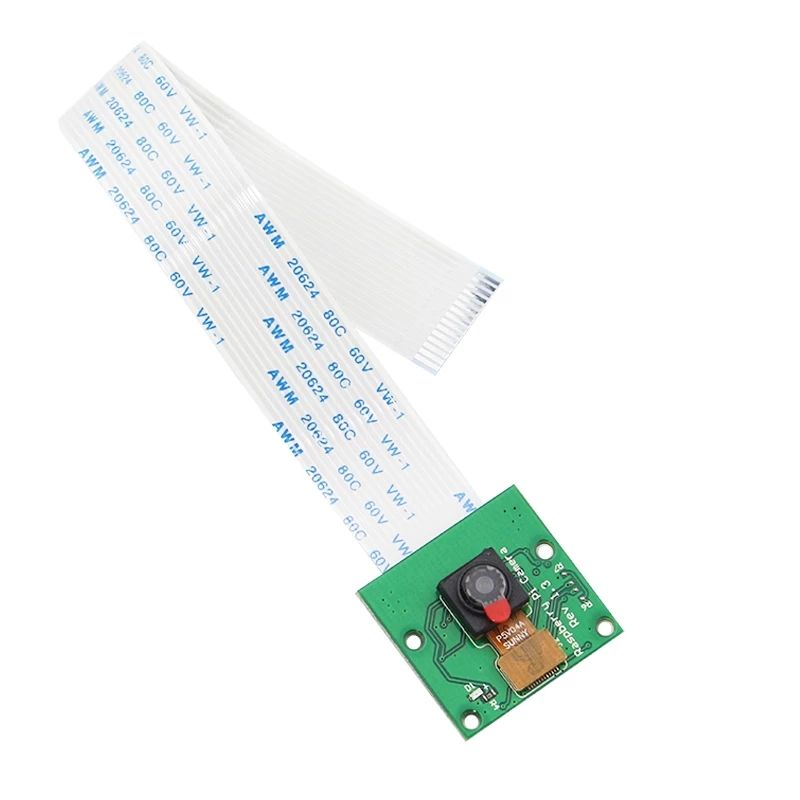

The 5MP Raspberry Pi Camera Module (Rev 1.3) is a compact camera designed for compatible Raspberry Pi boards, offering 5MP image resolution and 1080p HD video at 30fps. It connects through the CSI interface using the included 15-pin ribbon cable and features a fixed-focus lens. Its small 25 × 24 mm design makes it ideal for CCTV, robotics, drones, time-lapse, smart monitoring, and DIY vision projects.
Product Description
The 5MP Raspberry Pi Camera Module (Rev 1.3) is a compact and lightweight camera module designed for capturing high-resolution images and HD video with compatible Raspberry Pi boards. Featuring a 5-megapixel image sensor, it supports video recording up to 1080p at 30fps, making it suitable for surveillance, robotics, monitoring, and DIY projects.
The camera connects directly to the Raspberry Pi through the dedicated CSI (Camera Serial Interface) using the included 15-pin flexible ribbon cable. The CSI interface provides a direct connection between the camera and Raspberry Pi for efficient image and video data transfer.
With its 25 × 24 mm compact size and fixed-focus lens, the camera can be easily integrated into space-constrained projects. It is suitable for applications such as CCTV systems, robotic vision, time-lapse photography, drones, smart doorbells, and other embedded vision projects.
Features
- 5-megapixel camera sensor
- Supports HD video recording
- 1080p video at 30fps
- 720p video at 60fps
- VGA video modes up to 90fps
- CSI Camera Serial Interface
- Includes 15-pin flexible ribbon cable
- Fixed-focus lens
- Compact and lightweight design
- Easy integration with compatible Raspberry Pi boards
- Suitable for real-time vision applications
- No audio recording
- Ideal for DIY and embedded projects
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Raspberry Pi Camera Module |
| Revision | Rev 1.3 |
| Sensor Resolution | 5 Megapixel |
| Video Resolution | 1080p @ 30fps |
| Video Resolution | 720p @ 60fps |
| VGA Modes | 640 × 480 @ 60/90fps |
| Interface | CSI Camera Serial Interface |
| Connector | 15-Pin |
| Cable | Flexible Ribbon Cable |
| Lens Type | Fixed Focus |
| Camera Size | 25 × 24 mm |
| Audio | Not Supported |
| Compatibility | Raspberry Pi boards with compatible CSI interface |
Design and Construction
The camera features a small PCB-mounted camera sensor with a fixed-focus lens, providing a compact solution for embedded vision applications. Its lightweight construction makes it suitable for projects where space and weight are important considerations.
The included flexible ribbon cable allows the camera to be connected directly to the Raspberry Pi CSI camera interface. Its compact 25 × 24 mm form factor makes it easy to mount inside custom enclosures, robots, drones, monitoring systems, and other projects.
Working Principle
The camera sensor captures light through its fixed-focus lens and converts the optical information into digital image data. The data is transferred to the Raspberry Pi through the CSI interface, where it can be processed, displayed, stored, or used by software applications.
The camera can be used for both still-image capture and video recording. Depending on the selected resolution and frame rate, it supports modes such as 1080p at 30fps, 720p at 60fps, and VGA at up to 90fps.
Applications
- Raspberry Pi CCTV systems
- Home security cameras
- Robotics and machine vision
- Object detection projects
- Time-lapse photography
- Plant monitoring
- 3D printing monitoring
- Drone projects
- Smart doorbells
- Video surveillance
- DIY camera systems
- IoT vision projects
- Educational projects
- Embedded vision applications
Compatible Platforms
- Raspberry Pi 3 Model B
- Raspberry Pi 3 Model B+
- Raspberry Pi 4 Model B
- Other Raspberry Pi boards featuring a compatible CSI camera interface
Package Includes
- 1 × 5MP Raspberry Pi Camera Module (Rev 1.3)
- 1 × 15-Pin Flexible Ribbon Cable
Product Disclaimer
Compatibility depends on the Raspberry Pi model, CSI connector, operating system, and camera software being used. Please verify the camera interface and connector compatibility before installation.
The camera uses a fixed-focus lens and does not include an onboard microphone, so it is intended for image and video capture only.
Product images are for representation only. The actual product may vary slightly in colour, appearance, component placement, or construction depending on the manufacturing batch.
FAQs – 5MP Raspberry Pi Camera Module (Rev 1.3)
1. What is the resolution of this Raspberry Pi Camera Module?
The camera features a 5-megapixel sensor for capturing detailed images.
2. What video resolutions are supported?
It supports 1080p at 30fps, 720p at 60fps, and 640 × 480 VGA modes at up to 90fps.
3. How does the camera connect to Raspberry Pi?
It connects through the Raspberry Pi's CSI Camera Serial Interface using the included 15-pin ribbon cable.
4. Is the ribbon cable included?
Yes, a 15-pin flexible ribbon cable is included with the camera module.
5. Does the camera have autofocus?
No. It uses a fixed-focus lens.
6. Does this camera record audio?
No. The module is designed for image and video capture only and does not include audio recording.
7. Which Raspberry Pi boards are compatible?
It is designed for Raspberry Pi boards with a compatible CSI camera interface, including Raspberry Pi 3 Model B, 3 Model B+, and 4 Model B.
8. What is the size of the camera module?
The camera module measures approximately 25 × 24 mm, making it suitable for compact projects.
9. Can this camera be used for CCTV?
Yes. It is suitable for CCTV, home security, surveillance, and monitoring projects.
10. Can it be used in robotics?
Yes. It can be used for robot vision, object detection, visual monitoring, and other robotics applications.
11. Can the camera be used for time-lapse photography?
Yes. It can be used for time-lapse projects, such as monitoring plant growth or 3D printing.
12. Is the camera suitable for drone projects?
Yes. Its compact and lightweight design makes it suitable for compatible drone and aerial camera projects.
13. Does the camera require a USB connection?
No. It uses the Raspberry Pi's CSI interface rather than USB.
14. What is included in the package?
The package includes 1 × 5MP Raspberry Pi Camera Module (Rev 1.3) and 1 × 15-pin flexible ribbon cable.
15. Are the product images exact?
No. Product images are for representation only, and the actual product may vary slightly in appearance or component placement.
