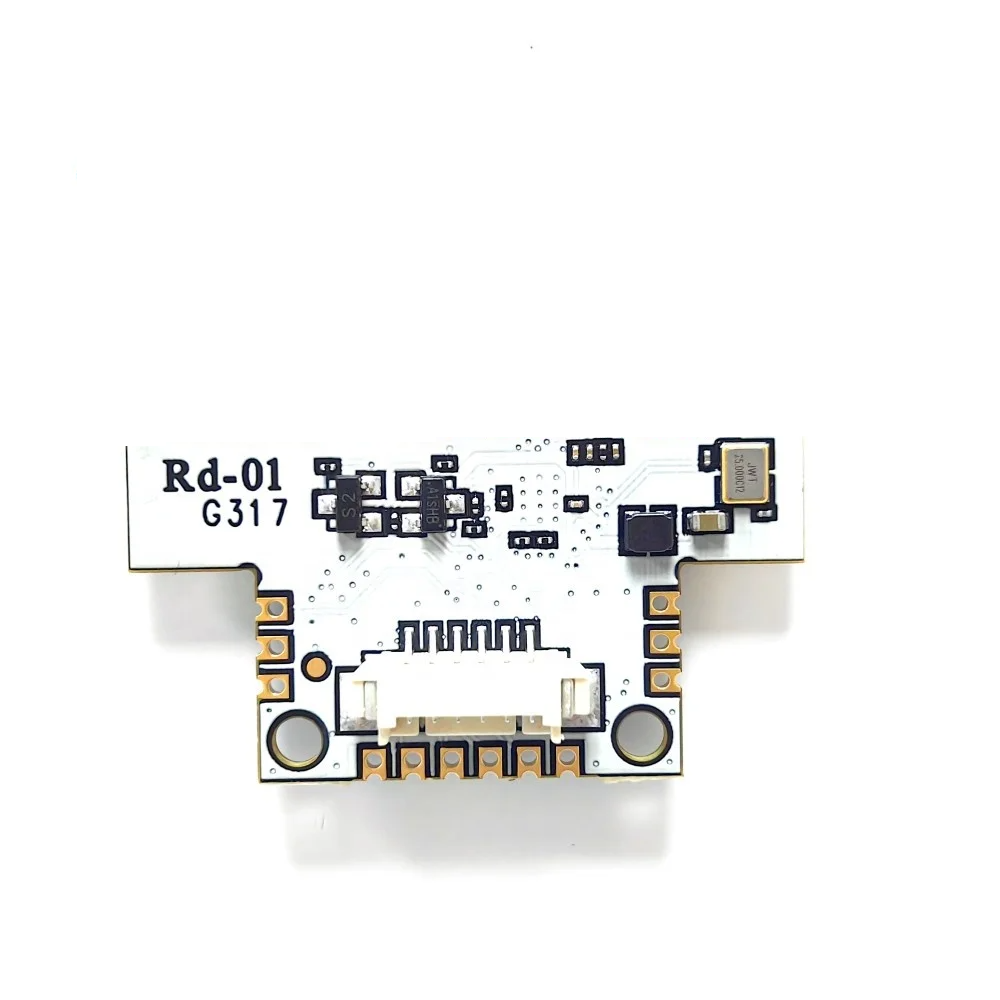

Ai-Thinker RD-01 24GHz Radar Module with Wi-Fi and BLE 5.0
₹518.02 incl. GST (₹439.00 + GST)
3-in-1 Ai-Thinker RD-01 module combining 24GHz radar, Wi-Fi, and BLE 5.0. Features S3KM111L radar chip, BL602 MCU, and wireless parameter configuration.
The Ai-Thinker RD-01 is a revolutionary “All-in-One” module that combines high-precision 24GHz Radar Sensing with powerful Wi-Fi and Bluetooth (BLE 5.0) connectivity. Unlike standard radar sensors that require an external microcontroller to send data, the RD-01 is a standalone IoT node capable of sensing, processing, and transmitting data directly to the cloud or your smart home network.
Dual-Core Powerhouse
The RD-01 is driven by two powerful chipsets:
-
Radar Core (S3KM111L): An FMCW radar SoC that detects human presence (static and moving) with high sensitivity.
-
Connectivity Core (BL602): A 32-bit RISC CPU that handles Wi-Fi (802.11b/g/n) and Bluetooth Low Energy 5.0 communications.
Wireless Configuration & Smart Control
Gone are the days of hard-coding parameters. The RD-01 allows for intelligent parameter adjustment via Bluetooth. You can wirelessly configure detection distance, sensitivity, and delay times directly from a mobile device or laptop, making installation and maintenance incredibly fast.
Complete IoT Integration
With support for WPA3 Security, Bluetooth Mesh, and Station + SoftAP modes, this module is ready to integrate into secure smart home ecosystems (Tuya, Home Assistant, etc.) right out of the box.
Key Features
-
3-in-1 Design: Integrates Radar, Wi-Fi, and Bluetooth in a single SMD-12 package.
-
Presence Detection: Detects moving, micro-moving (twitching), and static human bodies up to 5 meters.
-
Wireless Config: Adjust radar sensitivity and range wirelessly via Wi-Fi or BLE.
-
High Performance: 32-bit RISC CPU with 276KB RAM for edge computing tasks.
-
Robust Security: Supports Secure Startup and WPA3 encryption.
-
Wide Coverage: ±60° large detection angle.
Technical Specifications
| Feature | Specification |
| Model | RD-01 |
| Radar Chip | S3KM111L (FMCW) |
| Connectivity Chip | BL602 (32-bit RISC) |
| Wireless | Wi-Fi 802.11 b/g/n + BLE 5.0 / Mesh |
| Frequency | 24 GHz (ISM Band) |
| Max Range | 5 Meters |
| Flash / RAM | 276KB RAM |
| Security | WPA3, ECC-256 |
| Interface | UART, SPI, I2C, PWM, ADC (via BL602) |
| Dimensions | SMD-12 Package |
Typical Application Scenarios
-
Smart Security: A motion sensor that connects directly to your Wi-Fi router to send alerts.
-
Elderly Care: Monitors presence and inactivity without cameras, preserving privacy.
-
Smart Lighting: Wireless light bulbs that turn on when you enter and stay on while you read.
-
Advertising: Screens that wake up and download new content via Wi-Fi when a person is detected.
Please download the datasheet here.
Important Product Disclaimer
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product images are shown for illustrative purposes only and may differ from the actual product.
Note
Images are for representation only. The actual product may slightly vary in appearance.
Related Radar and UWB Products
Compare this module with related radar sensors, mmWave modules and development boards available from Robosap.
- Ai-Thinker Rd-03H 24GHz Human Presence Radar Sensor – Up to 10m
- Ai-Thinker RD-60 60GHz FMCW mmWave Radar Module with BLE 5.3
- Browse all Radar and UWB modules
Downloads and Documentation
Use these manufacturer or reference documents to verify the exact specifications, pin details, firmware support and integration requirements before designing your system.
Documents may be updated by the manufacturer. Always confirm critical electrical and mechanical details with the latest official documentation before production use.
Frequently Asked Questions
1. What is the Ai-Thinker RD-01?
The RD-01 is a 24GHz radar module combining human presence detection with Wi-Fi and Bluetooth BLE 5.0 connectivity.
2. What frequency does the RD-01 use?
It operates at 24GHz in the ISM band.
3. What is the maximum detection range?
The specified maximum detection range is approximately 5 meters.
4. Can it detect stationary people?
Yes. The module is designed to detect moving, micro-moving, and static human presence.
5. Does it have Wi-Fi?
Yes. It supports Wi-Fi 802.11 b/g/n.
6. Does it support Bluetooth?
Yes. It supports Bluetooth Low Energy 5.0 and Bluetooth Mesh.
7. Can the radar parameters be configured wirelessly?
Yes. Detection range, sensitivity, and delay parameters can be adjusted through Wi-Fi or BLE.
8. Does it require an external microcontroller?
The RD-01 integrates radar sensing and connectivity processing, allowing it to function as a standalone IoT sensing node.
9. What interfaces are available?
The module provides UART, SPI, I2C, PWM, and ADC interfaces through the BL602 connectivity chipset.
10. What security features does it support?
It supports WPA3, ECC-256, and secure startup according to the supplied specifications.
11. What are the main applications?
It is suitable for smart security, elderly-care monitoring, smart lighting, presence detection, and IoT devices.
12. Can it be used for smart-home systems?
Yes. Its Wi-Fi and Bluetooth connectivity makes it suitable for integration into smart-home and IoT systems.
