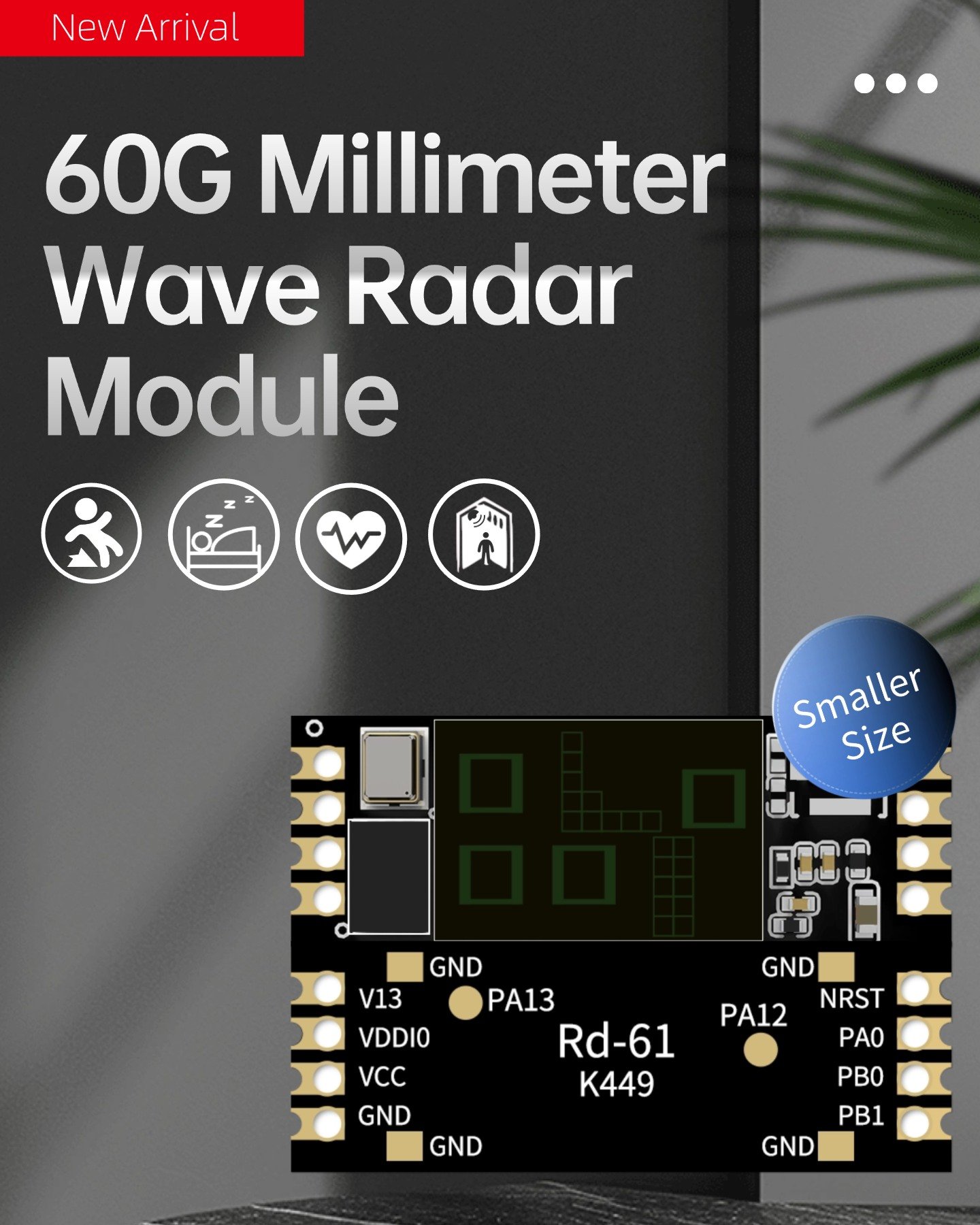

Ai-Thinker Rd-61 60GHz FMCW mmWave Radar Sensor Module

he Ai-Thinker Rd-61 is a high-performance, ultra-low-power AiP (Antenna in Package) radar module operating on the 60GHz FMCW carrier. Developed for advanced AIoT applications, this module integrates a 1T3R radar chip and internal Flash, enabling a complete “plug-and-play” sensing solution once powered. It is designed to meet stringent power requirements through four management modes: power off, standby, idle, and working.

Precision Sensing & Wide Coverage The Rd-61 utilizes a continuous sweep bandwidth of 6GHz (58G~64GHz) to achieve high-precision detection of both human movement and micro-motion (breathing/heartbeat). With a massive 120° Horizontal and Vertical Field of View (FOV), it provides broad spatial coverage, detecting targets from as close as 0.01 meters up to a maximum range of 8 meters.

Advanced Hardware Architecture The module is powered by a 32-bit RISC-V CPU (up to 128MHz) and a dedicated Hardware Accelerator (HWA) optimized for radar signal processing tasks like FFT and CFAR. This architecture ensures rapid processing for real-time target perception and location without overwhelming external controllers.

Key Features

• Highly Integrated: Single-chip SoC architecture including RF transceiver, baseband, and power management .

• Flexible Antenna Config: Supports 1T1R, 1T2R, or 1T3R modes to balance performance and power .

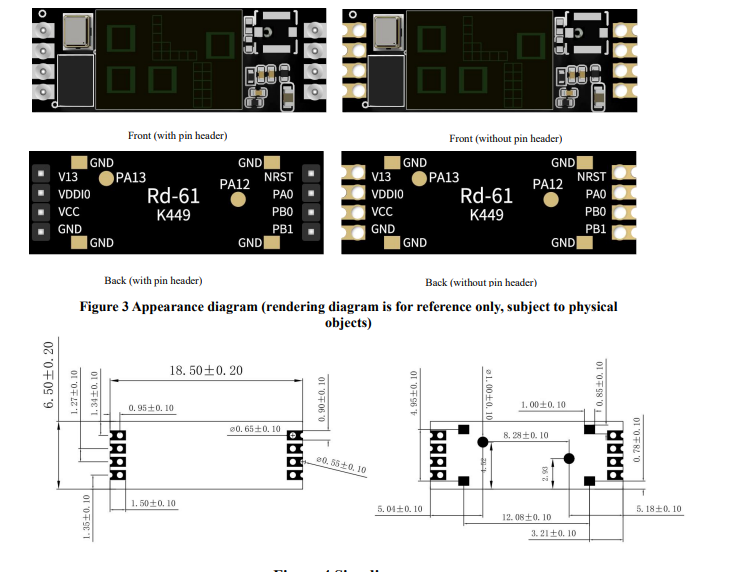

• Ultra-Compact Form Factor: Measuring just 18.5 x 6.5mm, it fits easily into small wearables or sleek appliances .

• Dual Communication: Interfaces via UART (up to 3Mbps) or IIC for easy data acquisition .

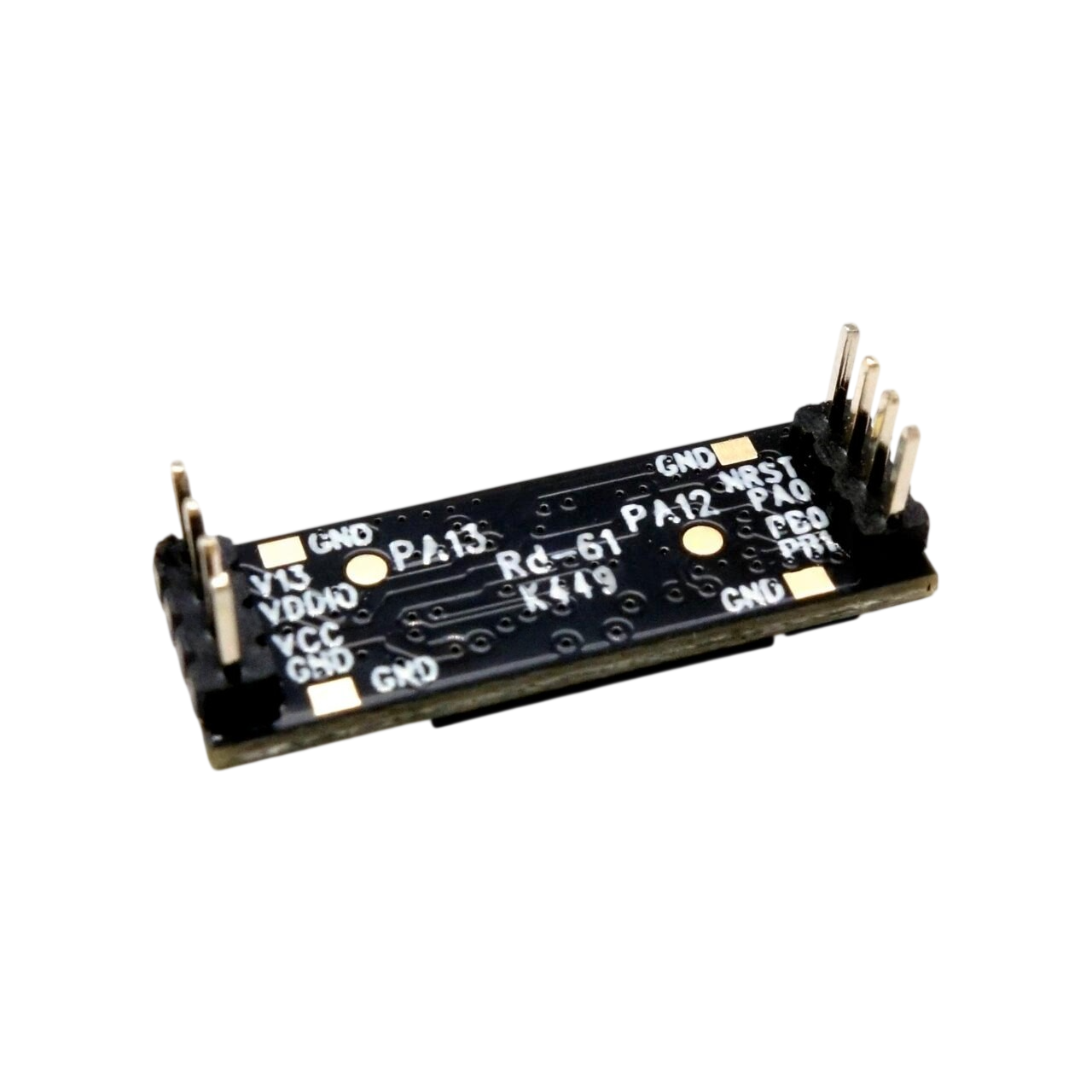

• Versatile Mounting: Compatible with both SMD and 1.27mm DIP header interfaces .

Technical Specifications

Typical Application Scenarios

• Smart Home & Health: Human presence detection, breathing/heartbeat monitoring, and gesture recognition .

• Intelligent Appliances: Smart air conditioners, refrigerators, and televisions that react to user presence .

• Security & Surveillance: Integrated into web cameras and video doorbells for high-sensitivity motion triggering .

• Human Analytics: Accurate tracking and counting of people in retail or office environments .

Resources

For datasheet and other techical Details Click here

 Package Includes

• 1 x Ai-Thinker Rd-61 60GHz mmWave Radar Module



For other Radar Sensor click here

Important Product Disclaimer

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product images are shown for illustrative purposes only and may differ from the actual product.

Note

Installation Requirements: To ensure optimal performance, avoid placing metal objects or high-frequency devices near the on-board antenna. Ensure the radar is mounted firmly, as vibrations or shaking can negatively affect detection results. For ultra-low power consumption, providing an external 1.3V supply to the V13 pin is recommended.
