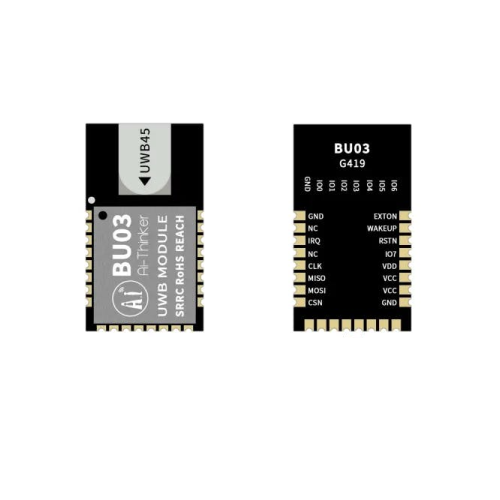

Ai-Thinker BU03 UWB Positioning Module

The Ai-Thinker BU03 UWB Positioning Module is a compact Ultra-Wideband (UWB) module designed for high-precision ranging, positioning, and wireless data communication. Based on the Decawave DW3000 series, the BU03 integrates an onboard ceramic antenna, RF circuitry, and power-management functions, making it easier to incorporate UWB positioning into custom electronic products without requiring a separate RF antenna design.

The module supports Two-Way Ranging (TWR), TDOA, and PDOA positioning schemes, with a manufacturer-stated positioning accuracy of up to 10 cm under suitable conditions and configurations. It supports UWB data rates of 850 Kbps and 6.8 Mbps, making it suitable for applications that require accurate location information along with wireless data transmission.

High-Precision UWB Positioning

UWB technology enables devices to determine relative distance and position using very short-duration radio pulses. The BU03 can be used as part of a UWB positioning system consisting of tags, anchors, and suitable RTLS infrastructure.

The manufacturer specifies positioning accuracy of up to 10 cm, although actual field accuracy depends on factors such as antenna orientation, installation, calibration, line of sight, reflections, interference, firmware, and the overall positioning-system design.

Multiple Positioning Methods

The BU03 supports several positioning approaches, providing flexibility for different RTLS architectures:

• Two-Way Ranging (TWR)
• Time Difference of Arrival (TDOA)
• Phase Difference of Arrival (PDOA)

This makes the module suitable for both direct ranging applications and larger positioning infrastructures. Ai-Thinker’s documentation also provides BU03 firmware and development resources for TWR and PDOA applications.

Integrated Ceramic Antenna

The BU03 includes an onboard ceramic antenna, RF circuitry, and power-management functions. This integrated approach simplifies hardware development because designers do not need to create a separate UWB RF section for basic module integration.

The module supports UWB Channel 5 and Channel 9, with center frequencies of approximately 6489.5 MHz and 7987.2 MHz, respectively.

High-Speed UWB Data Communication

The module supports two UWB data rates:

• 850 Kbps
• 6.8 Mbps

This allows the BU03 to be used not only for positioning and ranging but also for suitable wireless data-transfer applications.

SPI Interface and GPIO

The BU03 communicates with a host controller through an SPI interface and provides 9 available GPIOs. This allows it to be integrated with microcontrollers and embedded systems for custom UWB applications.

The module can therefore be incorporated into custom boards and embedded products where a host microcontroller manages the application logic and UWB communication.

Hardware AES-256 Security

For applications where wireless communication security is important, the BU03 includes hardware AES-256 encryption support. This provides hardware-assisted security capabilities for suitable application designs.

Low-Power Operation

The BU03 supports low-power operation and has a manufacturer-specified sleep-mode power consumption of less than 1 µA. This makes it suitable for battery-powered designs and applications where devices spend significant periods in low-power states.

Ai-Thinker specifically lists the module as suitable for button-battery solutions.

The actual battery life of a complete product depends on operating mode, ranging frequency, transmit power, host-controller consumption, and other system factors.

Programmable Transmit Power

The BU03 provides programmable transmit-power adjustment, allowing developers to configure the RF transmission according to their application requirements and system design.

Proper configuration should follow the manufacturer’s RF, regulatory, and firmware guidelines.

Compact SMD Package

The BU03 uses an SMD-24 package and measures approximately 23.0 × 13.0 × 2.5 mm, making it suitable for compact embedded products and custom PCB designs.

Its small form factor makes it useful for portable tags, tracking devices, sensors, and other applications where PCB space is limited.

RTLS and High-Density Positioning

The BU03 can be incorporated into Real-Time Location System (RTLS) infrastructure. Multiple UWB nodes can be deployed as anchors or tags depending on the system architecture.

The manufacturer highlights support for high label density, making the module suitable for environments where many tracked devices may operate within the same positioning system.

Applications

The BU03 is suitable for a wide range of precise positioning and ranging applications, including:

• Indoor positioning systems
• Real-Time Location Systems (RTLS)
• Warehouse asset positioning
• Hospital staff and equipment location
• Industrial asset tracking
• Mine-shaft positioning
• Personnel tracking
• Robotics and autonomous systems
• Indoor navigation
• Smart-factory applications
• Precision ranging systems
• Location-aware IoT devices
• UWB tags and anchors
• Research and development projects

Key Features

• Ultra-Wideband (UWB) positioning module
• Based on DW3000 series technology
• Integrated ceramic antenna
• Integrated RF circuitry and power management
• Supports IEEE 802.15.4-2015 UWB
• Supports IEEE 802.15.4z BPRF mode
• Supports Channel 5 and Channel 9
• Supports 850 Kbps and 6.8 Mbps
• Supports TWR, TDOA, and PDOA
• Manufacturer-stated positioning accuracy up to 10 cm
• SPI host interface
• 9 GPIOs
• Hardware AES-256
• Programmable transmit power
• Sleep consumption below 1 µA
• Suitable for compact battery-powered devices

Technical Specifications

*Positioning accuracy is a reference value specified by the manufacturer and depends on system configuration and environmental conditions.

Integration and Development

The BU03 is intended to be integrated into a host electronic system through its SPI interface. Developers can use a suitable microcontroller to configure and communicate with the UWB module.

Ai-Thinker provides documentation and development resources for the BU03, including datasheets, PCB information, firmware resources, AT-command documentation, testing guidance, and positioning-related development materials.

Before designing a production PCB, developers should refer to the latest manufacturer’s documentation for pin assignments, PCB layout requirements, power requirements, firmware compatibility, and RF considerations.

Power Supply Considerations

The module operates from approximately 2.5V to 3.6V, with 3.3V being the typical supply voltage. The manufacturer’s specification also indicates a power-supply capability of at least 200 mA.

A stable and adequately rated power supply should be used, particularly during RF transmission. Power-supply noise and voltage drops can affect wireless performance and system stability.

Package and Handling

The BU03 is an SMD module intended for PCB integration. Proper ESD precautions should be followed when handling the module because the manufacturer’s specification identifies it as an electrostatic-sensitive device.

Important Notes

• The 10 cm positioning accuracy is a reference manufacturer specification, not a guaranteed result in every installation.
• Actual UWB performance depends on antenna orientation, installation, calibration, line-of-sight conditions, reflections, interference, firmware, power supply, and the surrounding environment.
• A complete positioning system may require multiple BU03 modules configured as appropriate tags and anchors.
• The module requires a suitable host controller and SPI connection for integration.
• Power the module within the specified 2.5–3.6V range.
• Use an adequately rated power supply capable of handling RF transmission current.
• Follow appropriate ESD precautions when handling the SMD module.
• Product images are for representation only. PCB markings, antenna appearance, and other physical details may vary between production batches.
• Verify critical electrical, mechanical, firmware, RF, and regulatory requirements using the latest manufacturer documentation before production deployment.
