Ai-Thinker BU03-Kit UWB Development Board

The Ai-Thinker BU03-Kit UWB Development Board is a compact development platform designed for Ultra-Wideband (UWB) positioning, ranging, wireless communication, IoT, robotics, and RTLS applications. It combines the BU03 UWB module based on DW3000 technology with an STM32F103C8T6 microcontroller, providing developers with a convenient platform for developing and testing precise positioning applications.

The integrated BU03 module includes an onboard antenna, RF circuitry, and power-management functions, reducing the complexity of developing a UWB system from individual RF components. The development board provides a practical environment for experimenting with Two-Way Ranging (TWR), Time Difference of Arrival (TDOA), and Phase Difference of Arrival (PDOA) positioning technologies.

With support for data rates up to 6.8 Mbps and manufacturer-stated positioning accuracy of up to 10 cm under suitable conditions, the BU03-Kit is suitable for applications where accurate location and distance information are required.

Integrated STM32F103C8T6 MCU

The BU03-Kit is built around the STM32F103C8T6 microcontroller, which acts as the main processing controller for development and application-level control.

Combining the STM32 MCU with the BU03 UWB module allows developers to create and test complete UWB applications without requiring a separate development controller for basic experimentation.

This makes the board useful for students, engineers, researchers, and makers working on UWB positioning and wireless communication projects.

High-Precision UWB Positioning

The BU03 module supports advanced UWB positioning technologies, including:

• Two-Way Ranging (TWR)
• Time Difference of Arrival (TDOA)
• Phase Difference of Arrival (PDOA)

These technologies can be used to determine distance and position between UWB devices and can form the basis of Real-Time Location Systems (RTLS).

The manufacturer specifies positioning accuracy of up to 10 cm under suitable conditions. Actual results depend on antenna orientation, installation, calibration, line-of-sight conditions, reflections, interference, firmware, and the surrounding environment.

Integrated UWB Antenna and RF Circuitry

The BU03 module includes an integrated antenna, RF circuitry, and power management, simplifying the hardware development process.

This allows developers to focus on application development and positioning algorithms without having to design a complete UWB RF front end from scratch.

The module supports UWB Channels 5 and 9 and complies with relevant IEEE 802.15.4-2015 UWB and IEEE 802.15.4z BPRF mode requirements.

High-Speed Data Communication

The BU03 supports UWB data rates of:

• 850 Kbps
• 6.8 Mbps

This makes the platform useful for applications that require both precise ranging and wireless data transmission.

Integrated MAC and High Tag Density

The UWB module provides integrated MAC support and is designed for systems requiring multiple UWB devices.

Its support for high tag density makes the development board suitable for applications where many devices need to be monitored or located within the same positioning infrastructure.

This can be useful in environments such as warehouses, smart buildings, industrial facilities, and other indoor tracking systems.

Hardware AES-256 Encryption

The BU03 module includes hardware AES-256 encryption support, providing hardware-assisted security for suitable wireless communication applications.

This feature can be useful when developing systems where secure communication and protection of transmitted information are important.

SPI Interface and GPIO

The UWB module provides an SPI interface for communication and includes 9 configurable GPIO pins.

These interfaces allow developers to connect the UWB system with additional sensors, peripherals, indicators, or other electronic components depending on the project requirements.

Low-Power Operation

The BU03 module supports a low-power sleep mode with specified current consumption of less than 1 µA. This makes the technology suitable for applications where energy efficiency is important.

The low-power capability is particularly useful for battery-operated UWB tags, wearable devices, portable IoT products, and coin-cell-powered applications.

Actual power consumption depends on the operating mode, ranging frequency, transmission power, MCU activity, and connected peripherals.

Programmable Transmit Power

The UWB module supports programmable transmit-power adjustment, allowing developers to configure the RF transmission according to application requirements and system conditions.

Transmit-power settings should be selected according to the manufacturer’s specifications and applicable RF regulations.

Development and Prototyping Platform

The BU03-Kit is intended as a development and evaluation platform for engineers and developers experimenting with UWB technology.

It can be used to prototype:

• UWB ranging systems
• Indoor positioning systems
• RTLS networks
• Asset tracking devices
• Robot positioning systems
• Wireless sensor systems
• Smart-home devices
• Wearable location systems

The development board helps users evaluate UWB technology before designing a customized production PCB.

Applications

The Ai-Thinker BU03-Kit can be used for:

• Indoor positioning
• Real-Time Location Systems (RTLS)
• Asset tracking
• Warehouse positioning
• Industrial equipment tracking
• Robotics and autonomous systems
• IoT devices
• Smart home systems
• Wearable devices
• Mobile positioning applications
• Personnel tracking
• Distance measurement
• UWB research and development
• Educational UWB projects

Key Features

• BU03 UWB module based on DW3000 technology
• Integrated STM32F103C8T6 MCU
• Onboard UWB antenna
• Integrated RF circuitry and power management
• Supports TWR, TDOA, and PDOA
• Positioning accuracy up to 10 cm under suitable conditions
• Supports 850 Kbps and 6.8 Mbps
• Supports UWB Channels 5 and 9
• IEEE 802.15.4-2015 UWB compliant
• IEEE 802.15.4z BPRF mode support
• Integrated MAC support
• High tag density support
• Hardware AES-256 encryption
• SPI interface
• 9 configurable GPIOs
• Programmable transmit power
• Sleep current below 1 µA
• Suitable for coin-cell and battery-powered UWB applications

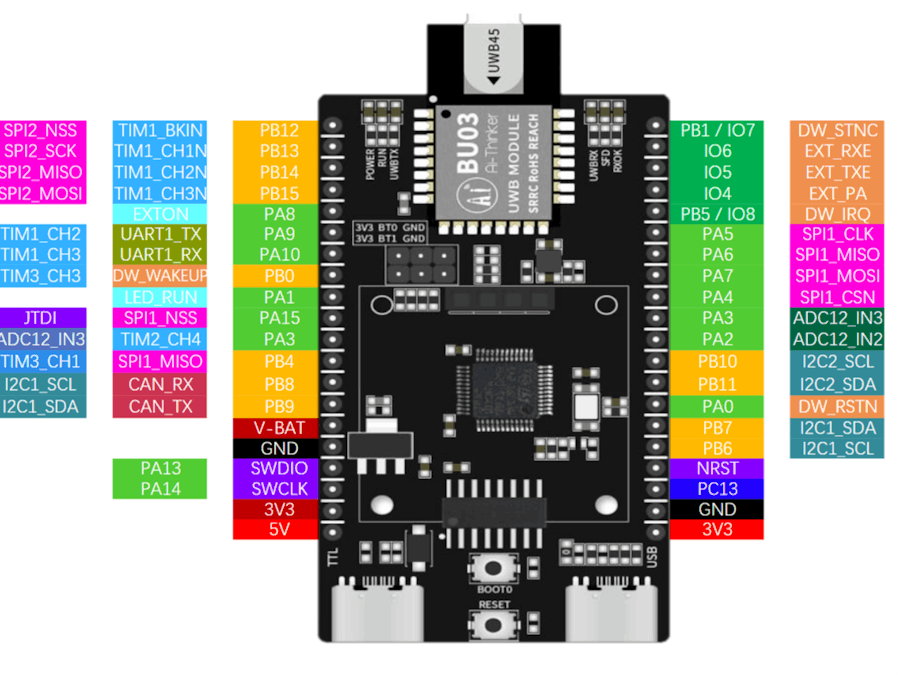

Pin Definitions:

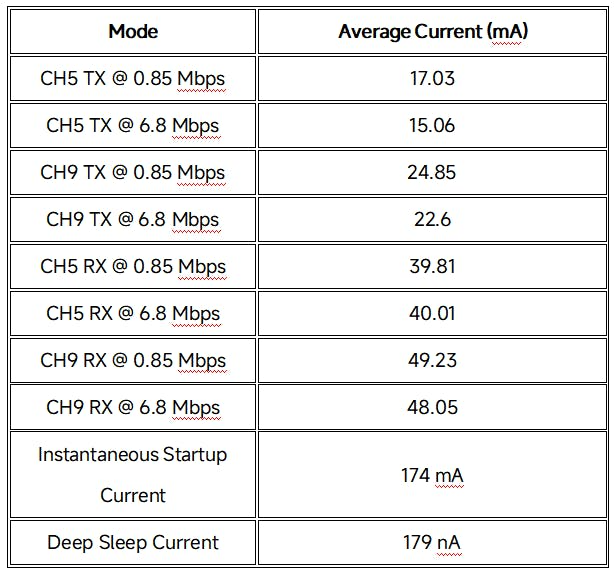

Technical Specifications

*Positioning accuracy is a manufacturer reference value under suitable conditions and is not guaranteed for every environment or installation.

Pinout and Board Information

The development board provides access to the module’s interfaces and connections required for development and testing. The exact pin assignments, power connections, programming interfaces, and board configuration should be verified using the latest manufacturer documentation before connecting external hardware.

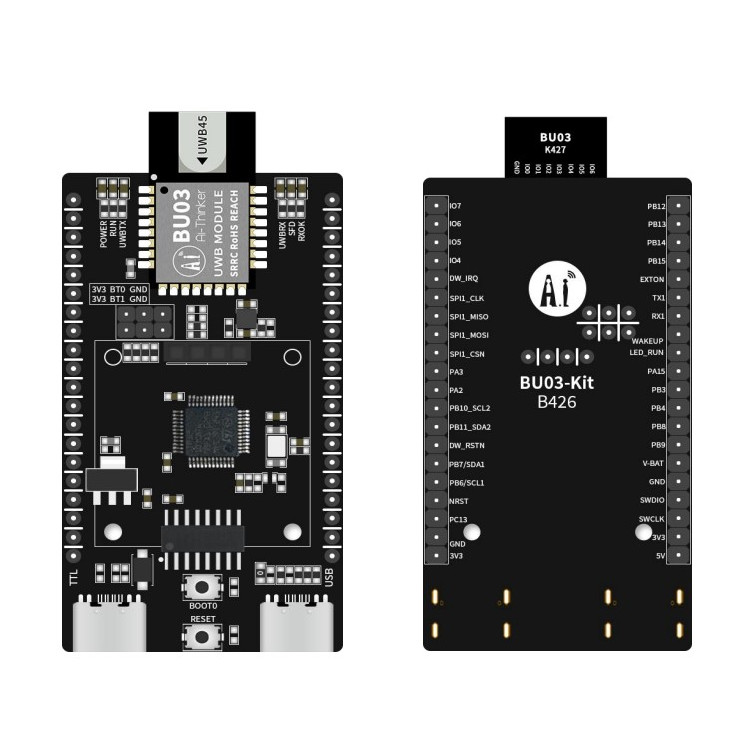

For reference, the product documentation and supplied pinout diagrams can be used to identify the available connections.

Ideal for UWB Development

The BU03-Kit is particularly useful for developers who want to experiment with UWB positioning before developing a custom hardware design.

Instead of working with only the UWB module, the development kit provides an integrated MCU-based platform that can simplify initial testing, firmware development, ranging experiments, and proof-of-concept development.

Package and Integration

The BU03-Kit is a development board intended for evaluation, prototyping, and educational use. Depending on the supplied production batch, connector configuration, headers, and included accessories may vary.

Users should verify the actual package contents before designing a permanent mechanical or electrical installation around the board.

Important Notes

• The 10 cm positioning accuracy is a reference manufacturer specification and depends heavily on the environment and system configuration.
• Actual performance can be affected by antenna orientation, installation height, calibration, reflections, interference, line of sight, firmware, target movement, and surrounding materials.
• A complete RTLS system may require multiple UWB devices configured as suitable anchors and tags.
• Always use the correct power supply and electrical levels specified in the latest manufacturer documentation.
• Avoid connecting external devices without first confirming the relevant pin voltage and electrical specifications.
• Product images are for representation only.
• PCB markings, connectors, antenna appearance, pin headers, component placement, and included accessories may vary between production batches.
• The board should be handled using appropriate ESD precautions.
• Firmware, pin definitions, power requirements, and development procedures may change with manufacturer revisions.
• Always verify critical electrical, mechanical, firmware, RF, and safety specifications using the latest official manufacturer documentation before production use.

Documentation and Resources

For development, integration, and technical verification, refer to the manufacturer’s latest documentation for the BU03-Kit, including the product page, specification sheet, pin definitions, firmware information, and UWB development resources.

Why Choose the BU03-Kit?

The Ai-Thinker BU03-Kit UWB Development Board combines a DW3000-based UWB module with an STM32F103C8T6 microcontroller, providing a convenient platform for developing high-precision ranging and positioning systems.

With support for TWR, TDOA, PDOA, 6.8 Mbps data transmission, integrated antenna and RF circuitry, AES-256 security, SPI, configurable GPIOs, and low-power operation, it is a versatile development platform for IoT, robotics, RTLS, wearables, smart-home systems, and indoor positioning applications.
