WT588D-16P Voice Sound Module – High Quality Audio Player
₹259.60 incl. GST (₹220.00 + GST)

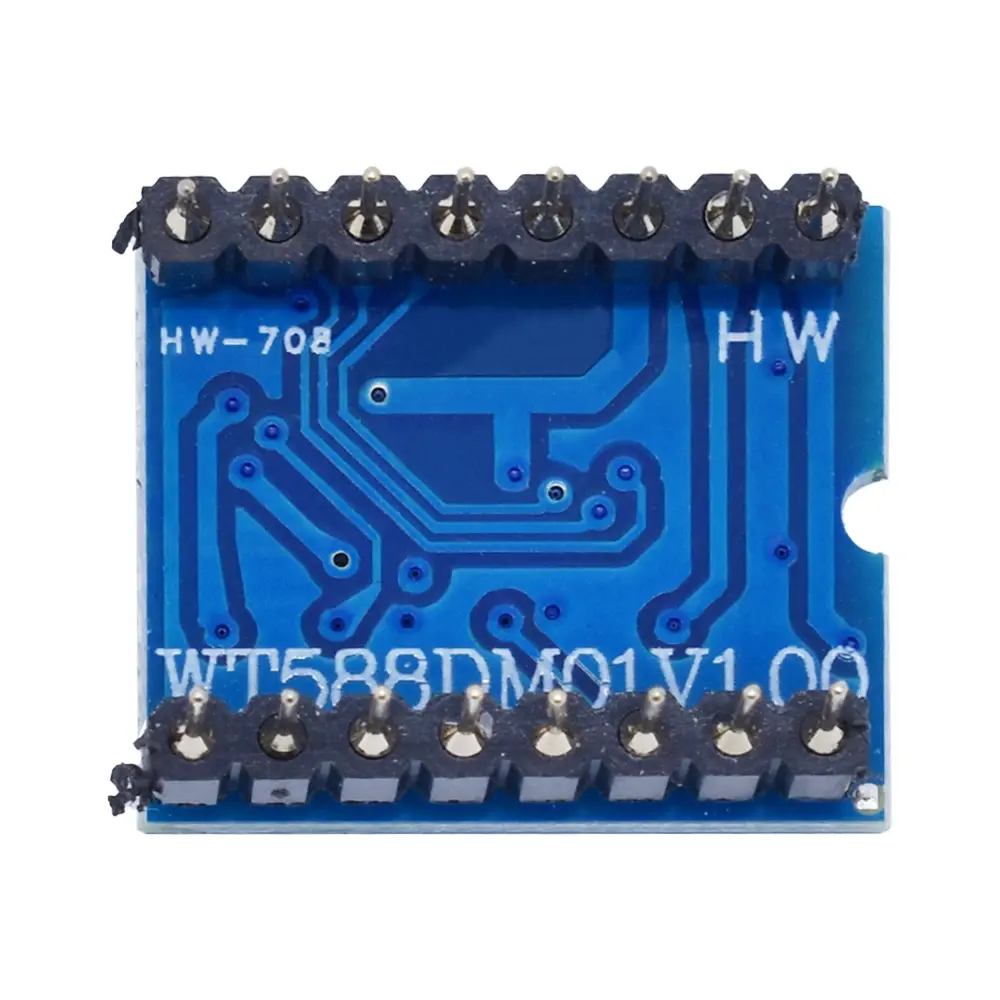

WT588D-16P 16M-Bit Voice Sound Audio Player Module
Product Description
The WT588D-16P Audio Receiver Board is a versatile voice and audio playback module designed to add high-quality voice prompts, announcements, alarms, and sound effects to electronic projects. Based on the WT588D-16P voice chip, it provides 16M-bit (approximately 2MB) memory for storing audio files.
The module supports multiple control methods, including Key Mode, Matrix Key Mode, and 3-wire Serial UART Mode, making it suitable for standalone applications as well as microcontroller-based projects.
High-Fidelity Audio Playback
The module features a built-in 13-bit D/A converter and 12-bit PWM output for audio playback. It can directly drive a small 0.5W/8Ω speaker, making it suitable for compact voice and sound applications without requiring an external amplifier for supported speaker configurations.
It supports WAV audio files with sampling rates from 6kHz to 20kHz, providing flexibility for different voice and sound requirements.
Large Audio Storage
With 16M-bit (approximately 2MB) Flash memory, the module can store multiple voice messages, announcements, sound effects, and other audio files.
Audio content can be customized and updated using a suitable programmer, allowing the module to be adapted for different projects and applications.
Multiple Control Modes
The WT588D-16P supports several methods of triggering audio playback:
Key Mode
Audio files can be triggered using connected push buttons or control keys.
Matrix Key Mode
Multiple keys can be arranged in a matrix configuration to control different audio files.
Serial UART Mode
The module can be controlled through a 3-wire serial interface, allowing microcontrollers such as Arduino and Raspberry Pi to select and play stored audio.
Key Features
- WT588D-16P voice/audio chip
- 16M-bit (approximately 2MB) audio memory
- WAV audio support
- 6kHz–20kHz sampling rate
- 13-bit D/A converter
- 12-bit PWM audio output
- Direct 0.5W/8Ω speaker drive
- Key trigger mode
- Matrix key mode
- 3-wire serial UART control
- 2.8V–5.5V operating voltage
- Low standby current
- Suitable for standalone and MCU-controlled projects
Technical Specifications
| Feature | Specification |
|---|---|
| Module Model | WT588D-16P |
| Operating Voltage | DC 2.8V – 5.5V |
| Memory Capacity | 16M bits (~2MB) |
| Audio Output | PWM / DAC |
| Sample Rate | 6kHz – 20kHz |
| Control Interface | 3-Wire Serial / Key Control |
| Standby Current | <10µA |
| Speaker Support | 0.5W / 8Ω |
| Temperature Range | -20°C to +70°C |
| Package Format | DIP-16 Footprint |
Working Principle
The WT588D-16P stores preloaded audio data in its internal memory. When a key, matrix input, or serial command is received, the onboard voice chip processes the selected audio file and outputs the corresponding sound through its PWM or DAC audio interface.
A compatible speaker can be connected to the audio output for direct playback, while the serial interface can be used for controlled audio playback from a microcontroller.
Typical Application Scenarios
Robotics
Add voice prompts such as “System Ready,” “Obstacle Detected,” or other custom announcements to robots.
Security Systems
Useful for voice alarms, warning messages, and security notifications.
Automotive Projects
Can be used for reverse warnings, vehicle announcements, and custom audio alerts.
Smart Home
Suitable for doorbell sounds, appliance status messages, and voice notifications.
Toys
Can provide interactive sound effects, voice messages, and programmed audio responses.
Applications
- Voice-enabled robotics
- Audio announcement systems
- Voice alarms
- Smart home devices
- Doorbells
- Automotive warning systems
- Interactive toys
- Voice prompts
- Sound effect systems
- DIY audio projects
- Arduino projects
- Raspberry Pi projects
- Embedded audio systems
- Educational electronics
Package Includes
- 1 × WT588D-16P Voice Sound Audio Player Module
Product Disclaimer
Product information provided on our website may not be entirely accurate as specifications can vary between manufacturers, suppliers, and production batches. Please verify the actual product specifications before using the module in critical applications.
Product images are for illustrative purposes only and may differ from the actual product in colour, component placement, connector design, or other visual details.
Important Note
Speaker Connection
The module can directly drive a suitable 0.5W/8Ω speaker according to the supplied specifications. Ensure that the speaker and wiring are appropriate for the module’s audio output.
Audio Programming
Audio files need to be compiled and downloaded to the module using a compatible programmer, which is not included in the package.
Power Supply
The module operates from 2.8V–5.5V DC. Always use a suitable regulated power supply and verify the polarity before connecting the module.
Recommended Related Products
Explore relevant alternatives and complementary products selected from the full Robosap catalogue.
Frequently Asked Questions
1. What is the WT588D-16P module?
It is a voice and audio playback module designed to store and play voice messages, announcements, and sound effects.
2. How much audio memory does it have?
The module provides 16M-bit memory, equivalent to approximately 2MB.
3. What audio format does it support?
The supplied specifications list WAV audio support.
4. What sampling rates are supported?
The specified sampling rate range is 6kHz to 20kHz.
5. Can it drive a speaker directly?
Yes. It can directly drive a suitable 0.5W/8Ω speaker according to the supplied specifications.
6. Can I control it using Arduino?
Yes. The module supports 3-wire serial control, allowing integration with Arduino and other compatible microcontrollers.
7. Can I use it with Raspberry Pi?
Yes. It can be controlled through its supported serial interface with suitable wiring and signal levels.
8. What control modes are available?
The module supports Key Mode, Matrix Key Mode, and 3-wire Serial UART Mode.
9. What voltage does the module require?
The specified operating voltage is 2.8V–5.5V DC.
10. Is a programmer included?
No. A compatible programmer required for customizing or downloading audio files is sold separately.
11. What is the standby current?
The specified standby current is less than 10µA.
12. What is included in the package?
The package includes 1 × WT588D-16P Voice Sound Audio Player Module.Only logged in customers who have purchased this product may leave a review.
