Side Shaft Motor Clamp for Johnson/Side Shaft Gear Motors
₹29.50 incl. GST (₹25.00 + GST)
The L Clamp for Side Shaft Motors is a durable metal mounting bracket designed for Side Shaft and Johnson Gear Motors. Its 6-hole base provides strong and stable motor mounting, helping maintain proper wheel alignment under vibration and high torque. Ideal for 2WD/4WD robots, all-terrain vehicles, combat robots, and DIY robotics projects.

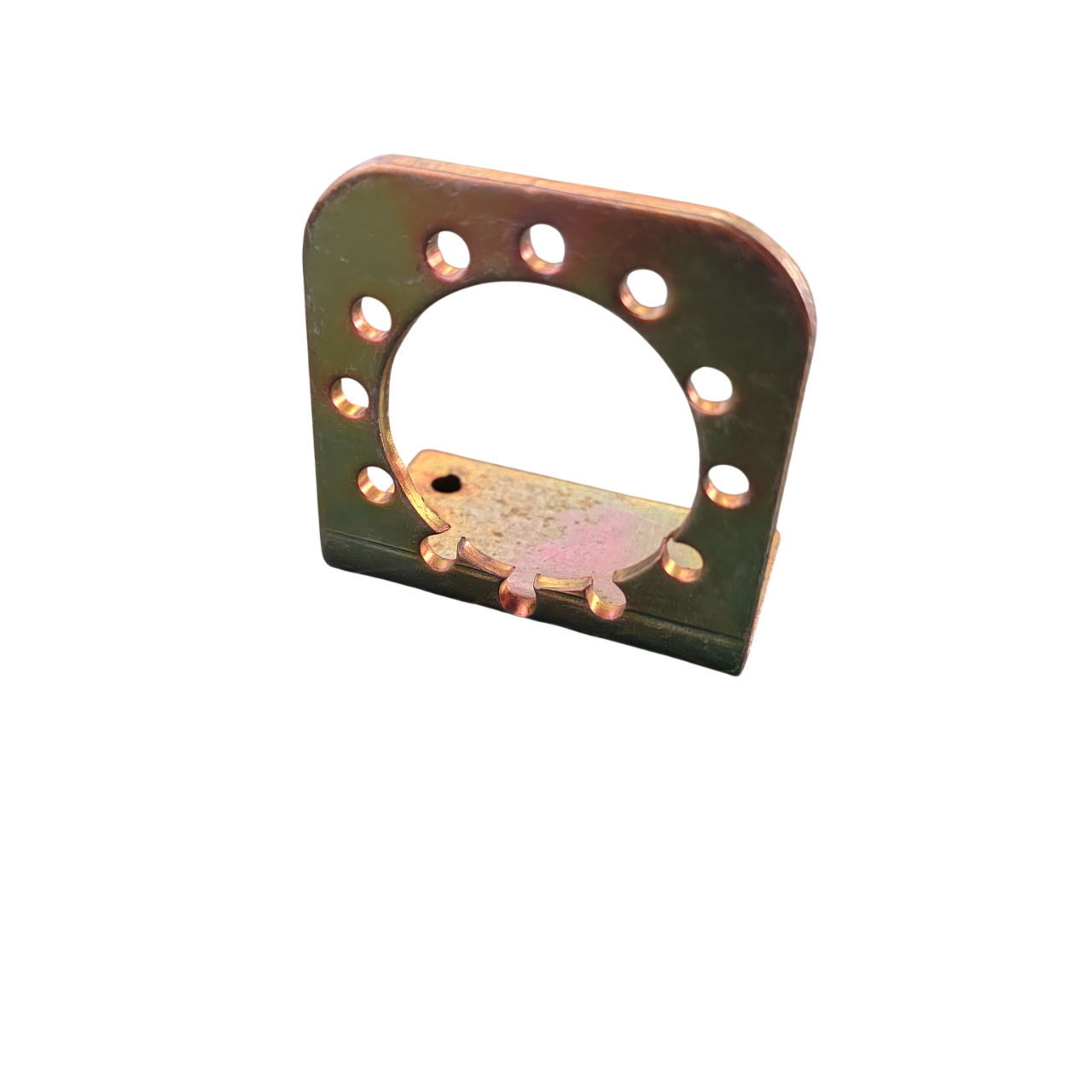

L Clamp for Side Shaft Motors
Product Description
The L Clamp for Side Shaft Motors is a durable metal mounting bracket designed to securely attach off-centered side shaft motors and Johnson Gear Motors to robot chassis and mechanical platforms. Its strong construction provides a stable mounting solution for high-torque robotics, automation, and DIY mobile robot applications.
The L-shaped design allows motors to be mounted securely on flat chassis surfaces while helping maintain proper wheel and shaft alignment.
Maximum Stability
The bracket features 6 mounting holes on the base, providing multiple fixing points to distribute the motor load across the chassis. This helps reduce bracket movement, twisting, and loosening during vibration, high torque, rough terrain, or impact.
Universal Gearbox Compatibility
The clamp is designed for gearboxes commonly used with Side Shaft DC Motors and Johnson Gear Motors. The motor face sits against the bracket to provide a stable mounting position for drive systems.
Durable Metal Construction
Made from Mild Steel (MS) with an anti-rust finish, the bracket is designed to withstand mechanical loads and vibrations commonly encountered in robotics and automation projects.
Key Features
- Designed for Side Shaft / Off-Centered Motors
- Compatible with Johnson Gear Motors
- Strong Mild Steel construction
- L-shaped mounting design
- 6 base mounting holes
- Standard motor mounting holes
- Helps maintain motor and wheel alignment
- Suitable for high-torque applications
- Anti-rust black/zinc finish
- Easy to install
Technical Specifications
| Feature | Specification |
|---|---|
| Material | Mild Steel (MS) |
| Shape | L-Type Bracket |
| Compatibility | Side Shaft DC Motors & Johnson Gear Motors |
| Chassis Mounting | 6 Holes on Base |
| Motor Mounting | Standard Side Shaft Gearbox Face Holes |
| Finish | Anti-Rust Coating (Black/Zinc) |
| Screw Compatibility | M3/M4 Depending on Stock |
Typical Application Scenarios
Mobile Robotics
Suitable for 2WD, 4WD, and 6WD robot platforms using side-shaft or Johnson gear motors.
All-Terrain Robots
Provides a secure motor mounting solution for rough-terrain and outdoor robotic platforms.
Combat Robotics
The multiple mounting holes help provide additional mechanical stability for robots exposed to vibration and impact.
Industrial Prototypes
Suitable for securely mounting motors in conveyors, lifting mechanisms, and other mechanical prototypes.
Custom Chassis
Useful for building custom robotic vehicles where reliable motor positioning and wheel alignment are important.
Applications
- Mobile robots
- 2WD robot cars
- 4WD robot cars
- 6WD robot platforms
- All-terrain robots
- Combat robots
- Johnson gear motor projects
- Side shaft motor projects
- DIY automation
- Conveyor mechanisms
- Motorized prototypes
- Custom robotic chassis
Package Includes
- 1 × L Clamp for Side Shaft Motors
Product Disclaimer
Product information may vary slightly between manufacturers, suppliers, and production batches. Please verify the actual bracket dimensions, hole spacing, and motor compatibility before installation.
Product images are for illustrative purposes only and may differ from the actual product in colour, finish, dimensions, or other visual details.
Important Note
Motor Compatibility
Before installation, confirm that your motor uses the Side Shaft / off-centered shaft configuration and that the gearbox mounting holes match the bracket.
Screw Selection
The mounting holes are generally compatible with M3/M4 screws, depending on the product version and available stock. Select screws of the correct length to avoid damage to the motor or chassis.
Finish Variation
The actual coating colour or finish may vary between black and zinc depending on availability.
Recommended Related Products
Explore relevant alternatives and complementary products selected from the full Robosap catalogue.
Frequently Asked Questions
1. What is this L Clamp used for?
It is used to securely mount Side Shaft and Johnson Gear Motors to robot chassis and other mechanical platforms.
2. What motors are compatible?
It is designed for Side Shaft DC Motors and Johnson Gear Motors with matching gearbox mounting holes.
3. How many chassis mounting holes are provided?
The base has 6 mounting holes for secure attachment to the chassis.
4. What material is the bracket made from?
It is made from Mild Steel (MS).
5. Is the bracket suitable for high-torque motors?
Yes. Its metal construction and multiple mounting points make it suitable for many high-torque robotics applications.
6. Can it be used for 2WD and 4WD robots?
Yes. It can be used for 2WD, 4WD, and 6WD robotic platforms when the motor and chassis are compatible.
7. What screws can be used?
The mounting holes generally support M3/M4 screws, depending on the exact product version.
8. Does the package include the motor?
No. The package contains only the L Clamp.
9. Does it help with wheel alignment?
Yes. Proper motor mounting helps maintain consistent motor, shaft, and wheel alignment.
10. Can it be used for industrial prototypes?
Yes. It can be used for suitable automation, conveyor, lifting, and mechanical prototype applications.Only logged in customers who have purchased this product may leave a review.
