Oblique U Shape Aluminium Servo Bracket – Multi-Axis Servo Joint Mount
₹187.62 incl GST
Oblique U Shape Aluminium Servo Bracket – Multi-Axis Servo Joint Mount is a lightweight and strong 2mm aluminium bracket designed for standard-sized servo motors. Its angled U-shaped design and multiple mounting holes make it ideal for multi-axis joints, robotic arms, legs, humanoid robots, and custom servo-driven mechanisms.
Product Description

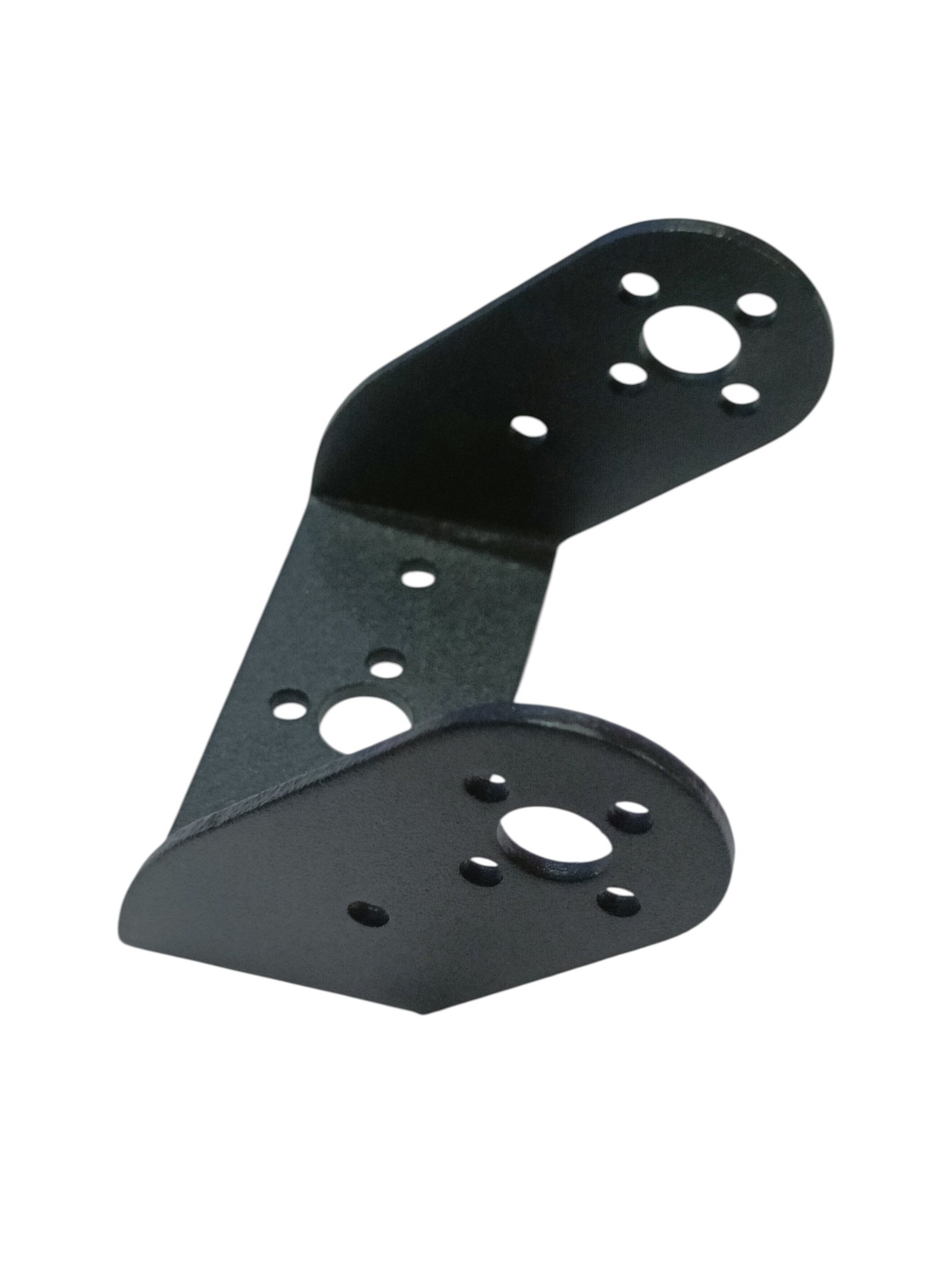

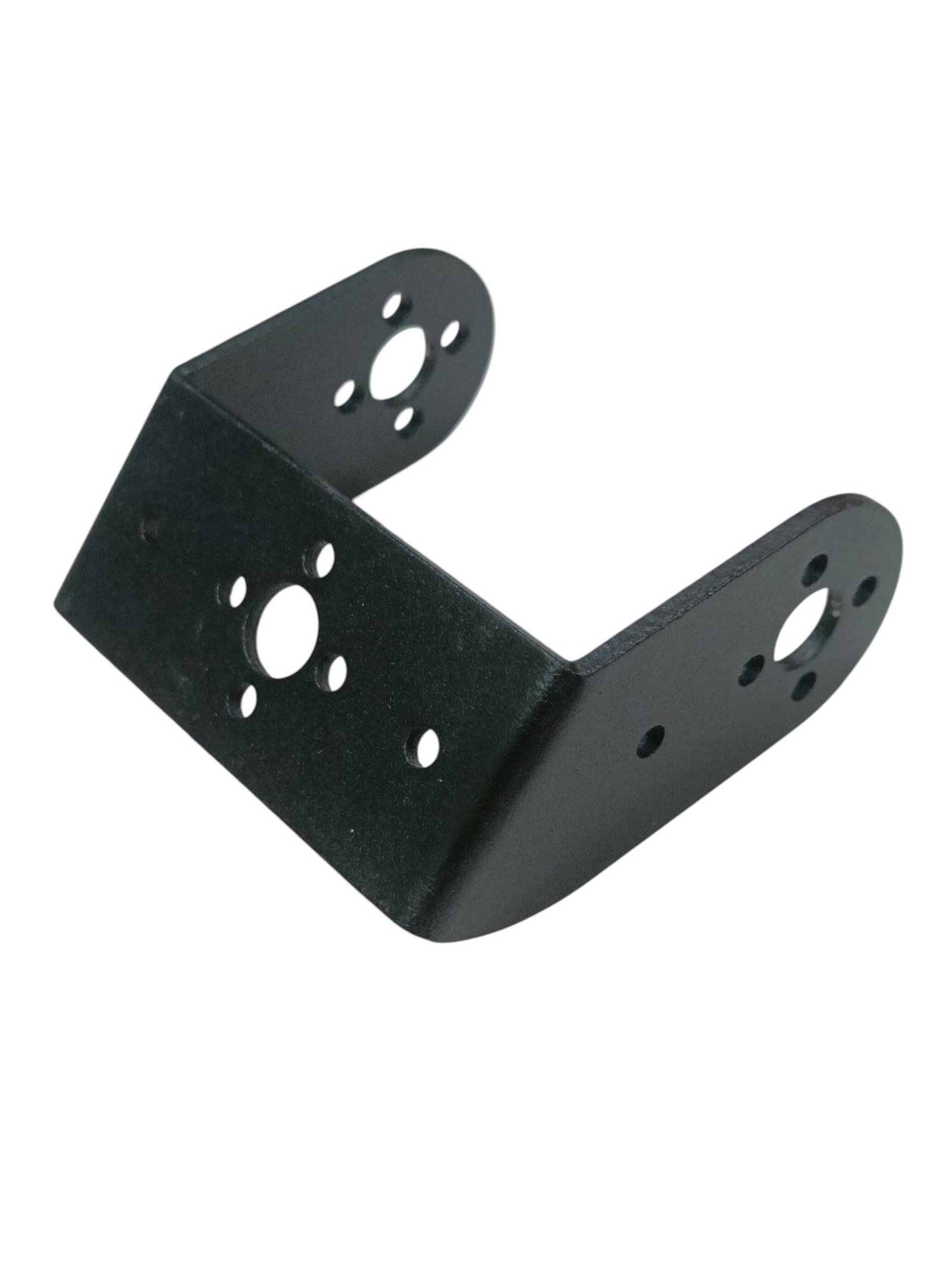

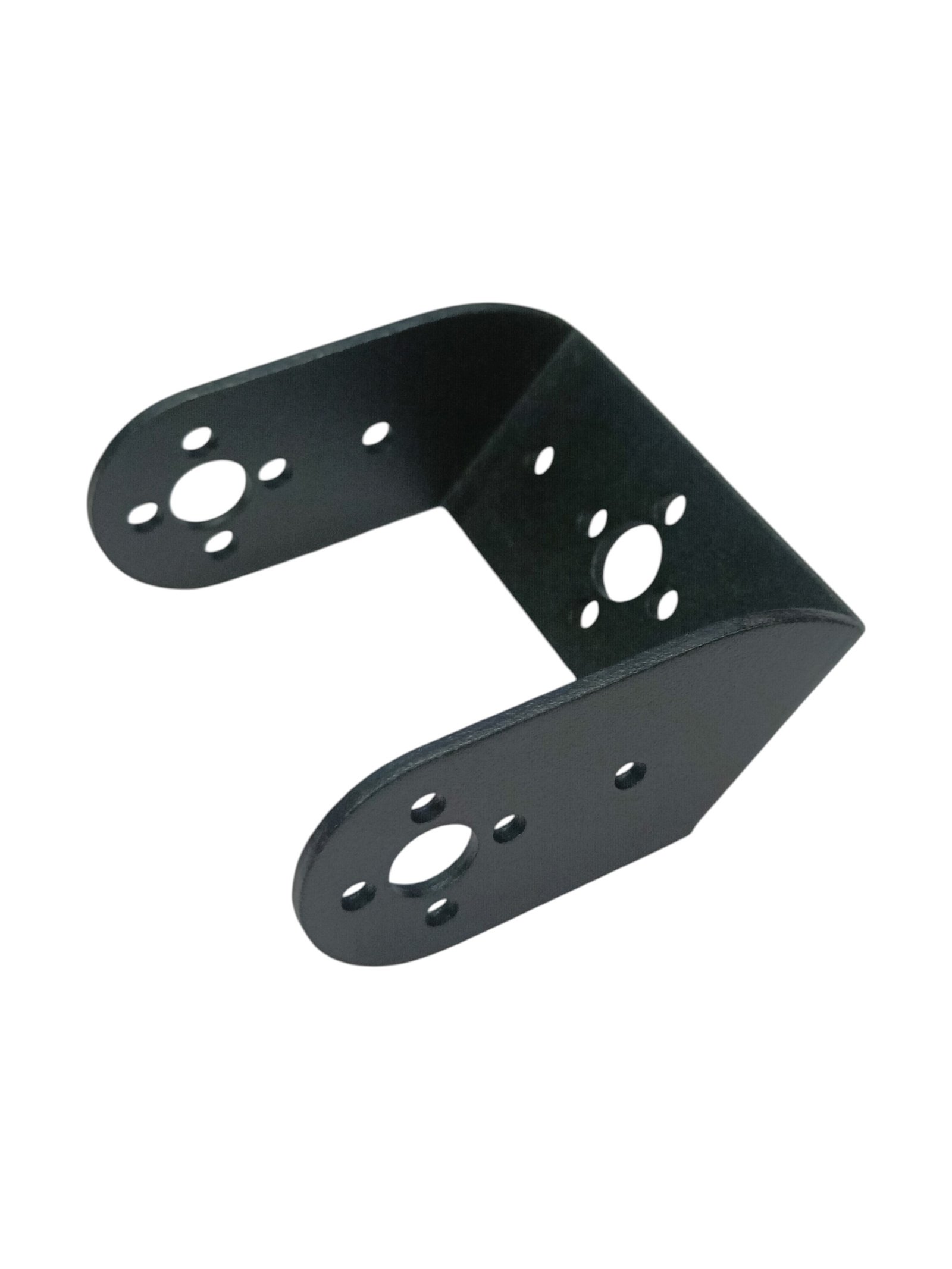

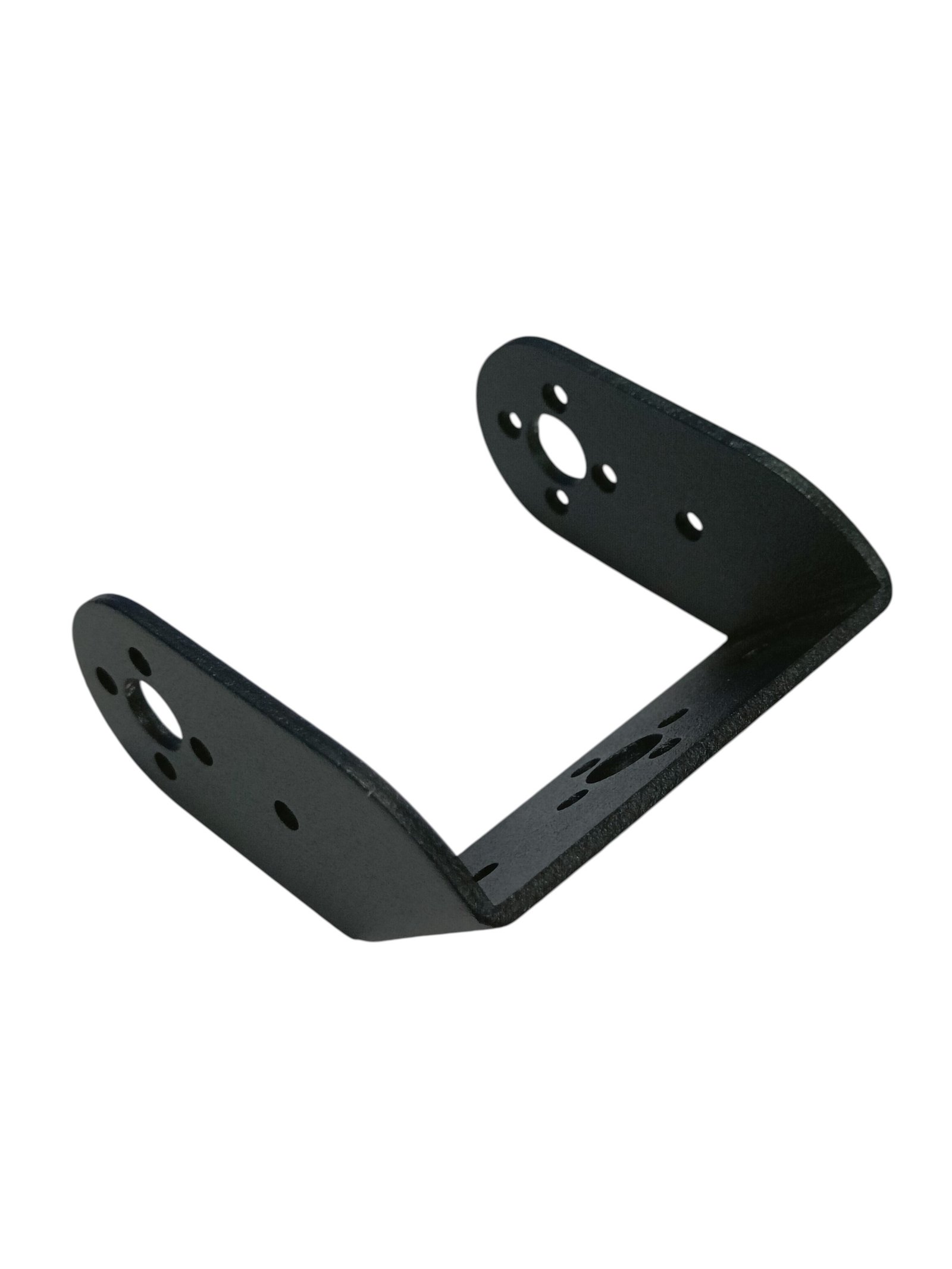

The Oblique U Shape Aluminium Servo Bracket is a lightweight, strong, and versatile mounting bracket designed to fit most standard-sized servo motors. Its oblique U-shaped construction provides a practical mounting solution for creating angled robotic joints, articulated mechanisms, and custom servo-driven structures.
Manufactured from 2mm hard aluminium, the bracket offers a good combination of strength, rigidity, durability, and low weight. Its angled U-shaped design makes it particularly useful for creating custom robotic mechanisms where components need to be positioned at an angle.
Various mounting holes are provided on the bracket to accommodate compatible servo horns, screws, linkages, and other mechanical components. The numerous mounting positions allow users to easily create custom mechanisms using standard servo motors.
The bracket works especially well for building multi-axis joints for robotic arms and legs. It can be combined with other aluminium servo brackets to create articulated structures and multi-degree-of-freedom robotic mechanisms.
The black sandblasting oxidation surface finish provides a clean appearance and a durable surface suitable for regular mechanical use.
Features
- Oblique U-shaped aluminium servo bracket
- Designed for most standard-sized servo motors
- Made from 2mm hard aluminium
- Lightweight yet strong construction
- Angled U-shaped structural design
- Multiple mounting holes
- Suitable for compatible servo horns
- Ideal for multi-axis robotic joints
- Suitable for robot arms and legs
- Useful for articulated robotic mechanisms
- Suitable for creating custom servo mechanisms
- Can be combined with other servo brackets
- Suitable for DIY robotics projects
- Ideal for Arduino and microcontroller-based robots
- Black sandblasting oxidation finish
- Suitable for automation and prototype development
- Compact and versatile mechanical design
Specifications
| Parameter | Specification |
| Product Type | Oblique U Shape Aluminium Servo Bracket |
| Design | Oblique U-Shaped |
| Material | 2mm Hard Aluminium |
| Surface Finish | Sandblasting Oxidation |
| Colour | Black |
| Weight | Approximately 17 g |
| Servo Compatibility | Most Standard-Sized Servos |
| Mounting Type | Mechanical Screw Mounting |
| Mounting Features | Multiple Holes |
| Application | Multi-Axis Joints, Robot Arms and Legs |
Design and Construction
The Oblique U Shape Aluminium Servo Bracket is manufactured from 2mm hard aluminium to provide a strong and rigid mechanical mounting solution while keeping the overall weight low.
Its oblique U-shaped structure provides an angled mounting configuration, making it useful for robotic assemblies where a straight or conventional bracket may not provide the required positioning.
Multiple mounting holes provide flexible installation options for servo motors, servo horns, linkages, and other mechanical components. The various mounting positions allow users to adjust and customize their mechanical assemblies according to their project requirements.
With a weight of approximately 17 g, the bracket provides a lightweight solution for servo-driven mechanisms while maintaining good structural rigidity.
The bracket features a black sandblasting oxidation surface finish for a clean and durable appearance.
Working Principle
The bracket functions as a mechanical mounting and interconnecting component for standard-sized servo motors and other robotic components.
A compatible servo motor can be secured to the bracket using suitable mounting screws. A servo horn, linkage, additional bracket, or other mechanical component can then be connected through the available mounting holes.
The oblique U-shaped structure allows connected components to be positioned at an angle, which can be useful when constructing articulated joints and multi-axis robotic mechanisms.
When the servo rotates, its movement is transferred through the attached servo horn or linkage to the connected mechanical assembly. Multiple brackets and servo motors can be combined to create multi-axis movement in robotic arms, legs, and other articulated structures.
The bracket is a passive mechanical component and does not require electrical power.
Applications
- Multi-axis robotic joints
- Robotic arms
- Robotic legs
- Walking robots
- Humanoid robots
- Biped robots
- DIY robotics projects
- Arduino robot projects
- Servo-controlled mechanisms
- Articulated robot joints
- Angled robotic mechanisms
- Robot arm joints
- Robot leg joints
- Custom servo mechanisms
- Multi-axis mechanisms
- Servo motor mounting
- Mechanical linkages
- RC robotics projects
- Automation projects
- Educational robotics
- Mechanical prototype development
- Custom robot structures
- Embedded robotics systems
Package Includes
- 1 × Oblique U Shape Aluminium Servo Bracket
Product Disclaimer
Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, hole positioning, slot dimensions, or appearance depending on the manufacturing batch.
Servo motor, servo horn, screws, linkages, additional brackets, robot parts, and other components shown in product images are not included unless specifically mentioned in the package contents.
Compatibility with a particular servo depends on the servo’s physical dimensions and mounting-hole arrangement. Please verify the dimensions and mounting pattern before installation.
Related Servo Brackets, Arms and Motors
Explore more components for servo-driven mechanisms in Servo Brackets & Horns, Servo Motors, Servo Drivers & Controllers and Robotic Components.
