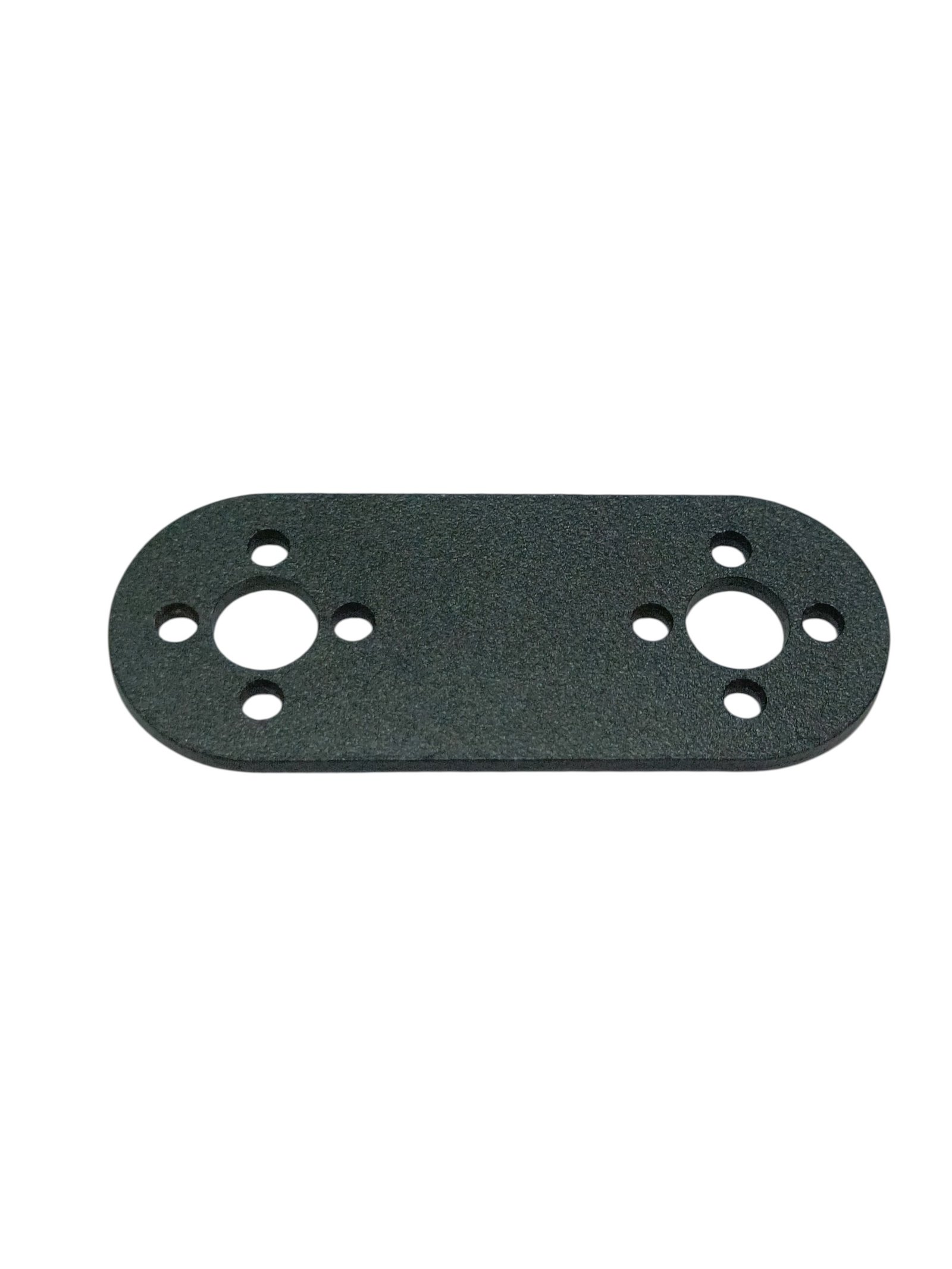

Interconnect Aluminium Servo Bracket – Slotted Straight Board Mount
₹92.04 incl GST
Interconnect Aluminium Servo Bracket – Slotted Straight Board Mount is a lightweight and strong 2mm aluminium bracket designed for standard-sized servo motors. Its straight slotted design and multiple mounting holes provide flexible installation for custom robotic mechanisms, joints, linkages, robot arms, legs, and DIY servo projects.
Product Description
The Interconnect Aluminium Servo Bracket is a lightweight, strong, and versatile straight board mounting bracket designed to fit most standard-sized servo motors. It provides a convenient mechanical mounting solution for connecting servo motors with other components in robotic, RC, automation, and DIY projects.
Manufactured from 2mm hard aluminium, this slotted servo bracket offers a good combination of strength, rigidity, and low weight. Its straight board design makes it suitable for creating custom servo mechanisms, robotic joints, linkages, and articulated structures.
Various mounting holes and slots are provided on the bracket, allowing flexible installation and adjustment. The available holes can be used with compatible servo horns and other mechanical components, making it easier to build custom mechanisms using standard servo motors.
The black sandblasting oxidation surface finish provides a clean appearance and a durable surface suitable for regular mechanical applications.
Features
- Straight board interconnect servo bracket
- Slotted aluminium servo mounting bracket
- Designed for most standard-sized servo motors
- Made from 2mm hard aluminium
- Lightweight yet strong construction
- Multiple mounting holes and slots
- Suitable for compatible servo horns
- Allows flexible mounting and adjustment
- Suitable for custom servo mechanisms
- Compact and practical design
- Black sandblasting oxidation finish
- Suitable for robotic and automation applications
- Ideal for DIY and prototype projects
- Suitable for Arduino and microcontroller-based robotics
- Easy to integrate with standard servo components
Specifications
| Parameter | Specification |
| Product Type | Interconnect Aluminium Servo Bracket |
| Design | Straight Board / Slotted Mount |
| Material | 2mm Hard Aluminium |
| Surface Finish | Sandblasting Oxidation |
| Colour | Black |
| Weight | Approximately 7 g |
| Servo Compatibility | Most Standard-Sized Servos |
| Mounting Type | Mechanical Screw Mounting |
| Mounting Features | Multiple Holes and Slots |

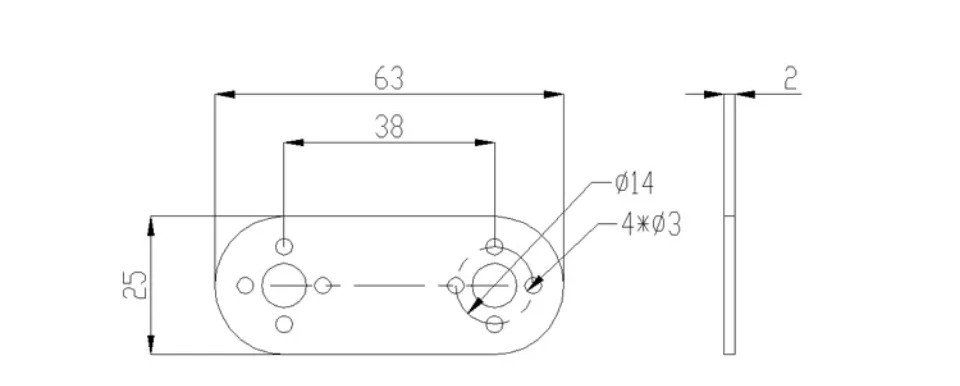

Design and Construction
The Interconnect Aluminium Servo Bracket is manufactured from 2mm hard aluminium to provide a rigid and lightweight mechanical connection for servo-based projects.
The straight board-style construction makes it useful for connecting servo motors to other brackets, plates, linkages, and structural components. Its lightweight construction, with a weight of approximately 7 g, helps reduce the additional load placed on servo-driven mechanisms.
Multiple holes and slots provide mounting flexibility and allow users to select suitable positions according to the requirements of their project. The slotted design can also provide additional adjustment when aligning components during assembly.
The bracket features a black sandblasting oxidation surface finish for a clean and durable appearance.
Working Principle
The bracket functions as a mechanical mounting and interconnecting component between a standard-sized servo motor and another part of a robotic or mechanical assembly.
The servo motor or compatible servo horn can be secured to the bracket using suitable screws through the available mounting holes or slots. The opposite side of the bracket can then be connected to another bracket, plate, linkage, robot structure, or mechanical component.
When the servo rotates, the attached servo horn or linkage transfers the movement to the connected mechanism. This allows the bracket to be used for building articulated joints and custom servo-driven mechanisms.
The bracket is a passive mechanical component and does not require electrical power.
Applications
- DIY robotics projects
- Arduino robot projects
- Servo-controlled mechanisms
- Robotic arms
- Robotic joints
- Robot legs and walking robots
- Humanoid robot projects
- RC projects
- Custom servo mechanisms
- Servo motor mounting
- Mechanical linkages
- Multi-axis robotic assemblies
- Automation projects
- Mechanical prototypes
- Educational robotics
- Custom robot structures
- Embedded robotics systems
Package Includes
- 1 × Interconnect Aluminium Servo Bracket
Product Disclaimer
Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, surface finish, hole positioning, slot dimensions, or appearance depending on the manufacturing batch.
Servo motor, servo horn, screws, linkages, robot parts, and other components shown in product images are not included unless specifically mentioned in the package contents.
Compatibility with a particular servo depends on the servo’s physical dimensions and mounting-hole arrangement. Please verify the dimensions and mounting pattern before installation.
- What is this bracket used for?
- What type of bracket is this?
- What material is the bracket made from?
- What is the weight of the bracket?
- What colour is the bracket?
- Does the bracket have mounting slots?
- Can it be used with servo horns?
- Is it compatible with standard servo motors?
- Can I use this bracket for Arduino projects?
- Can this bracket be used to make custom mechanisms?
- Is the servo motor included?
- Does the bracket require electrical power?
- Can it be used for robotic arms and legs?
