ESP32 S3-Cam AI Vision Module
₹1,729.88 incl. GST (₹1,466.00 + GST)
ESP32 S3-Cam AI vision module with Wi-Fi image streaming, face and color recognition, IIC interface and expansion board support for robotics and AI projects.

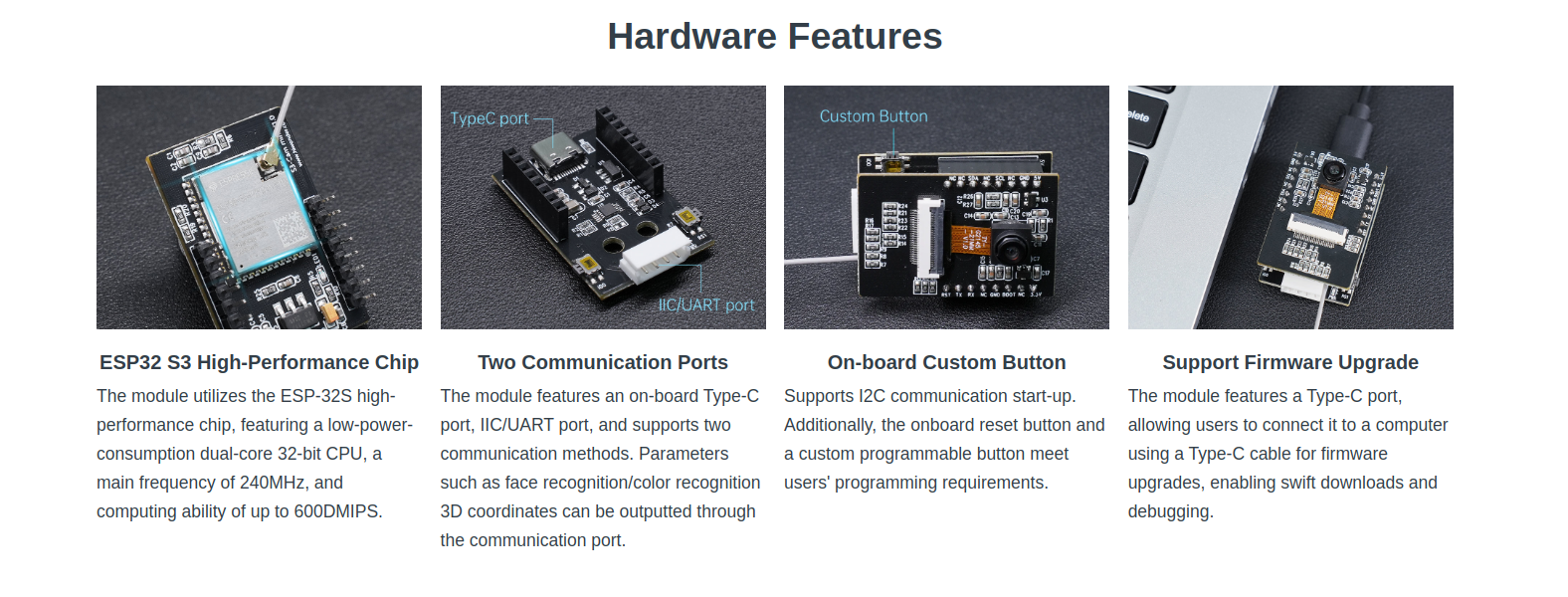

ESP32 S3-Cam AI vision module is compact and cost-effective. Built on the ESP32 platform, it enables WI-FI image transmission, face recognition, color recognition, and other AI functions. This module features an independent expansion board design, along with a Type-C port, IIC port, reset button, user-defined button, and more. The ESP32 S3-Cam is an ideal option for a wide range of robot development projects.
📶 WiFi Wireless Image Transmission

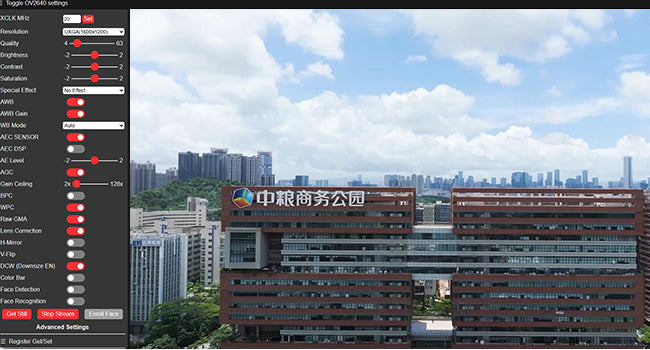

The ESP32 S3-Cam vision module supports both AP and STA working modes. By connecting to the hotspot and accessing the specified website, users can view the high-definition live camera feed.

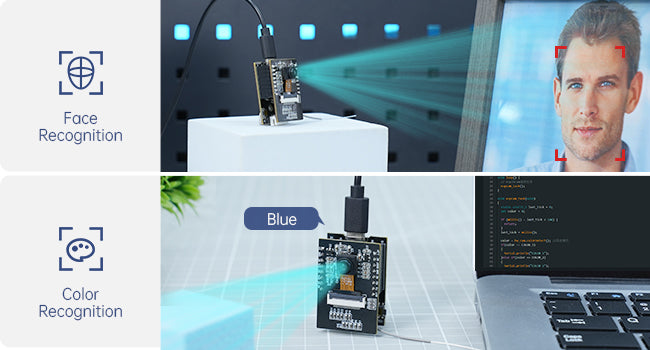

🧠Intelligent Vision Recognition
ESP32 S3-Cam vision module can recognize human faces and colors. Furthermore, it can output three-dimensional coordinates through the IIC/serial port. Additionally, we provide source code routines to facilitate user expansion.
| Parameter | Specification |
|---|---|
| Module Size | 27 × 40.5 × 19 mm |
| Package Type | DIP-16 |
| Power Supply Voltage | 4.75 – 5.25 V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 125°C, >90% RH |
| Bluetooth | Bluetooth 4.2 (BR / EDR + BLE) |
| Wi-Fi | 802.11 b/g/n/e/i |
| Default Serial Baud Rate | 115200 bps |
| Image Output Formats | JPEG (OV2640 only), BMP, GRAY |
| Supported Interfaces | UART, SPI, I²C, PWM |
| TF Card Support | Up to 4 GB |
| IO Pins | 9 GPIOs |
| Operating Frequency | 2400 – 2483.5 MHz |
| Antenna Type | Built-in PCB antenna (2 dB gain) |
For product Files click here
Package Includes
-
1 × ESP32 S3-Cam AI Vision Module
- Plese Note : It doesnt include any additional cables and needs to be purchased seperately.
Important Product Disclaimer
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product images are shown for illustrative purposes only and may differ from the actual product.
Note
Images are for representation only. The actual product may slightly vary in appearance.
Related Products and Categories
Explore relevant products and category pages available from Robosap.
Frequently Asked Questions
What is the ESP32 S3-Cam AI Vision Module?
It is an ESP32-based vision module described for Wi-Fi image transmission, face recognition and colour recognition.
Which wireless operating modes are described?
The current description states that the module supports AP and STA working modes.
How can recognition data be output?
The description states that three-dimensional coordinates can be output through the IIC or serial port.
What is included in the package?
The package includes one ESP32 S3-Cam AI Vision Module. Additional cables are not included and must be purchased separately.
