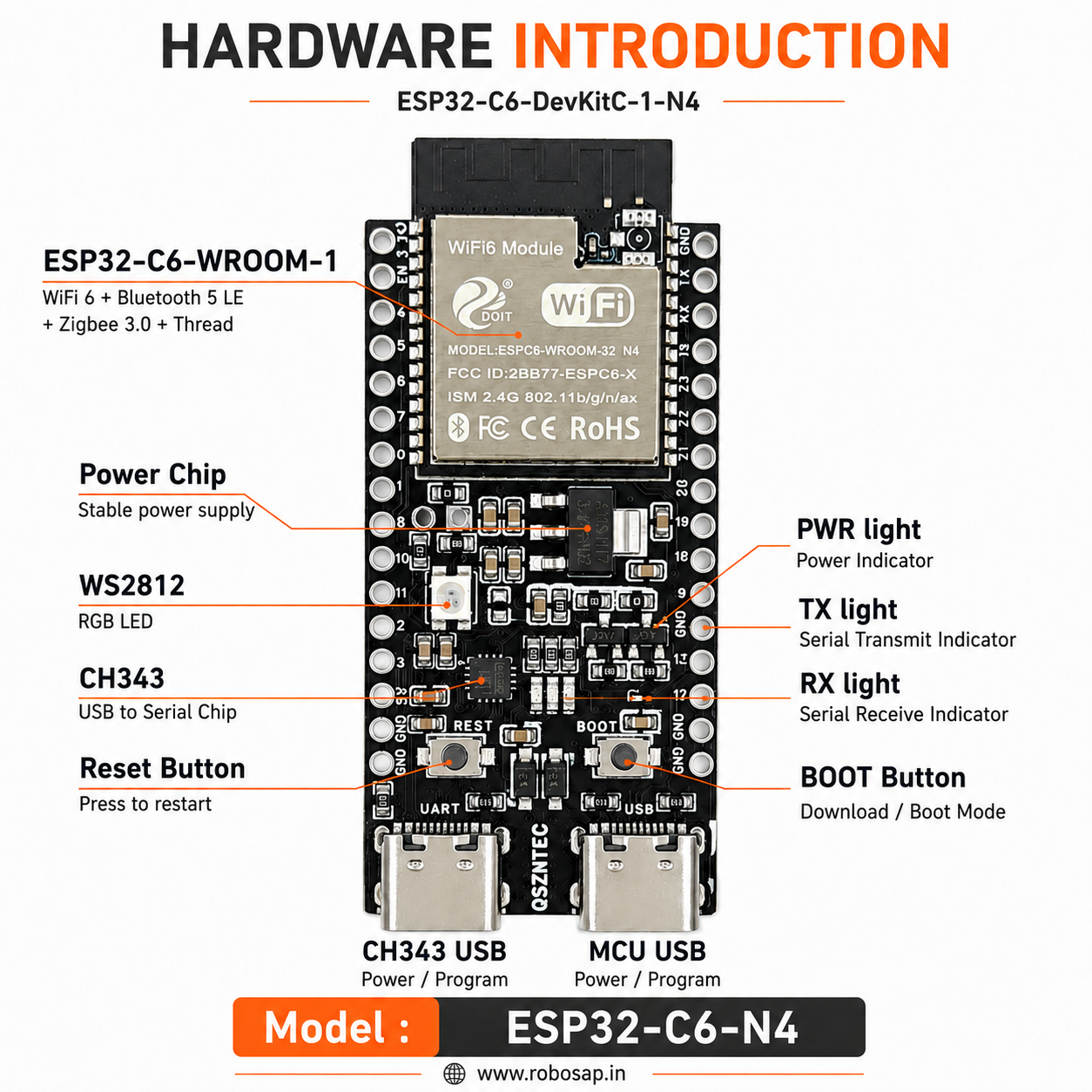

ESP32-C6-DevKitC-1-N4 WiFi 6 BLE Zigbee Thread RISC-V Development Board
₹795.00 excl GST
The ESP32-C6-DevKitC-1-N4 Core Board is a compact RISC-V based development board designed for IoT, wireless automation, smart home, BLE, Zigbee, Thread, and Wi-Fi 6 based projects. It supports 2.4GHz Wi-Fi 6, Bluetooth 5 LE, Zigbee 3.0, and Thread, making it suitable for modern connected device development.
ESP32-C6 DevKitC-1-N4 Wi-Fi 6, BLE & Zigbee Development Board
The ESP32-C6 DevKitC-1-N4 is a multi-protocol RISC-V development board engineered for modern IoT and smart home systems. With native support for Wi-Fi 6, Zigbee 3.0, Thread, and Bluetooth 5 LE, it provides a solid foundation for building Matter-compatible hubs, low-power sensor nodes, and wireless mesh networks.
Product Overview
The ESP32-C6 DevKitC-1-N4 combines versatile wireless connectivity with robust processing power. It features a high-performance 32-bit RISC-V core (160 MHz) and a low-power 20 MHz RISC-V core for deep-sleep battery applications. The board includes multiple GPIOs, a 12-bit ADC, and serial interfaces (SPI, UART, I2C), making it easy to connect sensors, actuators, and external modules. Compatible with both Arduino IDE and ESP-IDF, it is ideal for prototyping and production-ready projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ESP32-C6 DevKitC-1-N4 |
| Processor Architecture | 32-bit RISC-V (160 MHz Main, 20 MHz Low-Power) |
| Wireless Protocols | 2.4GHz Wi-Fi 6, Bluetooth 5 LE, Zigbee 3.0, Thread |
| Memory | 512 KB SRAM, 320 KB ROM (Supports external flash) |
| Hardware Interfaces | SPI, UART, I2C, I2S, PWM, RMT, SDIO |
| Analog / Digital | 12-bit ADC, multiple programmable GPIOs |
| Power Supply | 3.3V / 5V compatible (Includes low-power modes) |
| Development Environments | Arduino IDE, ESP-IDF |
| Ideal Use Cases | Matter & smart home hubs, IoT nodes, battery-operated sensors, RISC-V education |
Ideal Use Cases & Applications
- Matter & Smart Home Hubs: Bridges Zigbee, Thread, and Wi-Fi 6 into a single Matter-compatible network.
- High-Density IoT Deployments: Wi-Fi 6 (OFDMA, Target Wake Time) enables stable connections for dozens of devices simultaneously.
- Battery-Operated Sensor Nodes: Low-power core monitors sensors while minimizing energy consumption, extending battery life.
- Embedded RISC-V Education: A low-cost platform for students and researchers exploring RISC-V and multi-protocol communication.
Package Includes
- 1 × ESP32-C6 DevKitC-1-N4 Development Board
If you are looking for other ESP32 Development Boards
- ESP32-C6 DevKitC User Guide: Espressif Documentation
- ESP32-C6-WROOM-1 Datasheet: PDF Datasheet
Important Product Disclaimer
Specifications, images, and functions are for representation only. Product may differ slightly in layout or onboard components depending on manufacturer batch. Verify exact technical parameters before ordering.
Some of the useful related resources are given below
ESP32-C6 DevKitC-1 User Guide Official Espressif user guide for board overview, getting started, hardware reference, pin layout, power options, and flashing instructions. https://docs.espressif.com/projects/esp-dev-kits/en/latest/esp32c6/esp32-c6-devkitc-1/user_guide.html
ESP32-C6 DevKitC-1 Documentation PDF Downloadable PDF version of Espressif’s ESP32-C6 development board documentation. https://docs.espressif.com/projects/esp-dev-kits/en/latest/esp32c6/esp-dev-kits-en-master-esp32c6.pdf
ESP32-C6-WROOM-1 / ESP32-C6-WROOM-1U Datasheet Official module datasheet covering module specifications, pin definitions, electrical characteristics, RF parameters, and mechanical information. https://www.espressif.com/sites/default/files/documentation/esp32-c6-wroom-1_wroom-1u_datasheet_en.pdf
ESP32-C6 Series SoC Datasheet Official chip-level datasheet for ESP32-C6, including processor, wireless features, memory, peripherals, and electrical specifications. https://www.espressif.com/sites/default/files/documentation/esp32-c6_datasheet_en.pdf
ESP32-C6 Technical Reference Manual Detailed technical manual for developers working with low-level ESP32-C6 peripherals and firmware. https://documentation.espressif.com/esp32-c6_technical_reference_manual_en.pdf
ESP32-C6 DevKitC-1 Schematic v1.4 Official schematic for ESP32-C6 DevKitC-1 hardware revision v1.4. https://dl.espressif.com/dl/schematics/esp32-c6-devkitc-1-schematics_v1.4.pdf
ESP32-C6 DevKitC-1 PCB Layout Official PCB layout reference for the ESP32-C6 DevKitC-1 board. https://dl.espressif.com/dl/schematics/esp32-c6-devkitc-1-pcb-layout_v1.2.pdf
ESP32-C6 DevKitC-1 Board Dimensions Mechanical dimensions PDF for board size and mounting/reference measurements. https://dl.espressif.com/dl/schematics/esp32-c6-devkitc-1-dimensions_v1.2.pdf
ESP-IDF Getting Started Guide for ESP32-C6 Official setup guide for installing ESP-IDF, building firmware, flashing programs, and starting development. https://docs.espressif.com/projects/esp-idf/en/stable/esp32c6/get-started/index.html
ESP-IDF Programming Guide for ESP32-C6 Official ESP-IDF programming documentation for ESP32-C6. https://docs.espressif.com/projects/esp-idf/en/stable/esp32c6/index.html
Arduino-ESP32 Documentation Official Arduino core documentation for programming ESP32 family boards using Arduino IDE. https://docs.espressif.com/projects/arduino-esp32/en/latest/getting_started.html
Arduino-ESP32 GitHub Repository Official Espressif Arduino core repository for ESP32 boards. https://github.com/espressif/arduino-esp32
ESP-Matter Documentation for ESP32-C6 Official Espressif Matter SDK documentation for ESP32-C6 based smart home development. https://docs.espressif.com/projects/esp-matter/en/latest/esp32c6/introduction.html
ESP32-C6 Serial Connection Guide Guide for connecting, flashing, and using serial communication with ESP32-C6. https://docs.espressif.com/projects/esp-idf/en/stable/esp32c6/get-started/establish-serial-connection.html
Note: Always check the board revision and manufacturer batch before production use, as schematic version, onboard components, and documentation references may vary.Q1: What is the ESP32-C6 DevKitC-1-N4 used for? The ESP32-C6 DevKitC-1-N4 is used for IoT prototyping, smart home devices, Matter-enabled products, wireless sensor nodes, automation projects, and RISC-V learning applications.
Q2: Does the ESP32-C6 DevKitC-1-N4 support Wi-Fi 6? Yes. It supports 2.4 GHz Wi-Fi 6, making it suitable for modern IoT networks that require improved efficiency, lower latency, and better power management.
Q3: Does this board support Bluetooth? Yes. The board supports Bluetooth 5 Low Energy, which is useful for device provisioning, mobile app connectivity, beacon applications, and low-power wireless communication.
Q4: Can this board be used for Zigbee projects? Yes. ESP32-C6 includes IEEE 802.15.4 support, enabling Zigbee 3.0 and Thread-based applications.
Q5: Is the ESP32-C6 suitable for Matter smart home projects? Yes. With Wi-Fi 6, Bluetooth LE, Thread, and Zigbee support, the ESP32-C6 is suitable for Matter-compatible end devices and smart home development.
Q6: Can I program the ESP32-C6 DevKitC-1-N4 using Arduino IDE? Yes. The board can be programmed using Arduino IDE, provided the required ESP32 board package and ESP32-C6 support are installed.
Q7: Can I use ESP-IDF with this board? Yes. ESP-IDF is Espressif’s official development framework and is recommended for advanced development, production firmware, wireless protocol integration, and Matter/Thread projects.
Q8: What processor does the ESP32-C6 use? The ESP32-C6 uses a 32-bit RISC-V processor, with a high-performance core up to 160 MHz and a low-power RISC-V core for energy-efficient operation.
Q9: Is this board suitable for battery-powered projects? Yes. The ESP32-C6 supports low-power operating modes and Target Wake Time features, making it suitable for battery-powered IoT sensors and low-power wireless nodes.
Q10: What interfaces are available on the ESP32-C6 DevKitC-1-N4? The board supports common embedded interfaces such as SPI, UART, I2C, I2S, PWM, RMT, ADC, and programmable GPIOs for connecting sensors, displays, relays, and external modules.
Q11: Does the board support external sensors and modules? Yes. Multiple GPIO pins and serial interfaces allow connection to temperature sensors, motion sensors, displays, motor drivers, relays, RF modules, and other peripherals.
Q12: What power input does the board support? The board can typically be powered through USB or a compatible 5V input, with onboard regulation for 3.3V operation. Always verify the exact board pinout and power limits before connecting external power.
Q13: Is the ESP32-C6 DevKitC-1-N4 beginner-friendly? Yes. It is suitable for beginners using Arduino IDE, while also offering advanced features for professional developers using ESP-IDF.
Q14: What is included in the package? The package includes 1 × ESP32-C6 DevKitC-1-N4 Development Board.
