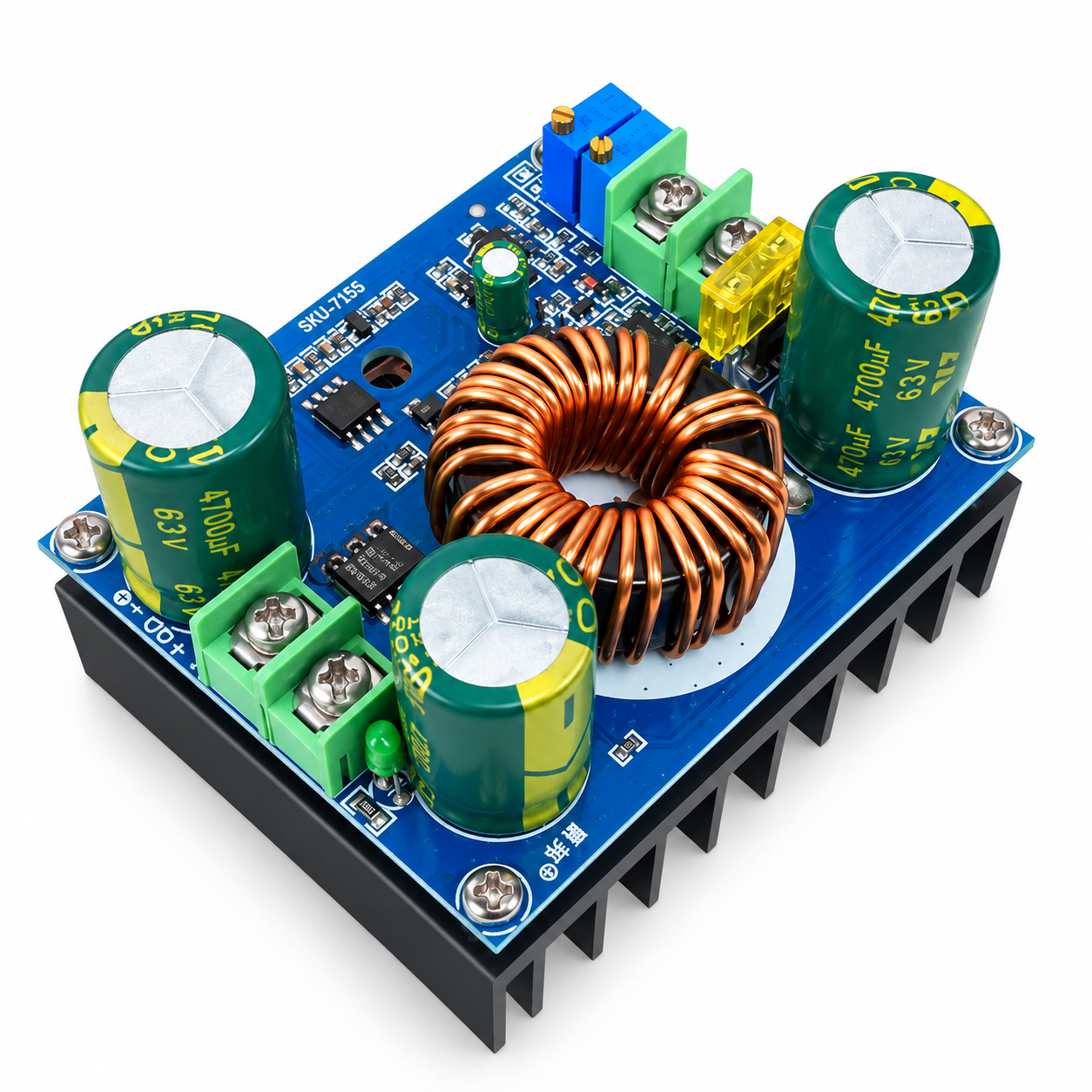

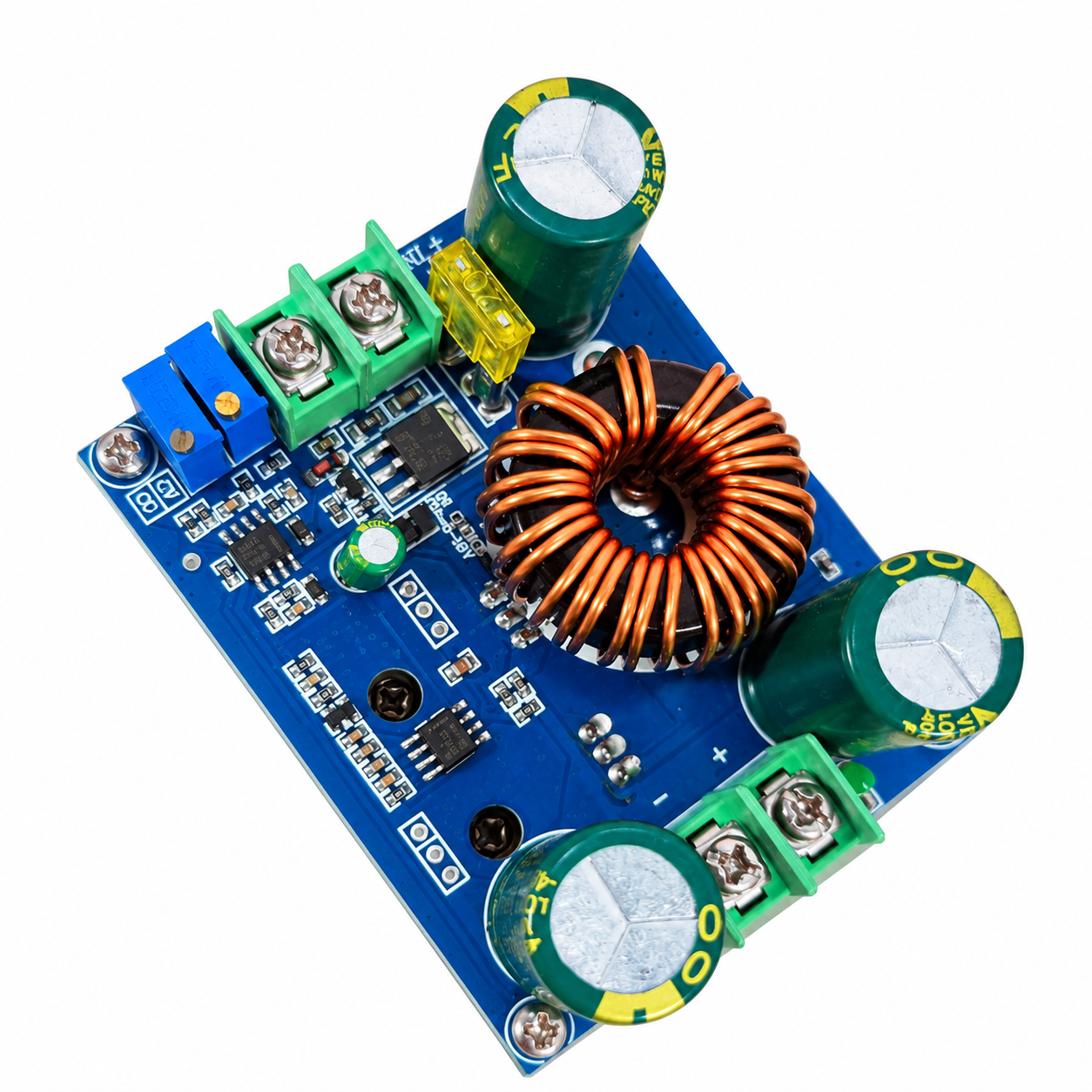

DC-DC 600W 10–60V to 12–80V Step-Up Boost Converter Module
₹837.80 incl. GST (₹710.00 + GST)
The DC-DC 600W Step-Up Boost Converter Module is designed to increase DC input voltage from a stated range of 10–60V to an adjustable output of 12–80V. It features adjustable output current and a large bottom heatsink for improved heat dissipation. Suitable for compatible power supply projects, electronics prototyping, LED systems, and DC power conversion applications. Actual output power depends on operating conditions, current limits, and cooling.
Product Description
The DC-DC 600W Step-Up Boost Converter Module is a high-power DC voltage booster designed to increase a lower DC input voltage to a higher adjustable DC output voltage. It supports a wide input voltage range and provides an adjustable output from 12V to 80V, making it suitable for various power supply and electronics projects. The module features a large heatsink on the bottom to help dissipate heat during operation. Its adjustable output current allows users to configure the module according to their application requirements, subject to the module’s operating limits and cooling conditions.
Features
-
600W Rated Power: Designed for high-power DC voltage boost applications.
-
Wide Input Voltage Range: Supports a DC input voltage range of 10V to 60V as indicated in the product title.
-
Adjustable Output Voltage: Output voltage can be adjusted from 12V to 80V.
-
Adjustable Output Current: Allows current adjustment to suit compatible loads.
-

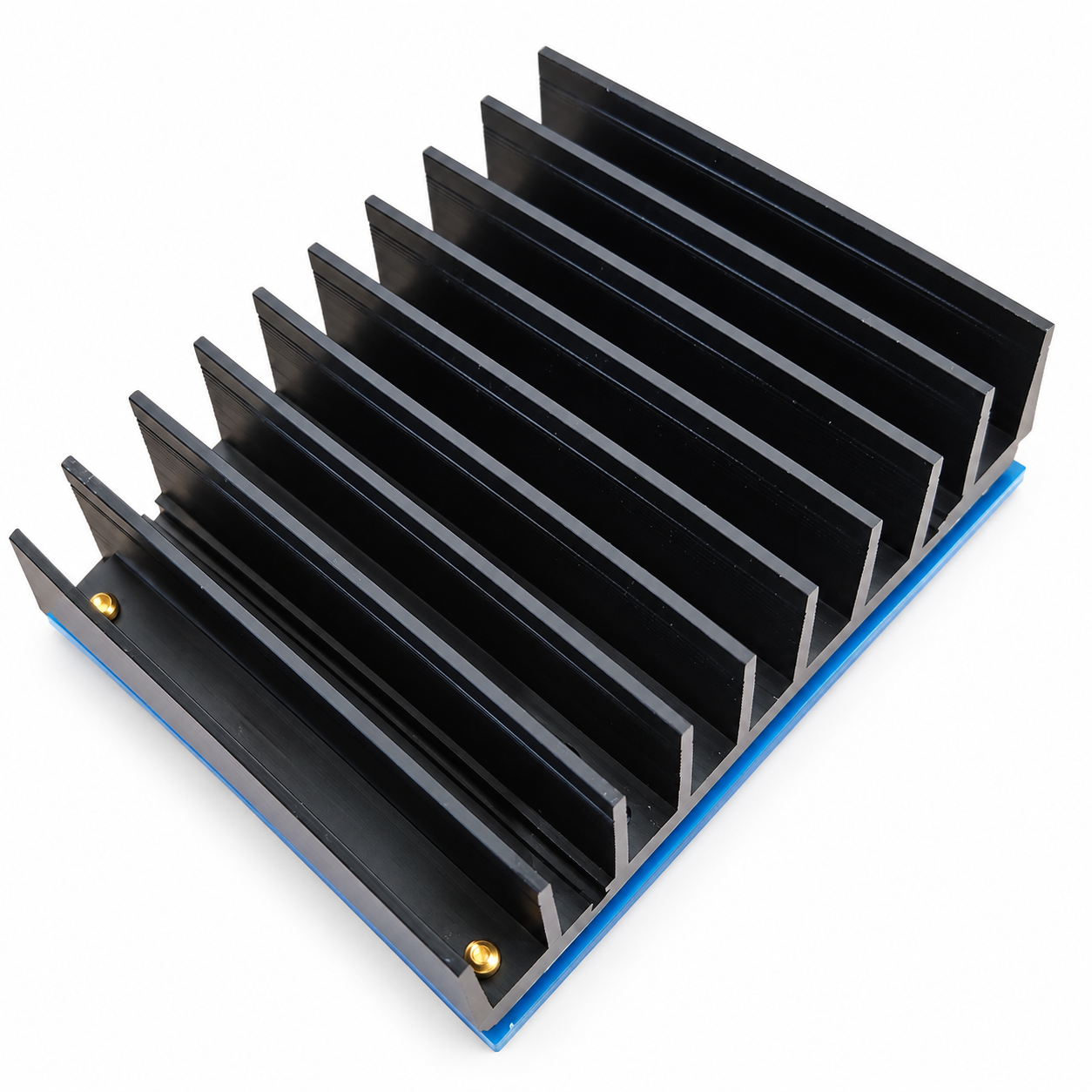

Large Heatsink: Helps dissipate heat generated during voltage conversion.
-
Versatile Applications: Suitable for DIY electronics, adjustable DC power supplies, and other compatible power systems.
Specifications
| Parameter | Details |
|---|---|
| Product Type | DC-DC Step-Up Boost Converter Module |
| Rated Power | 600W (as specified) |
| Input Voltage | 10–60V DC |
| Output Voltage | 12–80V DC, adjustable |
| Output Current | Adjustable; maximum rating requires confirmation |
| Cooling | Large bottom heatsink |
| Conversion Type | DC-to-DC boost |
| Package Quantity | 1 module |
Working Principle
The module uses a DC-DC boost conversion circuit to increase the input DC voltage to a higher output voltage. The output voltage can be adjusted within the supported range, while the output current can be configured for the connected load. The heatsink helps manage heat produced during conversion.
Applications
-
Adjustable DC power supply projects
-
High-voltage LED systems compatible with the output rating
-
Electronics prototyping and DIY projects
-
DC power conversion systems
-
Compatible battery-powered equipment
-
Robotics and industrial electronics projects
Package Includes
– 1 × DC-DC 600W 10–60V to 12–80V Step-Up Boost Converter Module
Product Disclaimer
-
The stated 600W rating may not be available continuously under all input and output conditions. Actual output power depends on input voltage, output voltage, current, temperature, and cooling.
-
The product title mentions a 10–60V input range, while the supplied feature list mentions 12–60V. Confirm the minimum input voltage with the seller before purchase.
-
The maximum output current and any protection features have not been specified in the supplied information. Verify these details before connecting sensitive or high-power equipment.
-
Provide adequate ventilation and additional cooling if required. Avoid exceeding the module’s voltage, current, and thermal limits.
-
Product images are for illustration and representation purposes only. The actual product may slightly differ in appearance, colour, design, or component placement due to manufacturing variations and production batches.
Frequently Asked Questions (FAQs)
1. What is the DC-DC 600W Boost Converter Module? It is a DC-DC power module designed to increase a lower DC input voltage to a higher adjustable output voltage. 2. What is the rated power of this module? The product is advertised as a 600W boost converter. Continuous usable power depends on operating conditions and cooling. 3. What is the input voltage range? The product title specifies 10–60V DC, while the feature list specifies 12–60V DC. Confirm the minimum supported input voltage with the seller. 4. What is the output voltage range? The output voltage is adjustable from 12V to 80V DC, as specified. 5. Can I adjust the output voltage? Yes, the module is described as having an adjustable output voltage. 6. Can I adjust the output current? Yes, the supplied product information states that the output current can be adjusted. 7. What is the maximum output current? The maximum output current is not confirmed in the supplied specifications. Check the manufacturer's rating before use. 8. Does the module have a heatsink? Yes, it includes a large heatsink on the bottom to help dissipate heat. 9. Is the module suitable for continuous operation? Continuous operation depends on the load, input and output voltages, ambient temperature, and cooling. Do not assume the full 600W rating is continuous without manufacturer confirmation. 10. Can it be used as a step-down converter? No. It is a step-up boost converter intended to increase DC voltage. 11. Can I use it with a battery? It may be suitable for compatible battery-powered systems, provided the battery voltage and current are within the module's ratings. 12. Can it be used for battery charging? Only when the module's output is suitable for the battery and a proper charging control method is provided. A basic boost converter should not automatically be treated as a dedicated battery charger. 13. Can it power LED systems? It may power compatible LED systems if their voltage and current requirements match the module's output and power limits. 14. Can I use it in DIY electronics projects? Yes, it can be used in compatible electronics and power-conversion projects. 15. Does it require cooling? The module includes a heatsink. Additional cooling or airflow may be necessary depending on load and operating temperature. 16. Does the module include a display? A display is not mentioned in the supplied product information. 17. Does it include overcurrent protection? Overcurrent protection is not confirmed in the supplied specifications. Verify this feature before relying on it. 18. Does it include short-circuit protection? Short-circuit protection is not specified in the provided information. 19. Can the output voltage be set to 80V? The stated maximum output voltage is 80V, subject to the input voltage, load, and module operating limits. 20. What is included in the package? The package includes one DC-DC 600W 10–60V to 12–80V Step-Up Boost Converter Module. Other accessories are not specified.Only logged in customers who have purchased this product may leave a review.
