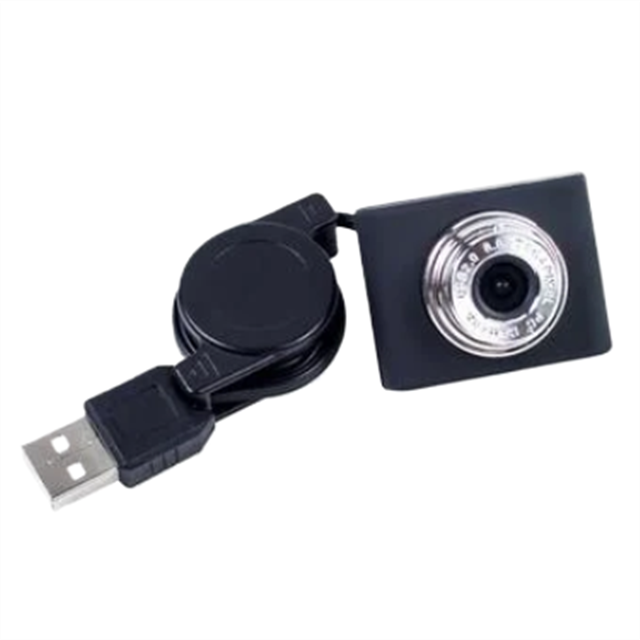

1/4 Cmos 640X480 USB Camera with Collapsible Cable for Raspberry Pi
₹342.20 incl. GST (₹290.00 + GST)
1/4″ CMOS 640×480 USB Camera is a compact plug-and-play camera featuring VGA 640×480 resolution, 30fps, USB 2.0 interface, 62° viewing angle, 30mm-to-infinity focus range, and a retractable USB cable. Ideal for Raspberry Pi, robotics, smart cars, IoT monitoring, and computer vision projects.
1/4″ CMOS 640×480 USB Camera with Collapsible Cable
Product Description
The 1/4″ CMOS 640×480 USB Camera is a compact and portable imaging solution designed for Raspberry Pi, DIY robotics, smart cars, IoT monitoring, and computer vision projects. Its built-in retractable USB cable helps reduce cable clutter and makes it convenient for compact and mobile installations.
The camera provides 640×480 VGA resolution through a USB 2.0 interface and supports up to 30fps at VGA resolution, making it suitable for basic video streaming, object detection, line following, and robotic vision applications.
With a compact 40 × 15mm design, a 62° viewing angle, and a focus range from 30mm to infinity, the camera can be installed in space-constrained robotic platforms and custom enclosures.
Features
- 1/4″ CMOS image sensor
- 640 × 480 VGA resolution
- USB 2.0 High-Speed interface
- Up to 30fps at VGA resolution
- Retractable / collapsible USB cable
- Compact 40 × 15mm design
- 5G lens
- 62° viewing angle
- Focus range from 30mm to infinity
- 5V DC power through USB
- Low current consumption
- Suitable for Raspberry Pi and PC
- Supports white balance and exposure adjustment
- CE and RoHS compliant
- Suitable for robotics and computer vision
Specifications
| Parameter | Specification |
|---|---|
| Sensor | 1/4″ CMOS |
| Resolution | 640H × 480V (VGA) |
| Interface | USB 2.0 High-Speed |
| Frame Rate | 30fps (VGA) / 15fps (XVGA) |
| Lens | 5G Lens F2.0 / f3.60 |
| Focus Range | 30mm to Infinity |
| Viewing Angle | 62° |
| Current Consumption | <120mA |
| Operating Voltage | 5V DC via USB |
| Dimensions | 40mm × 15mm |
Typical Application Scenarios
- Raspberry Pi Smart Cars: Forward-facing camera for line following, object tracking, and basic vision.
- Robotics: Compact camera for robotic arms and mobile robots.
- Portable Computing: Small USB webcam for compact PC applications.
- IoT Monitoring: Visual monitoring for remote and embedded systems.
Package Includes
- 1 × 1/4″ CMOS 640×480 USB Camera with Collapsible Cable
Important Product Disclaimer
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the latest information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product images are shown for illustrative purposes only and may differ from the actual product.
Note
Installation Tip: Ensure the Raspberry Pi or USB host has a stable power supply. The camera uses USB power and may require sufficient USB power for reliable operation.
Recommended Related Products
Explore relevant alternatives and complementary products selected from the full Robosap catalogue.
Frequently Asked Questions
1. What is this camera used for?
It is a compact USB camera suitable for Raspberry Pi, robotics, smart cars, IoT monitoring, and basic computer vision projects.
2. What is the maximum resolution?
The camera supports up to 640 × 480 (VGA) resolution.
3. What is the frame rate?
It supports up to 30fps at VGA resolution and 15fps at XVGA.
4. Does it use USB?
Yes. It uses a USB 2.0 High-Speed interface.
5. Does it require drivers?
It is designed as a plug-and-play USB camera, although software support depends on the host operating system.
6. What is the viewing angle?
The camera has approximately a 62° viewing angle.
7. What is the focus range?
The focus range is approximately 30mm to infinity.
8. Does it have a retractable cable?
Yes. It features a collapsible/retractable USB cable for easier storage and cable management.
9. Can I use it with Raspberry Pi?
Yes. It is suitable for Raspberry Pi-based robotics, smart cars, and monitoring projects.
10. What voltage does it use?
It operates from 5V DC through USB.
11. How much current does it consume?
The specified current consumption is less than 120mA.
12. Is the camera suitable for robotics?
Yes. Its compact size makes it suitable for small robots, line followers, object-tracking systems, and robotic vision projects.
13. Is the Raspberry Pi included?
No. The package includes 1 × USB Camera with Collapsible Cable only.
