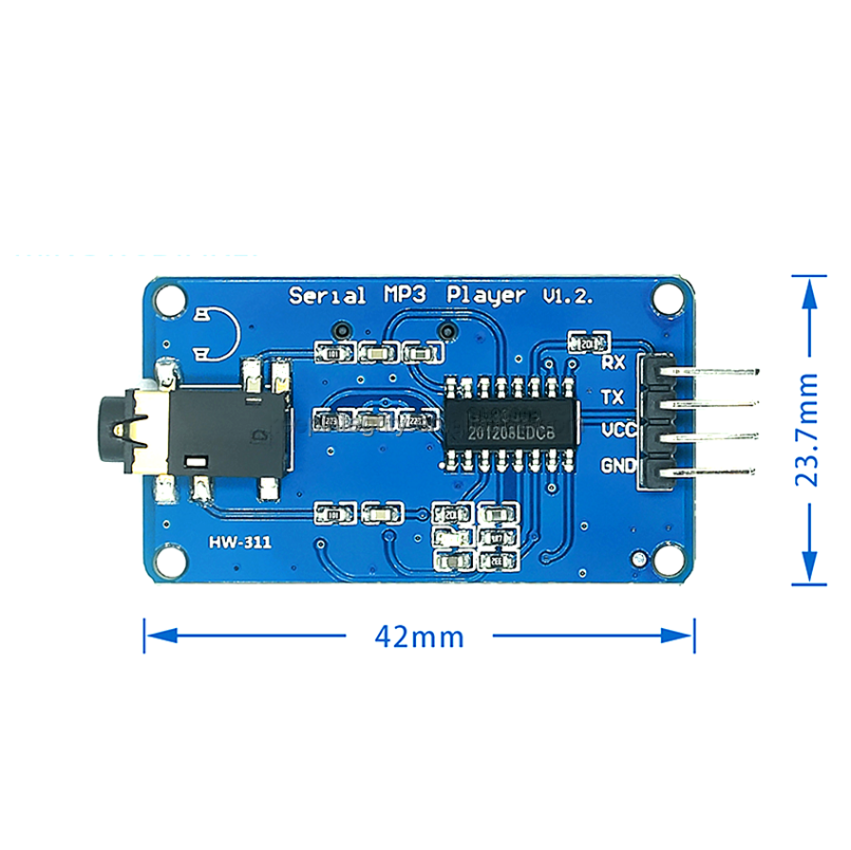

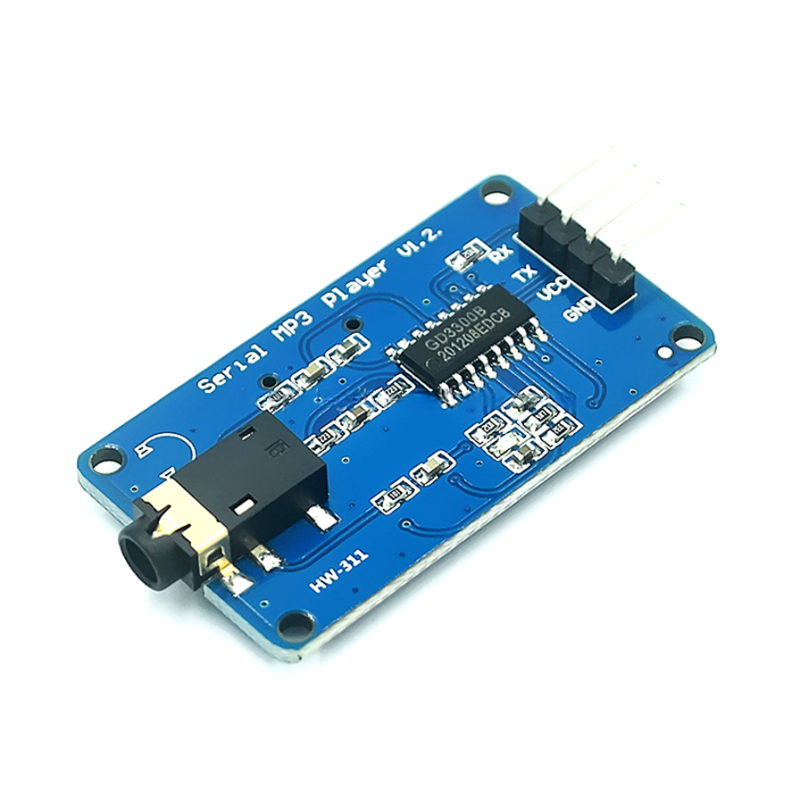

UART TTL Serial MP3 Music Player Module

The YX5300 UART MP3 Module is a simple MP3 player device built around the YX5300 high-quality MP3 audio chip. It offers various features for easy integration into electronic projects. Here are the key characteristics of the module:

1. **MP3 Audio Chip:**
– Based on the YX5300 high-quality MP3 audio chip, ensuring reliable and efficient MP3 playback.

2. **Sampling Frequency Support:**
– Supports a sampling frequency range of 8 kHz to 48 kHz, accommodating a variety of audio files in MP3 and WAV formats.

3. **TF Card Socket:**

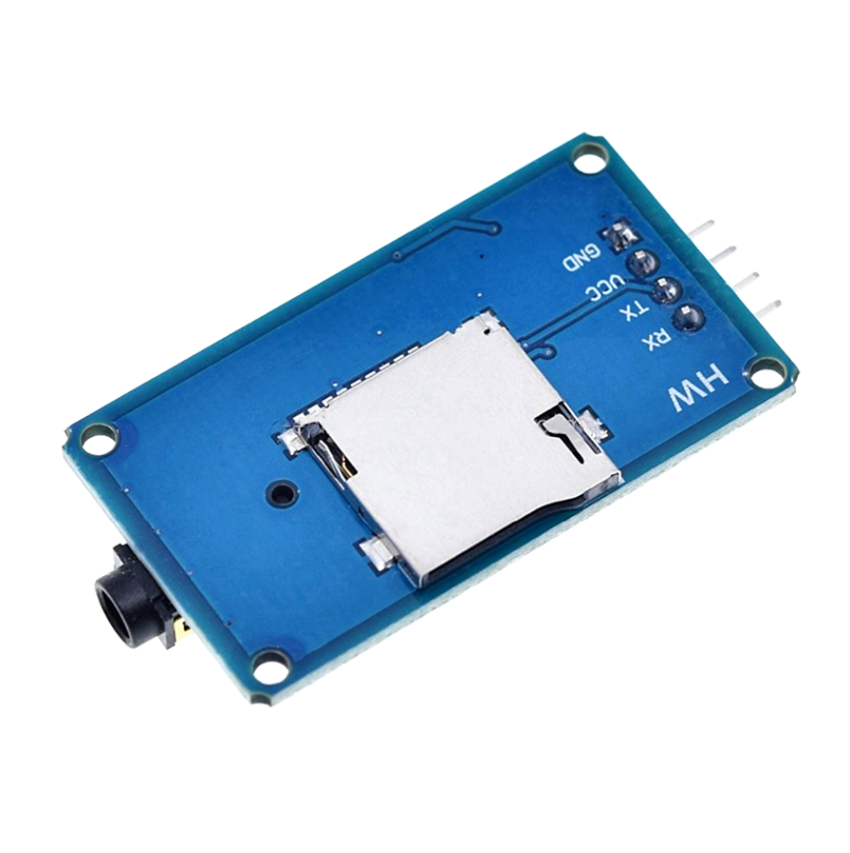

– Equipped with a TF card socket (micro SD card slot) on board, allowing users to insert a micro SD card containing audio files for playback.

4. **UART Port Control:**
– Controlled by the MCU through the UART port, enabling commands to be sent for various operations such as switching songs, adjusting volume, changing play modes, and more.

5. **USB to UART Debugging:**
– Debugging of the module can be facilitated via a USB to UART module, providing a convenient way to troubleshoot and configure the module.

6. **Compatibility:**
– Compatible with popular microcontroller platforms, including Arduino, AVR, ARM, and PIC, making it versatile for use in a wide range of projects.

7. **Command-Controlled Playback:**
– The MCU sends commands to control the MP3 playback state, allowing for seamless integration into projects that require dynamic audio playback.

8. **Versatile Applications:**
– Suitable for various applications, including hobbyist projects, interactive installations, and other scenarios where MP3 playback is desired.

Overall, the YX5300 UART MP3 Module offers a straightforward solution for adding MP3 playback functionality to electronic projects. Its compatibility with different microcontroller platforms, along with its command-controlled interface, makes it accessible for users with varying levels of programming experience.

Please Note:  Images are for representation only. Actual Product may slightly vary in appearance.
