TDA1521 Audio Power Amplifier Board Module

TDA1521 2×15W Dual Channel Audio Power Amplifier Board Module

The TDA1521 Audio Power Amplifier Board Module is a compact and versatile dual-channel DIY audio amplifier module designed for speaker modification, audio projects, and custom sound-system applications. Based on the TDA1521 power amplifier IC, the module provides a stated 2 × 15W stereo output, making it suitable for driving compatible speakers in small and medium-sized audio projects.

The board includes an integrated rectifier and filter circuit, allowing it to be connected directly to a suitable transformer-based power supply. The filtering section helps provide a cleaner and more stable supply to the amplifier circuit, contributing to reliable audio operation.

Designed with a straightforward circuit layout and high-quality components, the module is suitable for electronics enthusiasts, hobbyists, students, and DIY audio developers. It can be used to build or modify speaker systems, home audio projects, desktop amplifiers, and other custom audio applications.

A sufficiently large heat sink is required before testing or operating the amplifier, especially when driving the amplifier at higher output levels. Proper cooling helps prevent excessive heat buildup and supports stable operation.

Features

• Based on the TDA1521 audio power amplifier IC
• Dual-channel stereo amplifier
• Stated output power of 2 × 15W
• Integrated rectifier circuit
• Integrated filter circuit
• Can be connected to a suitable transformer supply
• Stable audio amplification performance
• Suitable for DIY audio projects
• Designed for speaker modification applications
• Durable PCB construction
• Compact amplifier-board design
• Suitable for hobby and educational electronics
• Useful for custom audio systems
• Requires appropriate heat sinking for operation

Specifications

Design and Construction

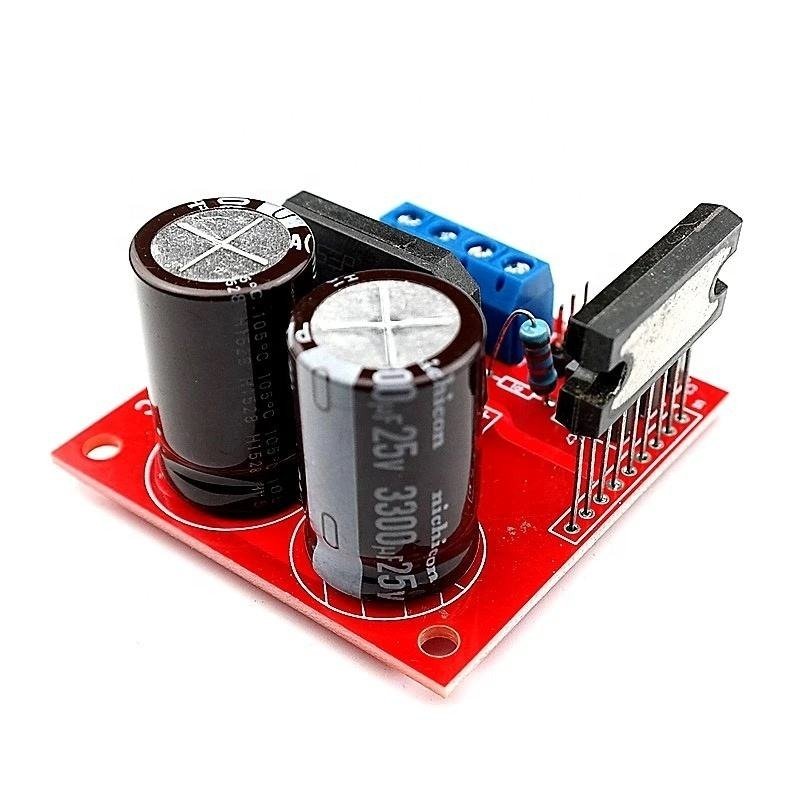

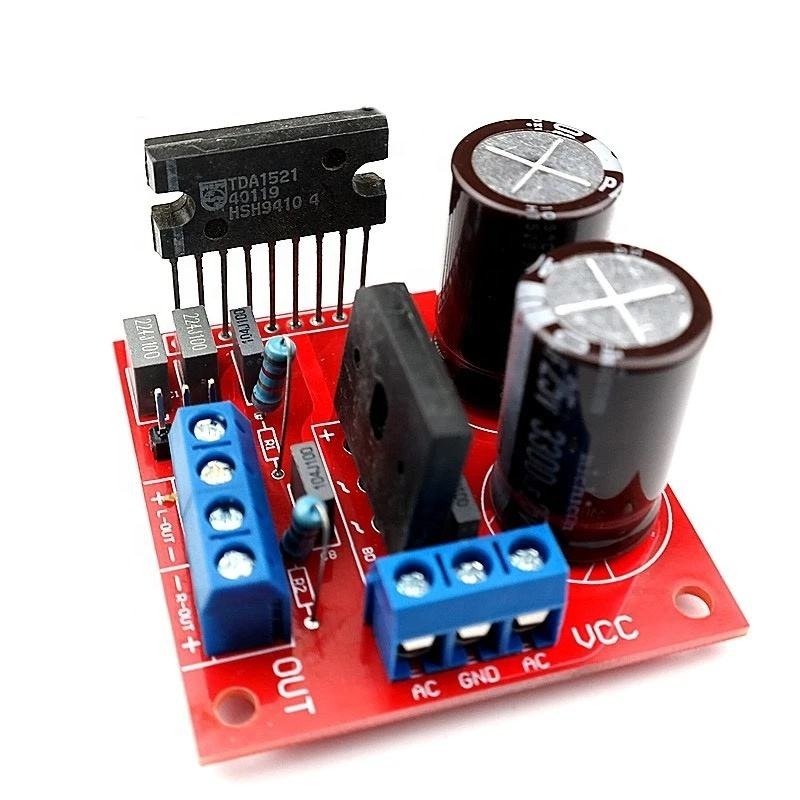

The TDA1521 amplifier module is built around the TDA1521 power amplifier IC and includes supporting rectifier and filter circuitry on the same PCB.

The integrated rectifier section allows the incoming AC supply from a suitable transformer to be converted into DC, while the filter section helps smooth the supply before it reaches the amplifier circuit.

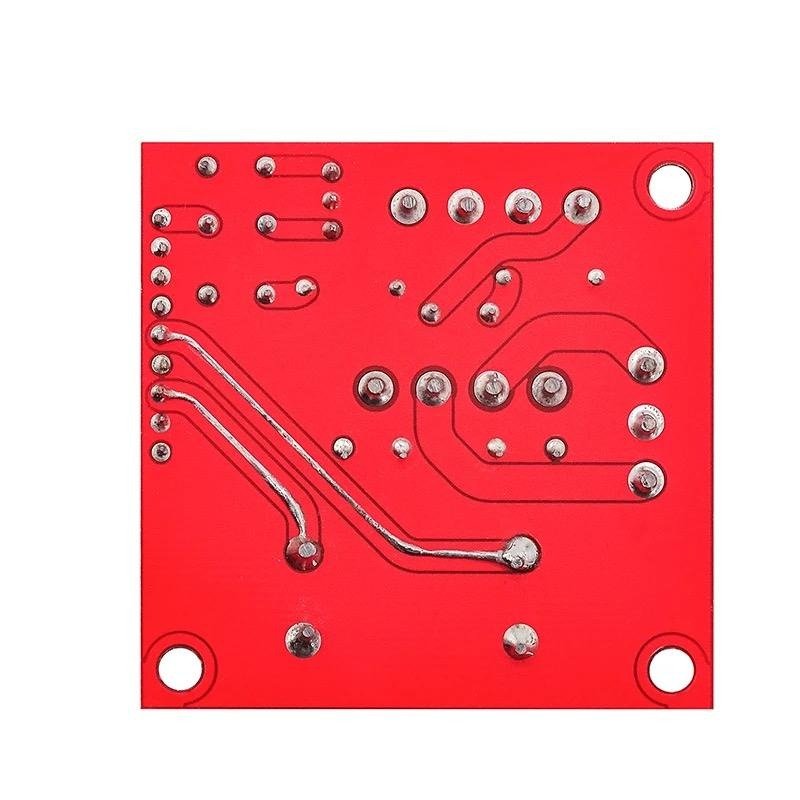

The compact PCB design makes the module convenient for integration into DIY speaker systems and custom audio enclosures. The board is designed for dual-channel operation, allowing it to drive two compatible speaker channels.

Working Principle

The amplifier receives an audio signal from a suitable audio source and amplifies it using the TDA1521 power amplifier IC.

The audio input signal is processed by the amplifier circuit and increased to a level suitable for driving compatible speakers. The two amplifier channels operate independently to provide stereo audio output.

The onboard rectifier and filter circuit conditions the transformer-supplied power before it is used by the amplifier section, helping provide stable DC power for the audio circuit.

The amplifier generates heat during operation, particularly at higher output levels. Therefore, a properly sized heat sink must be installed before testing or operating the board.

Power Supply

The module includes a rectifier and filter circuit and is designed to work with a suitable transformer-based AC power source.

The exact transformer voltage and current requirements should be selected according to the TDA1521 circuit configuration and the desired output power. Always verify the board’s power-input markings before connecting a transformer.

Do not connect an arbitrary DC or AC supply without confirming that it is compatible with the specific board version.

Cooling Requirement

A sufficiently large heat sink is required for the amplifier IC before testing the module.

The amplifier can generate significant heat when operating at higher volume levels or driving demanding speaker loads. Proper heat dissipation helps maintain stable operation and reduces the risk of thermal stress or damage.

For continuous or high-power operation, additional ventilation may also be beneficial.

Applications

• DIY audio amplifier projects
• Stereo speaker systems
• Speaker modification
• Home audio projects
• Desktop audio amplifiers
• Custom speaker systems
• Audio electronics experiments
• Educational electronics projects
• Hobby audio projects
• Small audio systems
• DIY sound systems
• Audio amplifier prototyping
• Electronics laboratory projects
• Custom audio enclosures

Advantages

• Dual-channel stereo output
• Stated 2 × 15W output capability
• Integrated rectifier and filter circuit
• Simple DIY amplifier design
• Suitable for transformer-based power supplies
• Compact PCB construction
• Suitable for speaker modification
• Easy to integrate into custom audio projects

Package Includes

• 1 × TDA1521 Audio Power Amplifier Board Module, Dual Channel 2 × 15W

Product Disclaimer

Product images are for illustrative and representational purposes only. The actual product may vary slightly in PCB design, component placement, colour, dimensions, markings, or overall appearance depending on the manufacturing batch.

A suitable heat sink must be installed before testing or operating the amplifier board. Operating the amplifier without adequate heat dissipation may result in excessive heating or damage.

Speakers, transformer, heat sink, cables, enclosure, audio source, and other accessories shown in product images are not included unless specifically mentioned in the package contents.

The stated 2 × 15W output depends on the power supply, speaker impedance, cooling, audio signal, and operating conditions. Always use a suitable power supply and compatible speakers for the amplifier board.
