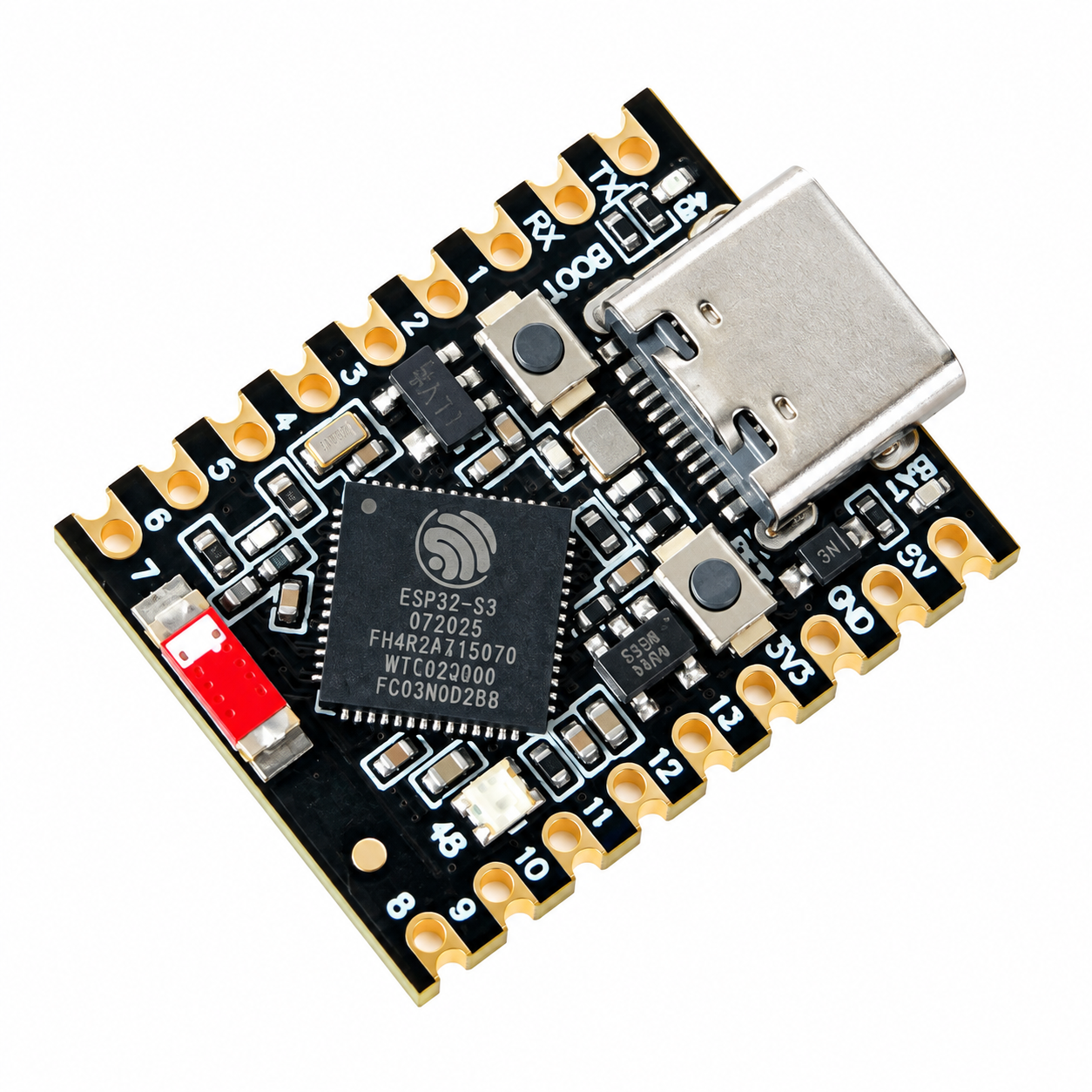

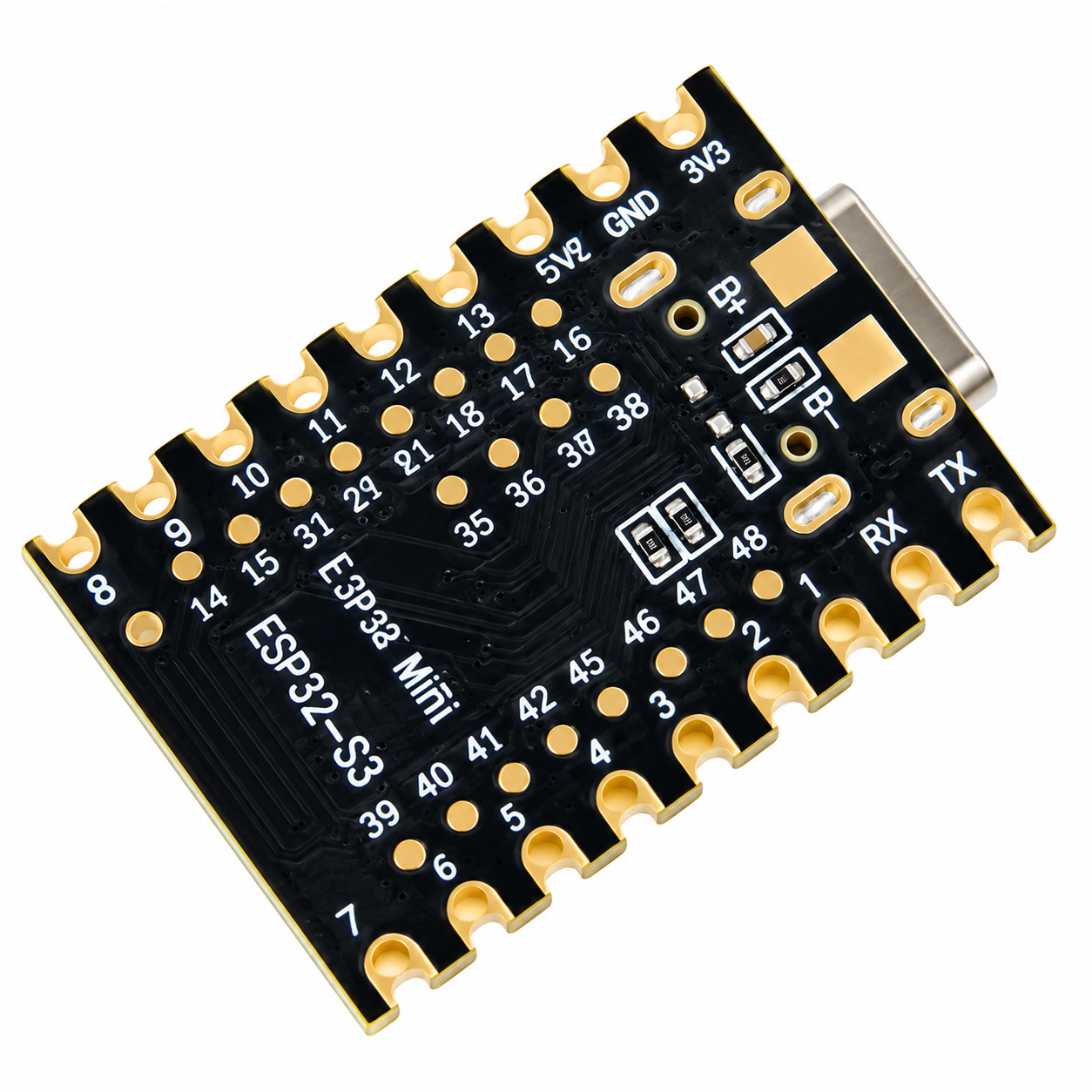

ESP32-S3 Supermini Development Board with WiFi Bluetooth

389.00 excl GST

20 in stock

Package Contains : 1 Nos ESP32-S3 Supermini Development Board with WiFi Bluetooth

Compare
SKU: ri-4499o Categories: ,

🚀 ESP32-S3 SuperMini – Ultra-Compact IoT Development Board for High-Performance Projects

The ESP32-S3 SuperMini is a powerful and compact IoT development board built around the advanced Espressif ESP32-S3 Wi-Fi and Bluetooth 5 (LE) dual-mode chip. Equipped with a dual-core Xtensa LX7 processor running at up to 240 MHz, this board delivers outstanding performance and efficiency for your embedded and IoT applications.

With Wi-Fi 802.11b/g/n and Bluetooth 5 (LE) connectivity, seamless wireless communication is guaranteed. Similar to the ESP32-C3 SuperMini, it features an integrated PCB antenna for strong and reliable signal reception, eliminating the need for external antennas.


Key Features:

  • Ultra-compact size: 22.52 x 18 mm – perfect for space-constrained projects.

  • Ultra-low power consumption: Deep sleep mode draws just ~43 μA, ideal for battery-powered devices.

  • Onboard WS2812 RGB LED: Customizable multi-color LED for status indication and effects.

  • High-performance dual-core CPU: Xtensa LX7, clocked at up to 240 MHz.

  • Ample memory: 512 KB SRAM, 384 KB ROM, and 4 MB Flash storage.

  • Advanced security: Hardware support for AES-128/256, RSA, HMAC, digital signatures, and secure boot.

  • Versatile I/O options:

    • 11 digital I/O pins

    • 22 external interrupt pins

    • 6 analog input pins

    • 11 PWM pins

Please note: Images are for representation only. The Actual Product may may vary slightly in physial Appearance.
