ESP32-C6-DevKitC-1-N4 ESP32-C6 WiFi 6 BLE Zigbee Thread RISC-V Development Board
₹795.00 excl GST
The ESP32-C6-DevKitC-1-N4 ESP32-C6 Core Board is a compact RISC-V based development board designed for IoT, wireless automation, smart home, BLE, Zigbee, Thread, and Wi-Fi 6 based projects. It supports 2.4GHz Wi-Fi 6, Bluetooth 5 LE, Zigbee 3.0, and Thread, making it suitable for modern connected device development.
ESP32-C6 DevKitC-1-N4 Wi-Fi 6, BLE & Zigbee Development Board
The ESP32-C6 DevKitC-1-N4 is a multi-protocol RISC-V development board engineered for modern IoT and smart home systems. With native support for Wi-Fi 6, Zigbee 3.0, Thread, and Bluetooth 5 LE, it provides a solid foundation for building Matter-compatible hubs, low-power sensor nodes, and wireless mesh networks.
Product Overview

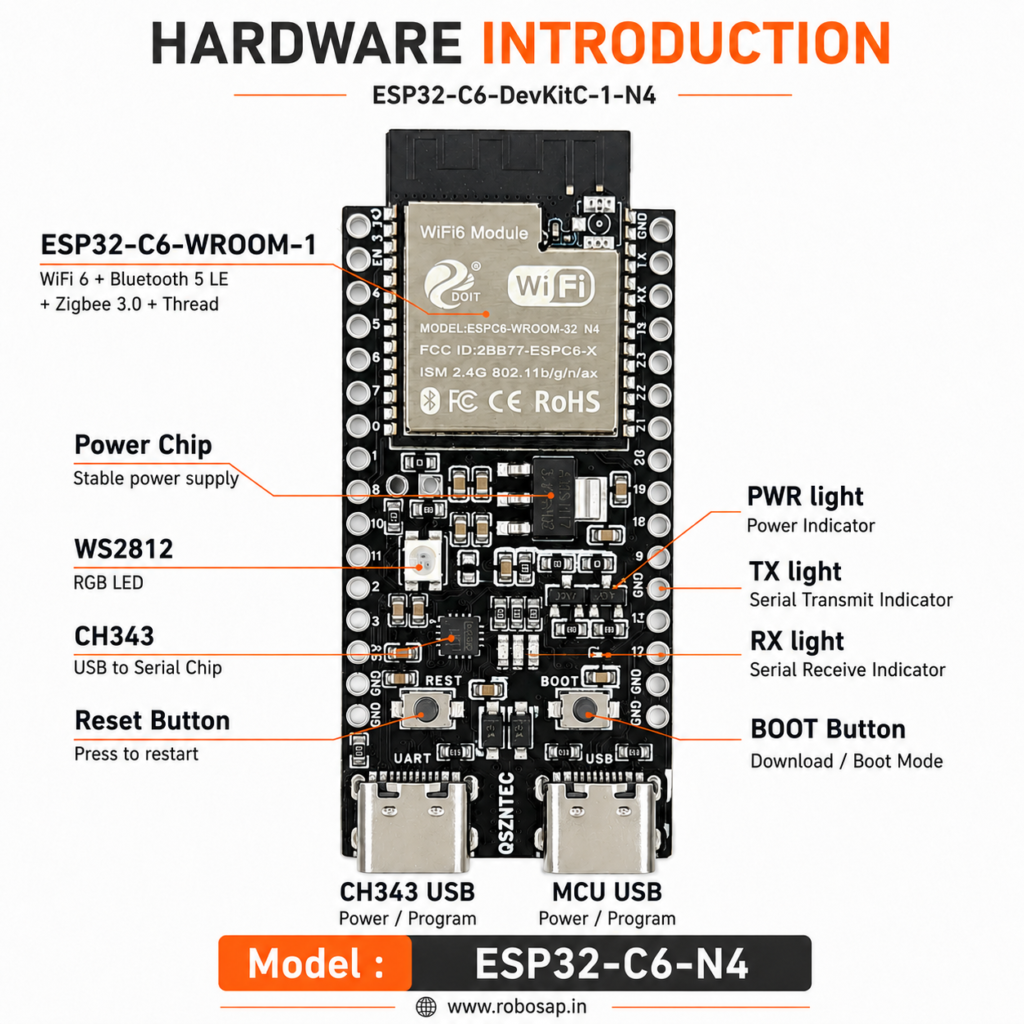

The ESP32-C6 DevKitC-1-N4 combines versatile wireless connectivity with robust processing power. It features a high-performance 32-bit RISC-V core (160 MHz) and a low-power 20 MHz RISC-V core for deep-sleep battery applications. The board includes multiple GPIOs, a 12-bit ADC, and serial interfaces (SPI, UART, I2C), making it easy to connect sensors, actuators, and external modules. Compatible with both Arduino IDE and ESP-IDF, it is ideal for prototyping and production-ready projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ESP32-C6 DevKitC-1-N4 |
| Processor Architecture | 32-bit RISC-V (160 MHz Main, 20 MHz Low-Power) |
| Wireless Protocols | 2.4GHz Wi-Fi 6, Bluetooth 5 LE, Zigbee 3.0, Thread |
| Memory | 512 KB SRAM, 320 KB ROM (Supports external flash) |
| Hardware Interfaces | SPI, UART, I2C, I2S, PWM, RMT, SDIO |
| Analog / Digital | 12-bit ADC, multiple programmable GPIOs |
| Power Supply | 3.3V / 5V compatible (Includes low-power modes) |
| Development Environments | Arduino IDE, ESP-IDF |
| Ideal Use Cases | Matter & smart home hubs, IoT nodes, battery-operated sensors, RISC-V education |
Ideal Use Cases & Applications
- Matter & Smart Home Hubs: Bridges Zigbee, Thread, and Wi-Fi 6 into a single Matter-compatible network.
- High-Density IoT Deployments: Wi-Fi 6 (OFDMA, Target Wake Time) enables stable connections for dozens of devices simultaneously.
- Battery-Operated Sensor Nodes: Low-power core monitors sensors while minimizing energy consumption, extending battery life.
- Embedded RISC-V Education: A low-cost platform for students and researchers exploring RISC-V and multi-protocol communication.
Frequently Asked Questions (FAQ)
Q1: Does the ESP32-C6 support the Matter protocol?
Yes. Built-in support for Wi-Fi 6, Thread, and Bluetooth LE enables Matter-compatible end devices or border routers.
Q2: Can I program this board using Arduino IDE?
Yes. Fully compatible with Arduino IDE and Espressif’s ESP-IDF framework.
Q3: What is the advantage of Wi-Fi 6 on this board?
Wi-Fi 6 improves network efficiency, supports Target Wake Time (TWT), and reduces power consumption for battery-powered IoT devices.
Package Includes
- 1 × ESP32-C6 DevKitC-1-N4 Development Board
If you are looking for other ESP32 Development Boards
- ESP32-C6 DevKitC User Guide: Espressif Documentation
- ESP32-C6-WROOM-1 Datasheet: PDF Datasheet
Important Product Disclaimer
Specifications, images, and functions are for representation only. Product may differ slightly in layout or onboard components depending on manufacturer batch. Verify exact technical parameters before ordering.
