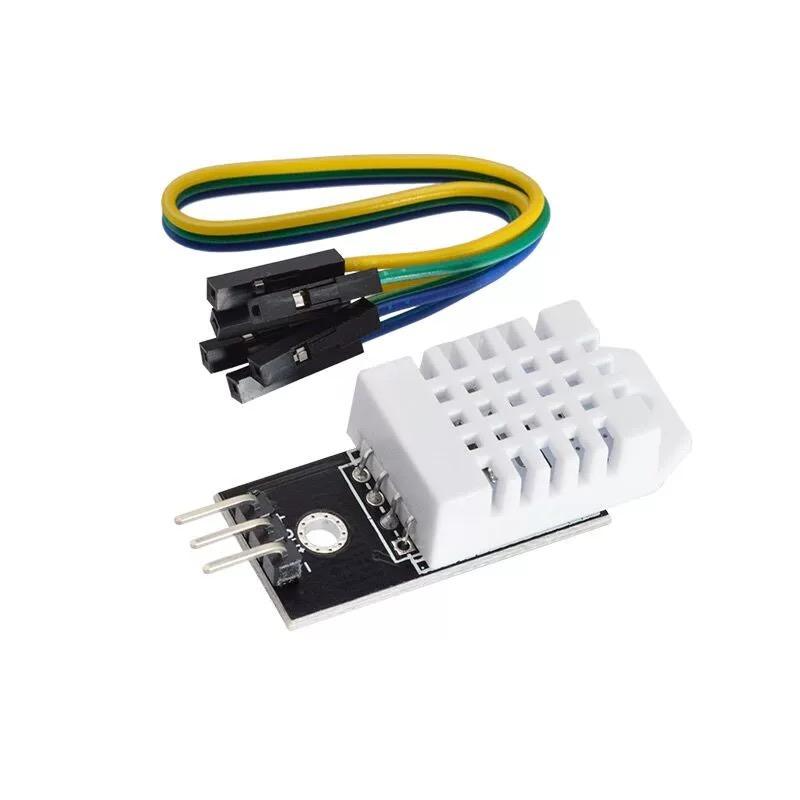

DHT22 Humidity and Temperature Sensor Module (AM2302)
₹115.64 incl. GST (₹98.00 + GST)
The DHT22 Humidity and Temperature Sensor Module is a reliable digital sensor designed to measure temperature and relative humidity with good accuracy. It uses a capacitive humidity sensor and thermistor and provides calibrated digital output through a single data pin. With a 3V–5V operating voltage, wide measurement range, and low power consumption, it is ideal for IoT, weather stations, HVAC, home automation, agriculture, and environmental monitoring projects.
The DHT22 Humidity and Temperature Sensor Module is a reliable and easy-to-use digital environmental sensor designed to measure ambient temperature and relative humidity. It combines a capacitive humidity sensing element and thermistor to provide calibrated digital measurements through a single data interface. Its good accuracy, wide measurement range, and simple connection make it suitable for IoT devices, weather monitoring systems, home automation, HVAC applications, and embedded electronics projects.
The sensor provides a digital output signal, eliminating the need for a dedicated analog input. It can be connected to popular microcontroller platforms such as Arduino, ESP32, ESP8266, Raspberry Pi, and other compatible development boards using suitable software libraries.
The DHT22 is factory-calibrated and designed to provide stable temperature and humidity readings during normal operation. Its low power requirements make it suitable for both continuously powered systems and battery-operated monitoring devices.
With support for a wide temperature and humidity measurement range, the DHT22 can be used in applications where monitoring environmental conditions is important. The module is particularly useful for projects requiring simple and economical temperature and humidity sensing.
Features
- Digital temperature and humidity sensor
- Measures both temperature and relative humidity
- Uses a capacitive humidity sensing element
- Uses a thermistor for temperature measurement
- Factory-calibrated digital output
- Single-wire digital data communication
- No dedicated analog input required
- Operating voltage from 3V to 5V
- Low power consumption
- Wide temperature measurement range
- Wide relative humidity measurement range
- Simple connection and easy installation
- Suitable for Arduino and other microcontroller projects
- Compatible with IoT and automation systems
- Suitable for battery-powered monitoring applications
- Reliable environmental monitoring
- Suitable for long-distance signal transmission with appropriate wiring
- Compact sensor module design
- Useful for indoor and environmental monitoring projects
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Temperature & Humidity Sensor |
| Sensor Type | DHT22 |
| Operating Voltage | 3V to 5V |
| Signal Type | Digital |
| Communication | Single-Wire Digital |
| Humidity Range | 0–100% RH |
| Temperature Range | -40°C to +80°C |
| Sampling Rate | Approximately 1 Reading Every 2 Seconds |
| Humidity Sensing | Capacitive |
| Temperature Sensing | Thermistor |
| Calibration | Factory Calibrated |
| Pins | 4-Pin Packaged Module |
| Application | Environmental Monitoring |
Design and Construction
The DHT22 sensor module combines the temperature and humidity sensing elements with the required internal electronics for digital signal processing. Its compact design allows it to be easily integrated into electronic circuits, sensor nodes, monitoring systems, and prototype projects.
The capacitive humidity sensor detects changes in relative humidity, while the integrated thermistor measures ambient temperature. Internal processing converts the sensor readings into a calibrated digital signal that can be read by a compatible microcontroller.
The module uses a simple connection arrangement consisting of power, ground, and data connections, making it convenient for breadboard prototyping and embedded applications. The packaged module provides a practical solution for applications where a compact environmental sensor is required.
Its low power consumption also makes the DHT22 suitable for applications where energy efficiency is important, including remote monitoring devices and battery-powered IoT systems.
Working Principle
The DHT22 measures environmental conditions using two sensing elements. The capacitive humidity sensor detects changes in moisture content in the surrounding air, while the thermistor detects ambient temperature.
The sensor’s internal electronics process these measurements and generate a calibrated digital signal. The connected microcontroller communicates with the sensor through the data pin and retrieves the temperature and humidity readings.
The digital output allows the microcontroller to directly process the measured values without requiring an external analog-to-digital converter. The readings can then be displayed, stored, transmitted through a network, or used to control other devices.
For example, a microcontroller can use the humidity reading to control a dehumidifier or ventilation system, while the temperature reading can be used for cooling, heating, or environmental monitoring.
The sensor is designed for periodic measurements, with a typical sampling interval of approximately one reading every two seconds.
Applications
- IoT environmental monitoring
- Weather stations
- Temperature monitoring systems
- Humidity monitoring systems
- HVAC systems
- Dehumidifiers
- Home automation systems
- Smart home projects
- Environmental data loggers
- Testing and inspection equipment
- Consumer electronics
- Automotive automation projects
- Home appliances
- Humidity control systems
- Temperature control systems
- Industrial monitoring
- Indoor air monitoring
- Greenhouse monitoring
- Agricultural monitoring systems
- Arduino sensor projects
- ESP32 environmental monitoring
- ESP8266 IoT projects
- Raspberry Pi monitoring systems
- Educational electronics projects
- Embedded environmental sensing
Package Includes
- 1 × DHT22 Humidity and Temperature Sensor Module
Product Disclaimer
Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, PCB layout, component arrangement, connector configuration, or appearance depending on the manufacturing batch.
Connecting wires, breadboards, microcontrollers, displays, power supplies, enclosures, and other components shown in product images are not included unless specifically mentioned in the package contents.
Sensor accuracy and measurement stability may vary depending on operating conditions, environmental factors, installation, wiring length, and application setup.
The DHT22 is designed for environmental temperature and humidity monitoring. It should be used within its specified operating range and should not be directly exposed to liquids or extreme environmental conditions beyond its specifications.
