150W DC 12V to AC 110V/220V Inverter Boost Module
₹566.40 incl. GST (₹480.00 + GST)

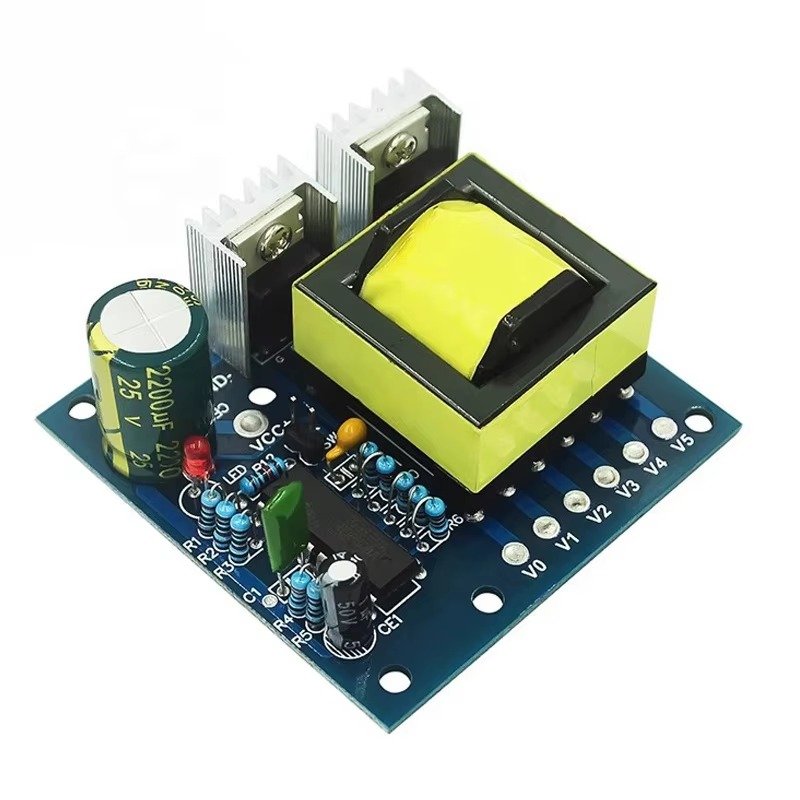

The 150W DC 12V to AC 110V/220V Inverter Boost Module converts 12V DC input into high-frequency square-wave AC output with selectable voltage levels of approximately 110V, 172V, 200V, and 220V. With a compact 58 × 58 × 28mm design and approximately 120g weight, it is suitable for DIY inverter projects, vehicle power applications, and electronics prototyping. The module operates at approximately 20kHz and supports up to 150W under suitable conditions. Do not use directly with motors, fans, coils, or other incompatible inductive loads, and provide proper cooling for heavy loads.
The 150W DC 12V to AC 110V/220V Inverter Boost Module is a compact high-frequency inverter board designed to convert 12V DC input power into high-voltage AC output. It is suitable for DIY inverter projects, vehicle power applications, backup-power experiments, and electronic projects requiring a high-voltage AC source from a 12V battery or power supply.
The module supports multiple output voltage tapping options, including approximately 110V, 172V, 200V, and 220V, allowing users to select a suitable output according to their application. It uses a high-frequency square-wave output at approximately 20kHz and is designed for applications where a simple high-voltage AC conversion stage is required.
With a compact 58 × 58 × 28mm form factor and a weight of approximately 120g, the module is easy to integrate into DIY electronic systems. It is primarily intended as an inverter boost stage rather than a complete consumer-grade AC power inverter.
Features
- 150W DC-to-AC inverter boost module
- Converts 12V DC to high-voltage AC
- Multiple selectable AC output voltages
- Output options include approximately 110V, 172V, 200V, and 220V
- High-frequency square-wave output
- Approximate output frequency: 20kHz
- Compact and lightweight PCB design
- Suitable for DIY inverter projects
- Useful for vehicle and battery-powered applications
- Suitable for electronic prototyping
- High-quality PCB construction
- Suitable for inverter-stage development
- Can be used with suitable 12V DC power sources
- Designed for applications requiring high-voltage AC conversion
Specifications
| Parameter | Specification |
|---|---|
| Product Type | DC to AC Inverter Boost Module |
| Model | 150W Boost Inverter |
| Input Voltage | 12V DC |
| Output Voltage | 0–110V–172V–200V–220V AC |
| Maximum Rated Power | Up to 150W* |
| Output Waveform | High-Frequency Square Wave |
| Output Frequency | Approximately 20kHz |
| Quiescent Current | Approximately 0.05A |
| Dimensions | 58 × 58 × 28mm |
| Weight | Approximately 120g |
| Application | DIY Inverter, Power Conversion, Electronics Projects |
*Actual usable output power depends on the input power supply, cooling, load type, wiring, and operating conditions.
Design and Construction

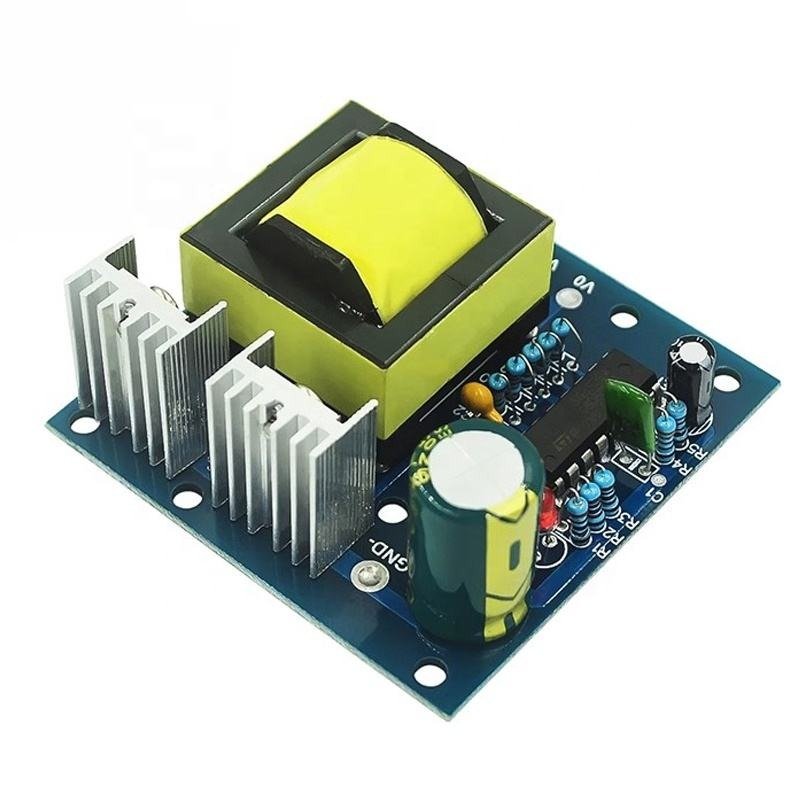

The module uses a compact PCB-based high-frequency inverter design for converting low-voltage DC power into high-voltage AC. Its small size makes it suitable for integration into DIY electronic enclosures and battery-powered systems.
The board provides multiple output terminals that can be used to obtain different voltage levels. This multi-tap arrangement allows the user to select a lower output voltage for suitable low-power electronic loads or a higher output voltage when required by the application.
For applications involving continuous or heavier loads, additional cooling such as a suitable heat sink is recommended. Adequate ventilation and appropriately rated wiring are also important for reliable operation.
Working Principle
The module takes 12V DC from a suitable power source and uses high-frequency switching circuitry to convert the DC input into a high-frequency alternating waveform. The onboard transformer then boosts the voltage to the required high-voltage AC level.
The output is a high-frequency square wave, rather than a utility-style pure sine wave. The available output voltage depends on which output terminals are selected.
The module is therefore best suited as an inverter boost stage for electronic projects rather than as a universal replacement for mains electricity.

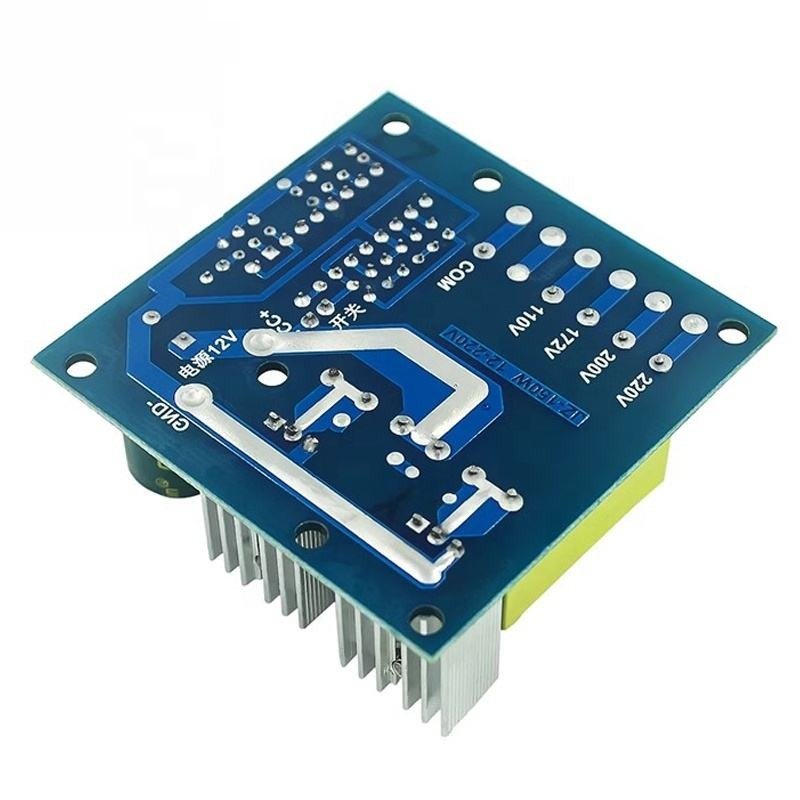

Output Voltage Wiring
The available output voltage combinations are specified as follows:
| Output Terminals | Approximate Voltage |
|---|---|
| V0 – V2 | 110V |
| V0 – V3 | 175V |
| V0 – V4 | 200V |
| V0 – V5 | 220V |
| V5 – V4 | 20V |
| V5 – V3 | 45V |
| V5 – V2 | 110V |
| V4 – V3 | 28V |
| V4 – V2 | 90V |
| V3 – V2 | 62V |
Important: Output voltage values are approximate and can vary depending on input voltage, load, wiring, and operating conditions.
Applications
- DIY DC-to-AC inverter projects
- 12V battery inverter projects
- Vehicle power conversion experiments
- Car and truck electronics projects
- RV and boat power projects
- Emergency power experiments
- Electronic inverter-stage development
- High-voltage AC experiments
- Power electronics projects
- Educational electronics projects
- DIY backup-power systems
- Electronic prototyping
- Custom inverter development
- Night-market and portable power projects
Load Compatibility
Because the module produces a high-frequency square-wave AC output, it is not suitable for all types of AC appliances.
It should generally not be used directly with inductive loads such as:
- Motors
- Fans
- Coils
- Transformers not designed for the waveform/frequency
- Other loads requiring a sine-wave AC supply
For small electronic loads such as LED lights, mobile-phone chargers, or set-top boxes, selecting a suitable lower output voltage is recommended where appropriate.
Always verify the input requirements and waveform compatibility of the connected load before use.
Important Operating Guidelines
- Use only a suitable 12V DC power supply.
- Check the polarity carefully before connecting power.
- Do not reverse the power supply polarity.
- Use a power supply and wiring capable of supplying the required input current.
- Do not overload the module.
- Do not short-circuit the output.
- Provide adequate cooling for extended operation.
- An additional heat sink is recommended for heavier loads, particularly around 100W or more.
- Keep the module away from moisture and conductive materials.
- Do not touch the high-voltage output while powered.
- Disconnect the input power before changing output connections.
Output Measurement Note
Because the output is a high-frequency square-wave AC signal, measuring the no-load output voltage with a standard multimeter may produce an unusually high or inaccurate reading. The displayed value may not represent the actual effective output voltage.
Use an appropriate measurement instrument designed for the waveform and frequency when accurate measurements are required.
Special Application Note
Some switching power supplies use conventional rectifier components at their input. Connecting such equipment directly to a high-frequency AC output may cause excessive heating or damage to the rectifier section.
For electronic applications requiring DC input, an appropriate high-frequency-rated rectification and filtering stage may be required rather than directly connecting the equipment to the module’s AC output.
The suitability of any external rectifier, diode, capacitor, or filter must be determined according to the required voltage, current, frequency, and load characteristics.
Package Includes
- 1 × 150W DC 12V to AC 110V/220V Inverter Boost Module Board
Product Disclaimer
This is a high-voltage power-conversion module intended for experienced users and electronic DIY applications. The output can reach potentially hazardous voltage levels. Use appropriate insulation, enclosure, fusing, wiring, grounding, and electrical safety practices during installation and operation.
This module does not produce utility-grade pure sine-wave AC. Its high-frequency square-wave output may be unsuitable for many household appliances and inductive loads.
The stated 150W rating is application-dependent and requires an adequate 12V power source and appropriate thermal management. Actual output performance may vary according to input supply, load, cooling, wiring, and operating conditions.
Do not reverse the input polarity, overload the output, or short-circuit the module.
Once the module has been soldered or modified, it is not eligible for return according to the stated product conditions.
Product images are for representation only. The actual product may vary slightly in colour, PCB markings, component placement, dimensions, or overall appearance depending on the manufacturing batch.
Frequently Asked Questions (FAQs)
1. What is the 150W DC to AC Inverter Boost Module used for?
It is used to convert 12V DC power into high-frequency AC voltage for DIY inverter, power-conversion, and electronics projects.
2. What is the input voltage?
The module requires a 12V DC input.
3. What output voltages are available?
The module provides selectable output taps of approximately 110V, 172V, 200V, and 220V AC, depending on the terminals used.
4. What is the maximum power rating?
The module is rated for up to 150W, provided the input power supply, wiring, cooling, and load are suitable.
5. What type of AC waveform does it produce?
It produces a high-frequency square-wave AC output, not a pure sine wave.
6. What is the output frequency?
The stated output frequency is approximately 20kHz.
7. Can I use this module with a car battery?
Yes, it can be powered from a suitable 12V battery, such as a car battery, provided the battery and wiring can safely supply the required current.
8. Can it be used in a vehicle?
Yes. It can be used in suitable DIY vehicle power-conversion applications, but it must be properly enclosed, protected, and installed.
9. Can it be used with motors or fans?
No. The high-frequency square-wave output is not suitable for many inductive loads such as motors, fans, and coils.
10. Can it power LED lights?
It may be suitable for compatible LED lighting loads, but the required output voltage and the LED driver's input requirements must be checked first.
11. Can it power a mobile phone charger?
Some compatible chargers may work, but compatibility with the module's high-frequency square-wave output must be confirmed. A suitable lower output voltage may be preferable where applicable.
12. Can it be used with electronic devices?
Only if the device's power supply is compatible with the module's output voltage, frequency, waveform, and power characteristics.
13. What is the purpose of the different output terminals?
The different terminal combinations provide different voltage levels, allowing the user to select an output suitable for the intended application.
14. What are the output terminal voltages?
The specified combinations include approximately:
- V0–V2: 110V
- V0–V3: 175V
- V0–V4: 200V
- V0–V5: 220V
- V5–V4: 20V
- V5–V3: 45V
- V5–V2: 110V
- V4–V3: 28V
- V4–V2: 90V
- V3–V2: 62V
15. Why does my multimeter show a high voltage at the output?
Because the output is a high-frequency square wave, a standard multimeter may provide an inaccurate or unusually high reading, particularly with no load.
16. Does the module provide pure sine-wave AC?
No. It produces high-frequency square-wave AC, so it should not be treated as a replacement for mains-quality sine-wave power.
17. Does the module require additional cooling?
For continuous or heavy loads, additional cooling such as a suitable heat sink is recommended, especially for loads around 100W or more.
18. Can I operate the module at the full 150W continuously?
The 150W rating depends on proper input power, cooling, wiring, and operating conditions. Adequate thermal management is important for higher loads.
19. What happens if the input polarity is reversed?
Reverse polarity can damage the module. Always verify the positive and negative DC connections before powering it.
20. Can I short-circuit the output?
No. Do not short-circuit the output, as this may damage the inverter module.
21. What type of power supply is required?
Use a suitable 12V DC power source capable of providing sufficient current for the intended load.
22. Can I use a small 12V adapter?
Only if the adapter can provide sufficient current for the required output power. Higher output power requires substantially higher input current.
23. Can the module be used for DIY electronics projects?
Yes. It is primarily intended as an inverter boost stage for DIY power-electronics and electronic projects.
24. Can it be used with switching power supplies?
Compatibility must be checked carefully. Some switching power supplies use rectifier components that may not tolerate the module's high-frequency AC output and can overheat or fail.
25. Is an external rectifier required for electronic applications?
For applications requiring DC output, an appropriately rated high-frequency rectifier and filtering circuit may be required. The components must be selected according to the voltage, current, and frequency.
26. What are the dimensions of the module?
The module measures approximately 58 × 58 × 28mm.
27. How much does the module weigh?
The module weighs approximately 120g.
28. Is this module safe to handle while powered?
No. The output can reach potentially hazardous voltage levels. Disconnect power before handling, wiring, soldering, or changing connections.
29. Is the module suitable for beginners?
It is intended for electronic DIY and power-conversion applications and should be handled by users familiar with high-voltage electrical safety.
30. What is included in the package?
The package includes 1 × 150W DC 12V to AC 110V/220V Inverter Boost Module Board.
31. Can the module be returned after soldering?
According to the provided product conditions, once the module has been soldered, it is not eligible for return.
32. Is the actual product exactly the same as shown in the images?
No. Product images are for representation only, and the actual product may vary slightly in colour, PCB markings, component placement, dimensions, or appearance depending on the manufacturing batch.
