1. Product Description

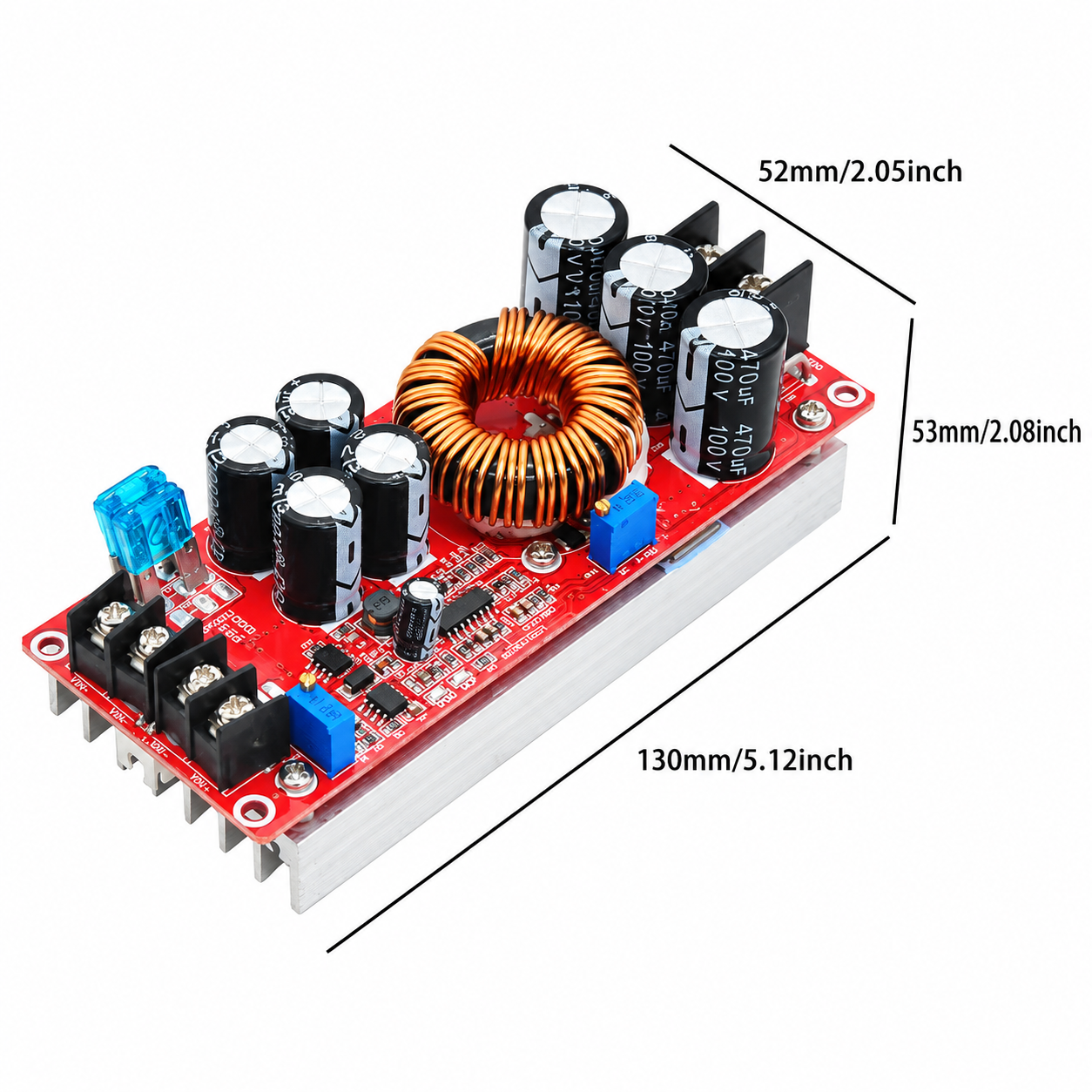

The 1200W DC-DC Boost Step-Up Converter is an adjustable power conversion module designed to increase a DC input voltage to a higher DC output voltage. With a specified input range of 10–60V DC and an adjustable output range of 12–83V DC, it is suitable for applications requiring flexible voltage regulation and current control.

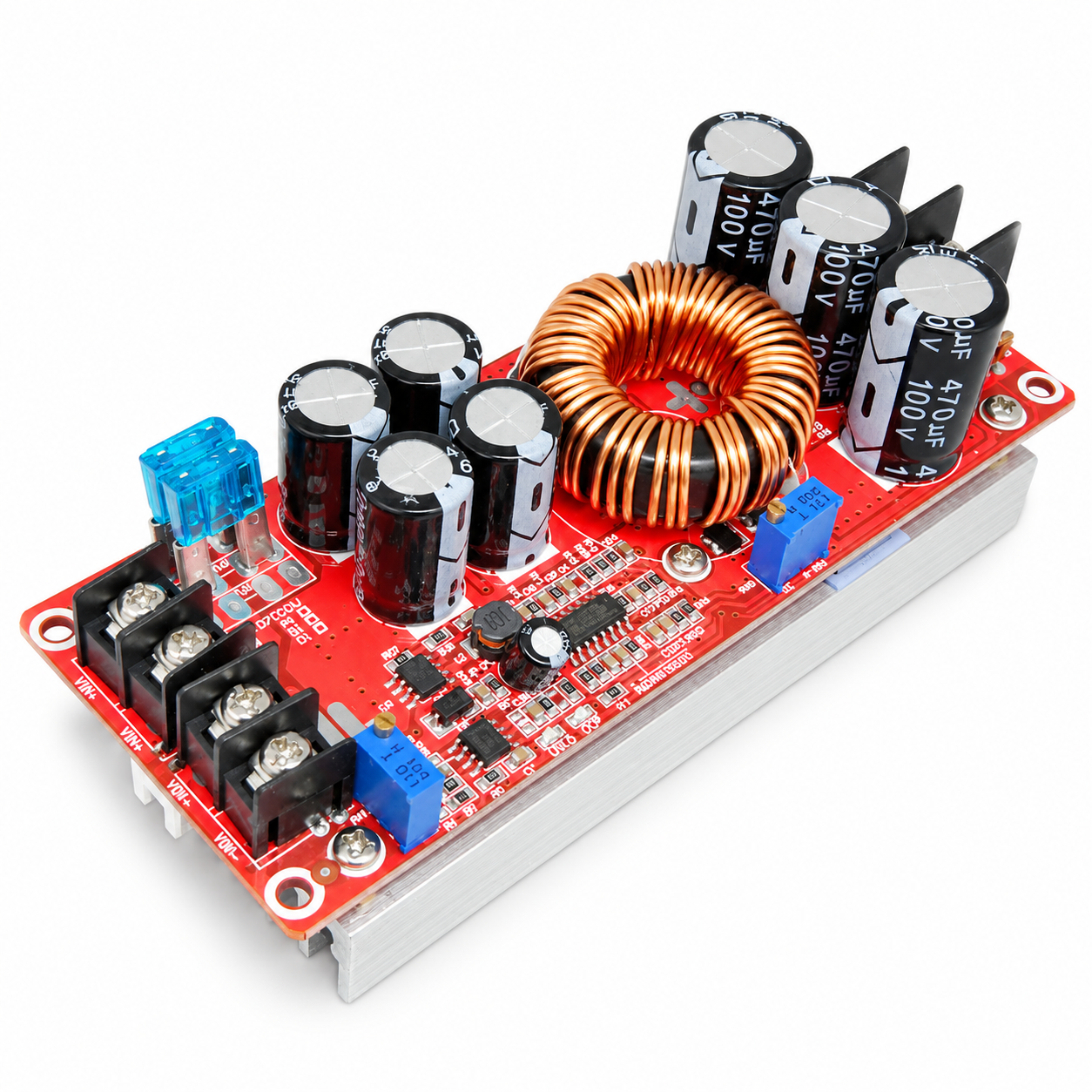

The module features two multiturn 3296 potentiometers, allowing separate adjustment of the output voltage and current. Its screw-terminal connections make wiring convenient, while the large heatsink helps dissipate heat during operation. An external cooling fan can be added when required to maintain suitable operating temperatures.

The converter includes overcurrent and short-circuit protection features, including an input fuse as specified by the supplier. It can be used in compatible high-power LED systems, battery charging arrangements, vehicle power systems, solar power projects, and adjustable DC power supplies.

Although the product is marketed as a 1200W converter, its actual usable output power depends on the input voltage, input current, output voltage, cooling, and operating conditions. The supplied specifications list a maximum input current of 20A and output current of 12A, so the 1200W headline rating should not be interpreted as guaranteed continuous output under all conditions.

2. Features

• DC-DC boost conversion: Increases a lower DC input voltage to a higher output voltage.

• Wide input voltage range: 10–60V DC according to the detailed specifications.

• Adjustable output voltage: 12–83V DC.

• Adjustable output current: Separate multiturn potentiometer for current adjustment.

• Voltage regulation: Output voltage can be adjusted using the onboard potentiometer.

• Overcurrent protection: Designed to reduce output voltage when the input current exceeds the specified operating range.

• Short-circuit protection: Includes a stated input fuse and additional protection circuitry.

• Large heatsink: Helps dissipate heat generated during power conversion.

• Cooling fan support: External cooling can be added when required.

• Screw-terminal connections: Simplifies input and output wiring.

• High conversion efficiency: Up to approximately 95%, as specified.

• Versatile applications: Suitable for compatible LED drivers, battery charging systems, vehicle power supplies, and adjustable DC power projects.

3. Specifications

Important specification notes:

• The product title states an input range of 8–60V, while the detailed description and specifications state 10–60V. Use 10–60V as the documented operating range unless the manufacturer confirms otherwise.

• The advertised 1200W rating should not be assumed to represent continuous output at every input and output voltage. The listed 12A output limit and thermal conditions may restrict the usable power.

• The stated maximum input current of 20A and output current of 12A should be treated as supplier specifications, not a guarantee of simultaneous operation at maximum voltage and current.

4. Working Principle

A boost converter uses switching circuitry and energy-storage components to increase a DC input voltage to a higher DC output voltage.

The input DC supply feeds the converter, where high-frequency switching controls the transfer of energy to the output. The output voltage is adjusted through the onboard voltage potentiometer, while the current adjustment potentiometer sets the current limit for compatible loads.

The heatsink helps dissipate heat produced during conversion. When operating at higher power levels, adequate ventilation and additional cooling may be necessary.

Because this is a step-up converter, the output voltage must be higher than the input voltage for normal boost operation. It cannot be relied upon to step the voltage down.

5. Voltage and Current Adjustment

The module features two multiturn 3296 potentiometers:

• Voltage adjustment: Sets the desired output voltage within the supported range.

• Current adjustment: Sets the current limit for the connected load.

Before connecting a load, set the output voltage to the required value and verify it with a suitable multimeter. Adjust the current limit according to the load’s requirements.

Make adjustments carefully, especially when charging batteries or powering high-voltage LED assemblies. The output may be hazardous even when the input voltage is relatively low.

6. Cooling and Heat Dissipation

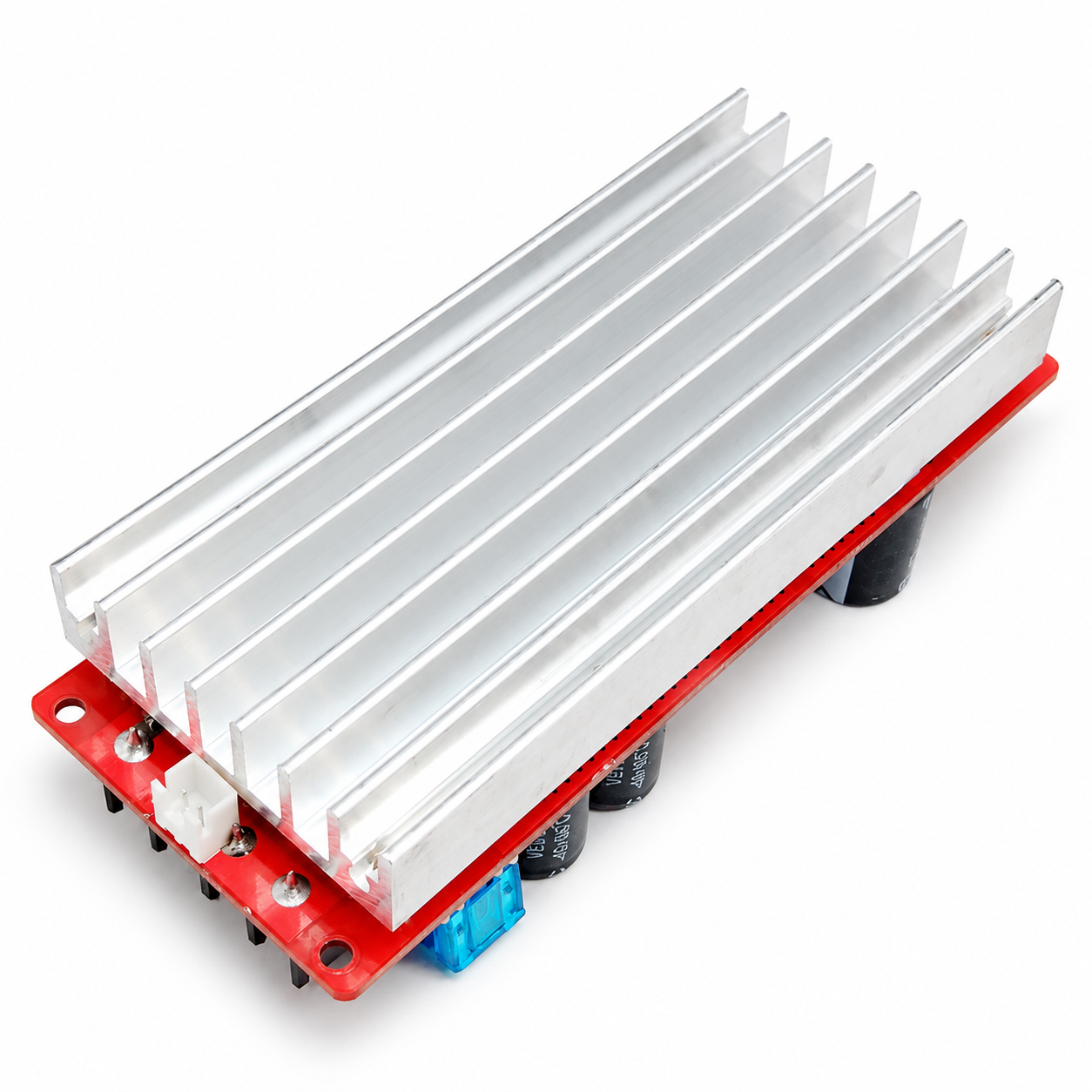

The converter includes a large heatsink to help dissipate heat during operation. An external cooling fan can be added when additional airflow is required.

The supplied instructions recommend adding a cooling fan if the module temperature exceeds approximately 65°C. Actual cooling requirements depend on output power, input voltage, ambient temperature, airflow, and installation.

For high-power operation:

• Provide adequate ventilation around the heatsink.

• Avoid enclosing the module in a space that traps heat.

• Use an appropriately rated external fan when necessary.

• Monitor operating temperature during initial testing.

• Reduce the load if the module overheats or its output becomes unstable.

7. Protection Features

Overcurrent Protection

The supplied description states that the converter can reduce its output voltage when input current exceeds the specified operating range. This helps limit excessive current under certain conditions.

Short-Circuit Protection

The module is described as having short-circuit protection, including an input fuse. The fuse rating and exact protection behaviour should be verified for the particular board version.

Note: Do not deliberately short the output to test the protection circuitry. Protection features do not replace correct wiring, suitable fusing, or safe operating practices.

8. Applications

The DC-DC Boost Step-Up Converter can be used in compatible applications such as:

• High-power LED driver systems

• Adjustable DC power supplies

• Compatible lithium battery charging systems

• Lead-acid battery charging systems

• Vehicle-mounted power supplies

• Low-voltage DC power systems

• Solar power projects

• Electronic equipment requiring a higher DC voltage

• Compatible laptop power arrangements

• Experimental electronics and power-conversion projects

Battery charging requires a charging profile appropriate for the battery chemistry, cell count, and manufacturer specifications. The converter alone should not be treated as a complete battery-management or charging-safety system.

9. Package Includes

– 1 × 1200W DC-DC Boost Step-Up Converter, adjustable 12–83V output

10. Product Disclaimer

• The module is a DC-to-DC boost converter, not an AC power supply or an isolated converter unless specifically stated by the manufacturer.

• Verify the input range for the exact board revision; the supplied information contains a discrepancy between 8V and 10V as the minimum input voltage.

• Actual output power depends on the input voltage, available input current, output voltage, efficiency, cooling, and operating conditions.

• Do not assume that 1200W continuous output is available throughout the voltage range.

• Check the output voltage with a multimeter before connecting sensitive equipment.

• The module’s output can be hazardous at high voltages. Disconnect the input supply before changing wiring.

• Use appropriate fuses, insulated terminals, suitable wire gauges, and adequate ventilation.

• Battery charging requires suitable voltage, current regulation, and battery-specific safety controls.

• The exact fuse rating and protection thresholds are not provided in the supplied specifications and should be verified with the manufacturer.

Note: The product images are for illustration and representation purposes only. The actual product may slightly differ in appearance, colour, design, or component placement from the images shown due to manufacturing variations and production batches.
