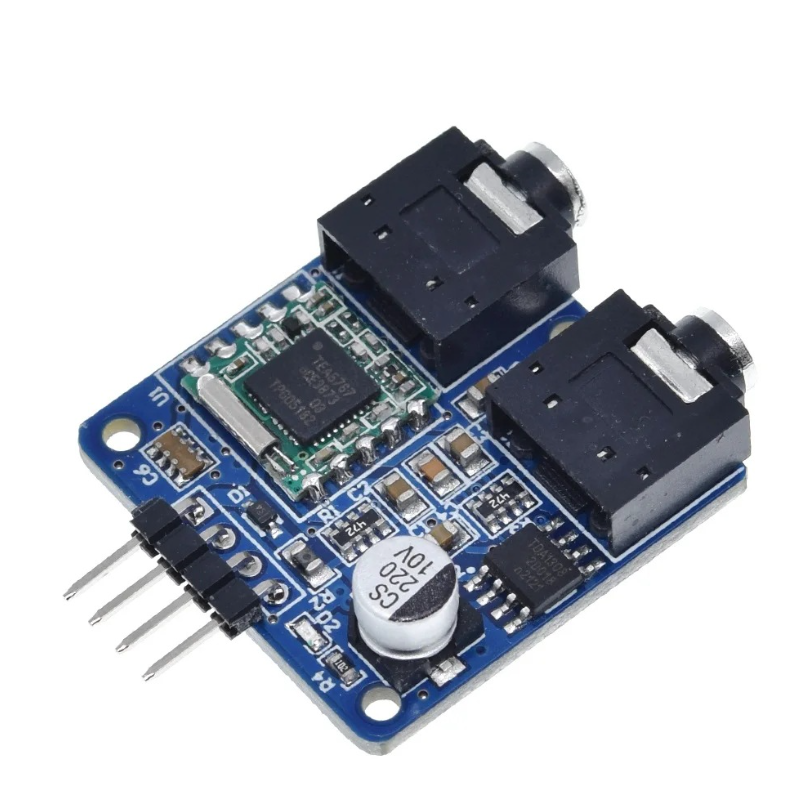

TEA5767 Stereo FM Radio Module without Antenna
₹306.80 incl. GST (₹260.00 + GST)
The TEA5767 Stereo FM Radio Module is a compact I2C-controlled FM receiver with electronic tuning, built-in demodulation, AGC, and a 3.5mm audio output. Compatible with Arduino, ESP32, and Raspberry Pi, it is ideal for DIY FM radios, portable audio systems, embedded projects, and educational electronics.
TEA5767 Stereo FM Radio Module
Product Description
The TEA5767 Stereo FM Radio Module is a compact FM receiver board based on the TEA5767 single-chip FM radio IC. It provides electronically tuned FM reception with integrated IF selectivity and demodulation, making it suitable for DIY radio receivers, portable audio projects, educational electronics, and embedded FM tuner applications.
The module uses an I2C interface for digital tuning and control, allowing easy integration with Arduino, ESP32, Raspberry Pi, and other compatible microcontrollers.
Electronic FM Tuning
The TEA5767 uses electronic tuning, allowing the FM frequency to be selected through the I2C interface without requiring manual adjustment. Its integrated receiver circuitry helps provide stable FM reception with simple external connections.
Audio Output
The module includes a standard 3.5mm audio output jack, allowing connection to compatible earphones or an external amplifier for listening to received FM broadcasts.
Low-Noise Reception
The module includes a low-noise RF amplifier, automatic gain control (AGC), soft mute, and integrated FM demodulation, helping provide stable reception and convenient control for embedded radio applications.
Key Features
- Based on TEA5767 FM receiver IC
- Stereo FM reception
- I2C digital tuning and control
- Built-in FM demodulator
- Integrated IF selectivity
- Low-noise RF amplifier
- Automatic Gain Control (AGC)
- Soft mute function
- 3.5mm audio output jack
- Power status LED
- Reverse polarity protection
- Onboard power filtering
- Compatible with Arduino, ESP32, and Raspberry Pi
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Stereo FM Radio Receiver |
| Main IC | TEA5767 |
| Tuning Method | Electronic / I2C Controlled |
| Interface | I2C |
| Audio Output | 3.5mm Jack |
| Reception | FM Stereo |
| RF Amplifier | Low-Noise |
| Gain Control | Automatic Gain Control (AGC) |
| Mute | Soft Mute |
| Power Indicator | LED |
| Polarity Protection | Supported |
Working Principle
The TEA5767 receives FM radio signals through a suitable external antenna and processes them using its integrated RF amplifier, IF section, and FM demodulator.
A connected microcontroller communicates with the module through I2C to select and tune the desired FM frequency. The recovered audio signal is then available through the module’s 3.5mm output jack.
I2C Control
The I2C interface allows the module to be controlled digitally from compatible development boards. This makes it possible to develop projects with functions such as:
- Electronic FM tuning
- Frequency selection
- Radio scanning
- Station selection
- Microcontroller-controlled radio interfaces
Typical Application Scenarios
FM Radio Projects
Suitable for building DIY FM receivers and digital radio projects.
Portable Audio
Can be integrated into portable FM radios and compact audio systems.
Educational Electronics
Useful for learning about FM reception, I2C communication, and embedded audio systems.
Embedded Tuner Systems
Suitable for adding FM radio reception to custom electronic products and microcontroller-based projects.
Applications
- DIY FM radios
- Portable FM receivers
- Stereo audio projects
- Arduino FM radio projects
- ESP32 radio projects
- Raspberry Pi radio projects
- Embedded FM tuners
- Educational electronics
- Portable audio systems
- Custom radio projects
Package Includes
- 1 × TEA5767 Stereo FM Radio Module
Note: Antenna is not included.
Important Note
Antenna
The antenna is not included with the module. A suitable external antenna may be connected for FM reception.
I2C Interface
The module requires an I2C-capable controller for electronic tuning and configuration.
Audio Connection
The onboard 3.5mm audio jack can be connected to compatible headphones or an external amplifier.
Product Disclaimer
Product information may vary between manufacturers, suppliers, and production batches. Please verify the actual module specifications, connector configuration, and supported features before using it in a critical application.
Product images are for illustrative purposes only and may differ from the actual product in colour, component placement, connector design, or other visual details.
Frequently Asked Questions
1. What is the TEA5767 FM Radio Module?
The TEA5767 is a compact stereo FM receiver module designed for DIY radio and embedded audio projects.
2. How is the module controlled?
It uses an I2C interface for electronically tuning and controlling the FM receiver.
3. Can I use it with Arduino or ESP32?
Yes. It can be interfaced with Arduino, ESP32, Raspberry Pi, and other compatible microcontrollers.
4. Does it have an audio output?
Yes. The module includes a 3.5mm audio output jack for connecting earphones or an external amplifier.
5. Is an antenna included?
No. The antenna is not included. An external antenna can be connected as required.
6. Does it require manual tuning?
No. The module uses electronic I2C tuning and is designed to operate without manual adjustment.
7. Does it have a power indicator?
Yes. An onboard LED indicates power status.
8. What features does the TEA5767 provide?
It includes FM demodulation, IF selectivity, AGC, soft mute, and a low-noise RF amplifier.
9. What can this module be used for?
It is suitable for FM radio receivers, portable radios, DIY audio systems, educational projects, and embedded FM tuner applications.
10. What is included in the package?
The package includes 1 × TEA5767 Stereo FM Radio Module. The antenna is not included.
