Name: RC522 Mini RFID 13.56MHz IC Card Reader Writer Module - robosap.in
SKU: ri-3804
Price: 79.00 INR
Availability: InStock

The RC522 Mini RFID IC Card Reader/Writer Module is a compact and reliable 13.56MHz contactless RFID module based on the MFRC522 chip. It is designed for reading and writing compatible RFID cards and tags in embedded electronics, automation, security, access control, and IoT applications. Its compact size and low power consumption make it suitable for portable devices, prototype boards, and space-constrained projects.

The module communicates with a host microcontroller through the SPI (Serial Peripheral Interface), providing reliable and fast data communication. It can be integrated with popular development platforms such as Arduino, ESP32, ESP8266, Raspberry Pi, and STM32, making it suitable for both beginner and advanced electronics projects.

The RC522 operates at 13.56MHz and supports compatible MIFARE cards and tags, including MIFARE S50, S70, Ultralight, and Pro. It can be used to develop RFID-based access control systems, smart locks, attendance systems, inventory tracking devices, identification systems, and other automated security applications.

Its contactless operation allows cards and tags to be detected without physical connection to the reader. The module is particularly useful for projects that require convenient RFID identification and data exchange in a compact form factor.

Features

Compact and lightweight RFID reader/writer module
Based on the MFRC522 RFID chip
Operating frequency of 13.56MHz
Supports contactless RFID communication
Uses SPI interface for microcontroller communication
Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other suitable controllers
Supports compatible MIFARE S50, S70, Ultralight, and Pro cards
Supports RFID card reading and supported card operations
Low power consumption
Suitable for battery-powered applications
Compact design for space-constrained projects
Suitable for breadboard and prototype development
Easy to integrate into embedded electronics projects
Suitable for RFID access-control applications
Useful for smart-lock and identification systems
Suitable for IoT and automation projects
Ideal for educational and DIY electronics applications

Specifications

Parameter	Specification
Product Type	RFID Reader/Writer Module
Controller IC	MFRC522
Operating Frequency	13.56MHz
Communication Interface	SPI
RFID Technology	Contactless
Supported Cards	MIFARE S50, S70, Ultralight, Pro
Logic Voltage	3.3V
Compatible Platforms	Arduino, ESP32, ESP8266, Raspberry Pi, STM32
Application	RFID Reading, Writing, Access Control & Identification

Design and Construction

The RC522 Mini RFID module features a compact PCB design that integrates the MFRC522 RFID controller and antenna into a small form factor. Its lightweight construction makes it convenient for installation in embedded systems, prototypes, portable devices, and custom electronic enclosures.

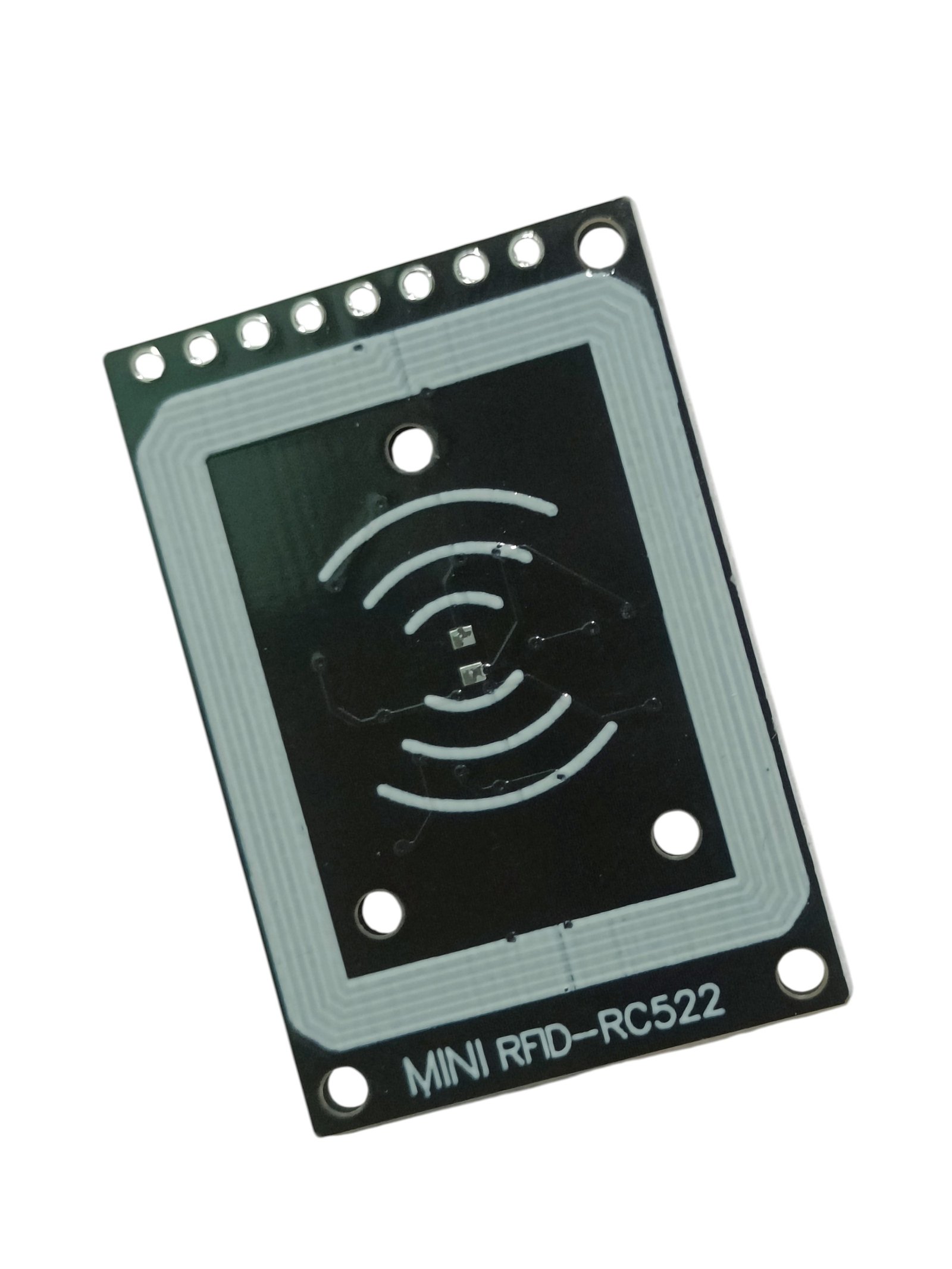

The integrated RFID antenna enables the module to communicate wirelessly with compatible 13.56MHz RFID cards and tags. The compact board design helps reduce the space required for RFID functionality in electronic projects.

The module provides convenient interface connections for communication with a host microcontroller. Its SPI interface makes it easy to connect to development boards and embedded controllers that support SPI communication.

The RC522 is designed for 3.3V operation, making it suitable for many modern microcontrollers and development boards. Proper voltage-level compatibility should be maintained when connecting the module to a controller.

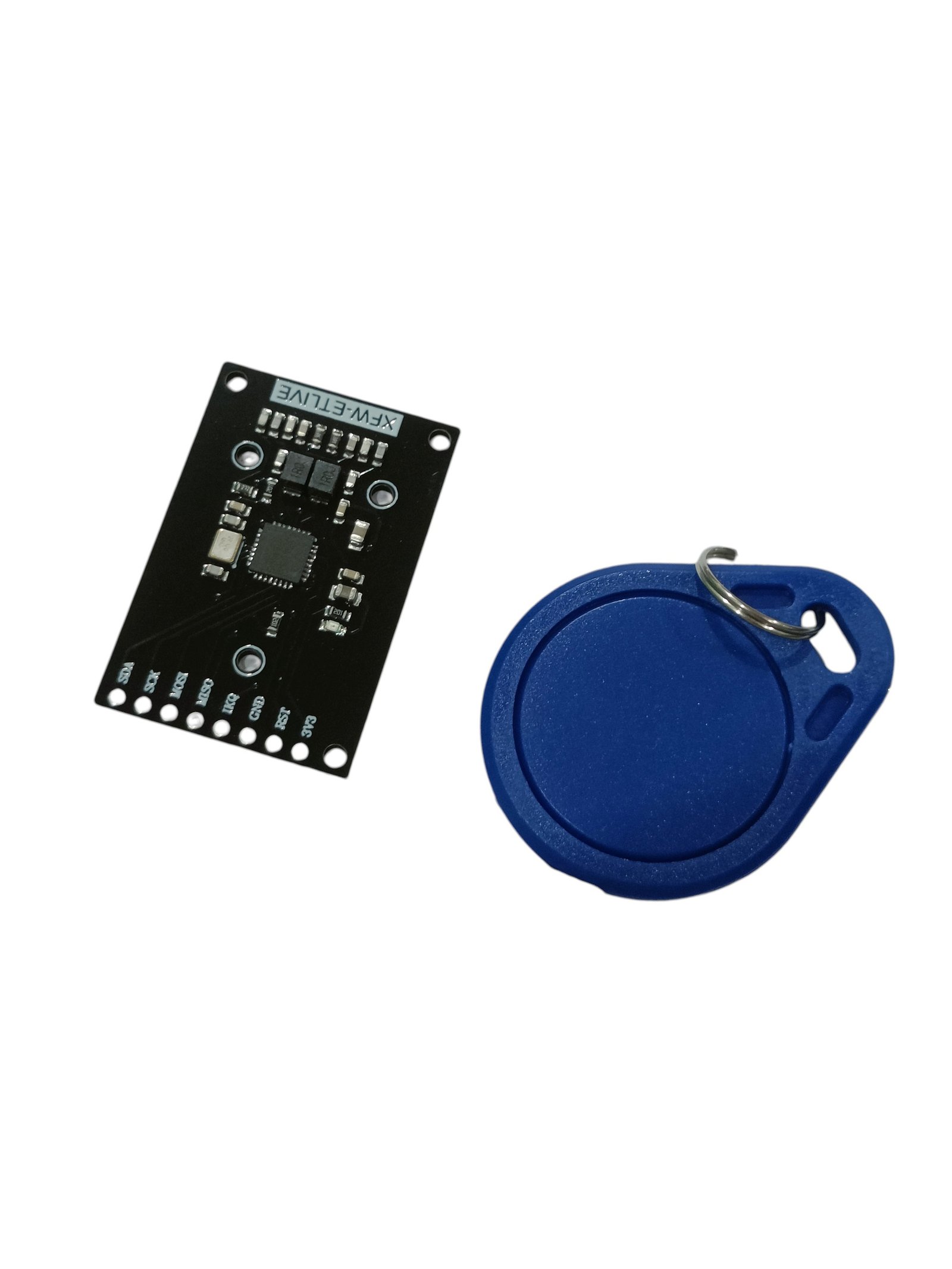

RC522 Mini RFID IC Card Reader Writer Module reference image

Working Principle

The RC522 works by generating a 13.56MHz electromagnetic field through its integrated antenna. When a compatible RFID card or tag is placed within the reader’s operating range, the module establishes contactless communication with the RFID device.

The MFRC522 chip handles the RFID communication and exchanges data with the compatible card or tag. The card information is then processed by the connected microcontroller through the SPI interface.

A microcontroller can use the received RFID information to identify a user, verify access permissions, record attendance, track inventory, activate a lock, or perform other programmed actions.

For supported cards, the module can also perform appropriate read and write operations depending on the card type, authentication requirements, memory structure, and software implementation.

The RC522 is a passive RFID interface module and requires a compatible microcontroller and suitable software to process card information and control the connected application.

Applications

RFID access control systems
Smart door locks
Electronic security systems
Student attendance systems
Employee attendance systems
RFID identification systems
Inventory tracking systems
Asset tracking applications
Smart lockers
RFID authentication systems
IoT access-control systems
Automated identification systems
Arduino RFID projects
ESP32 RFID projects
ESP8266 RFID projects
Raspberry Pi RFID projects
STM32 RFID projects
DIY electronics projects
Educational RFID projects
Embedded security systems
Automation projects
Custom RFID readers
Smart home projects
Electronic payment and token-based projects
RFID-based automation systems

Package Includes

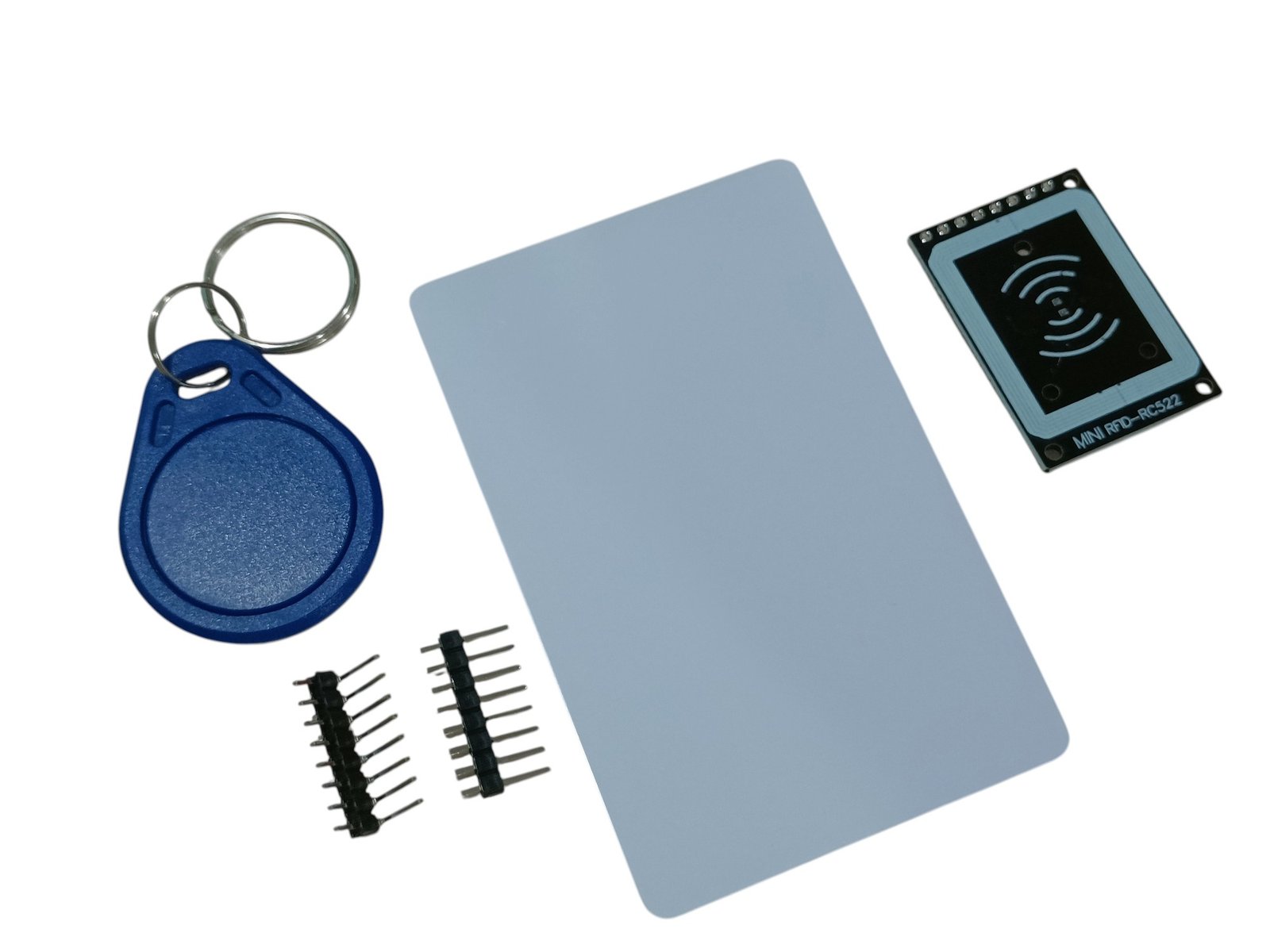

1 × RC522 Mini RFID Reader Writer Module

Product Disclaimer

Product images are shown for illustrative and representational purposes only. The actual product may vary slightly in colour, dimensions, PCB layout, antenna pattern, component arrangement, or appearance depending on the manufacturing batch.

RFID cards, RFID tags, microcontrollers, connecting wires, breadboards, power supplies, enclosures, and other components shown in product images are not included unless specifically mentioned in the package contents.

The RC522 is designed for 13.56MHz RFID applications and is not compatible with common 125KHz RFID cards. Please verify that the RFID card or tag being used is compatible with the module before installation.

The module is intended for 3.3V operation. Avoid applying 5V directly to the module’s power or logic connections unless an appropriate voltage-level conversion arrangement is used. Improper voltage may damage the module.

Compatibility with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other controllers depends on the available SPI interface, software libraries, wiring configuration, and operating voltage.

FAQs

1. What is the RC522 RFID module used for?
The RC522 is a 13.56MHz contactless RFID reader/writer module used to read and write compatible RFID cards and tags. It is commonly used in access control, smart locks, attendance systems, identification, inventory tracking, and IoT projects.

2. Which RFID cards are compatible with the RC522?
The module is designed to work with compatible 13.56MHz MIFARE cards and tags, including MIFARE 1 S50, MIFARE 1 S70, MIFARE Ultralight, and MIFARE Pro.

3. What RFID chip does the module use?
The RC522 module is based on the MFRC522 RFID reader/writer IC, which handles contactless communication with compatible RFID cards and tags.

4. What communication interface does the RC522 use?
The module primarily communicates with a host microcontroller through the SPI (Serial Peripheral Interface). This provides fast communication and makes the module easy to integrate with many development boards.

5. Which development boards can be used with the RC522?
The RC522 can be used with popular platforms such as Arduino, ESP32, ESP8266, Raspberry Pi, and STM32, provided the appropriate SPI connections, libraries, and voltage levels are used.

6. What is the operating frequency of the RC522?
The RC522 operates at 13.56MHz, which is commonly used for MIFARE and other compatible high-frequency RFID cards and tags.

7. Can the RC522 read and write RFID cards?
Yes. The module supports reading and writing compatible RFID card data, depending on the card type, supported memory sectors, authentication requirements, and software being used.

8. Is the RC522 a contactless RFID reader?
Yes. It uses contactless radio-frequency communication, so the RFID card or tag does not need to physically touch the module. The card must simply be placed within the module's effective reading range.

9. What voltage does the RC522 module use?
The RC522 is designed for 3.3V operation. Its logic connections should be used with appropriate 3.3V-compatible signals. Avoid connecting 5V logic directly to the module unless a suitable level-shifting solution is used.

10. Can the RC522 be used with an Arduino?
Yes. The RC522 is widely used with Arduino boards through the SPI interface. A suitable RFID library can be used to detect cards, read their identification information, and perform supported card operations.

11. Can the RC522 be used with ESP32 and ESP8266?
Yes. The RC522 can be connected to ESP32 and ESP8266 development boards using their SPI interface. Proper wiring and 3.3V logic levels should be maintained.

12. What are the common applications of the RC522 module?
Common applications include RFID door locks, access control, attendance systems, inventory management, identification systems, authentication projects, smart lockers, IoT devices, and educational electronics projects.

13. Is the RC522 suitable for smart-lock projects?
Yes. The module can be used as the RFID identification component in a smart-lock system. A microcontroller can verify the detected card and control a relay, servo motor, solenoid, or other locking mechanism.

14. Does the RC522 require an external RFID antenna?
The commonly available RC522 module includes an integrated PCB antenna, so an additional external antenna is generally not required for normal operation.

15. What is the reading range of the RC522?
The effective reading distance depends on the RFID card/tag, antenna design, orientation, power supply, surrounding materials, and operating environment. It is intended for short-range contactless RFID applications rather than long-distance RFID reading.

16. Can the RC522 read 125KHz RFID cards?
No. The RC522 operates at 13.56MHz and is designed for compatible 13.56MHz RFID technologies. It cannot directly read common 125KHz RFID cards.

17. Can the RC522 be used for attendance systems?
Yes. Each authorized RFID card can be assigned to a user, and the microcontroller can record the card's identification information along with the date and time to create an automated attendance system.

18. Is the RC522 suitable for beginners?
Yes. Its compact design, SPI interface, and compatibility with popular development boards make it a popular choice for students, hobbyists, makers, and beginners learning RFID and embedded programming.

19. Can the RC522 be connected directly to a 5V Arduino board?
The RC522 module itself is designed for 3.3V operation, so care should be taken when connecting it to a 5V Arduino board. The power supply and signal levels should be compatible with the RC522, and appropriate level shifting may be required for safe operation.

20. What is the main advantage of the RC522 Mini module?
Its main advantages are its compact size, low power consumption, 13.56MHz contactless operation, SPI communication, and compatibility with widely used MIFARE RFID cards, making it convenient for embedded and DIY RFID applications.
