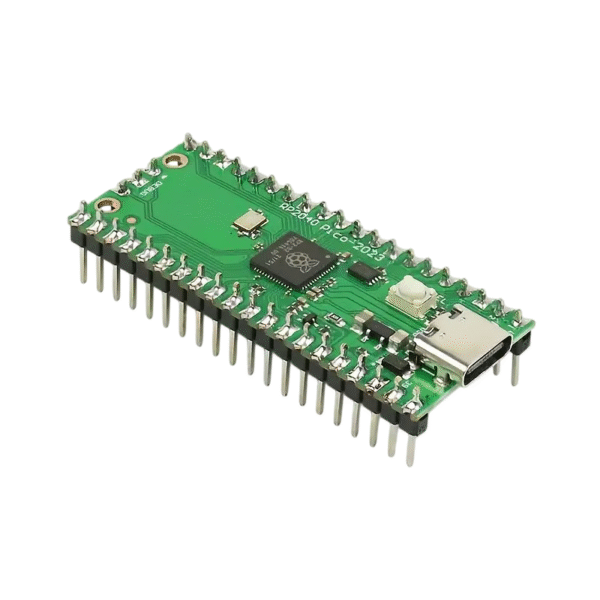

Raspberry Pi Pico Compatible Development Board USB C with Headers (Soldered Version)
₹214.00 excl GST
Package Contains: 1 Nos Raspberry Pi Pico Compatible Development Board USB C with Headers (Soldered Version)
Compare
- RP2040 microcontroller chip designed by Raspberry Pi
- Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- The castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Onboard temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Specification:
| Item Type: | Dev. Board |
|---|---|
| Model Type | Pi Pico |
| Model | Raspberry Pi PICO |
| Operating Voltage (VDC): | 1.8 ~ 5.5 |
| Processor | RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi |
| Interface | 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels |
| RAM | 264 KB |
| GPIO | 26 Pins |
| Clock Speed | 133 MHz |
| On Board Ports | Micro-USB 5V/2.5A DC Power Input Port |
| Operating Temperature (°C) | -20 to 85 |
| Length (mm): | 51 |
| Width (mm): | 21 |
| Height (mm): | 4 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 2 × 1 cm |
This is an soldered Version. If you want soldered version please purcahse from here.
Please note: This a compatible version of Raspberry Pi Pico. Images are for representation only. Actual Image of the product may vary slightly in appreance.
