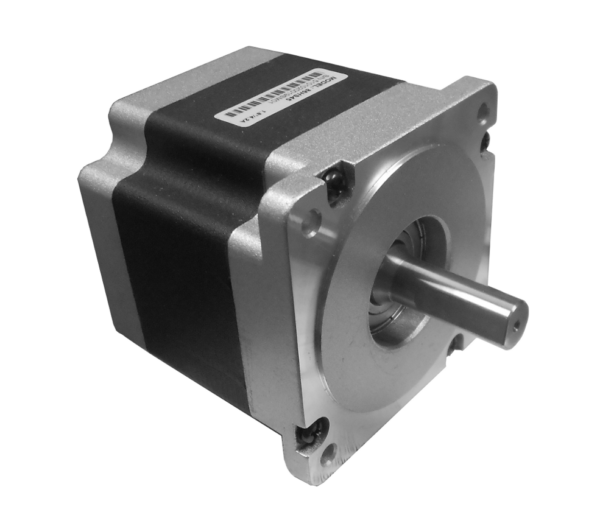

Nema 34 46 Kg-Cm Bipolar Hybrid Stepper Motor

Specifications –

Rated Voltage (V) – 4.2
Current/ phase (A) – 4
Inductance/ ph. mH – 7.3
Resistance/ phase (ohms) – 0.87
Holding Torque (kg-cm) – 46
No. of Leads – 4
Length (mm) – 80
Step Angle – 1.8?
Step Angle Accuracy – ?5% (full step, no load)
Resistance Accuracy – ?10%
Inductance Accuracy – ?20%
Frame Size (mm) – 85×85
Shaft Length (mm) – 32
Shaft Diameter (mm) ? 12
