MG946R Digital Metal Gear Servo Motor – High Torque
₹295.00 incl. GST (₹250.00 + GST)
The MG946R Digital High Torque Metal Gear Servo Motor is a powerful and affordable servo designed for robotics, RC cars, aircraft, and DIY automation projects. It features durable Aluminum 6061-T6 metal gears, digital control, and up to 13 kg.cm torque at 6V. Operating at 4.8V–7.2V, it uses a standard JR/Futaba-compatible connector. Servo horns, screws, and grommets are included.
MG946R Digital High Torque Metal Gear Servo Motor
Product Description
The MG946R Digital High Torque Metal Gear Servo Motor is a powerful and cost-effective servo motor designed for robotics, RC models, automation, and DIY projects. It provides strong torque, precise digital control, and durable metal gearing, making it suitable for applications such as robotic arms, grippers, RC steering, aircraft control surfaces, and pan-tilt mechanisms.
This servo is a high-quality generic reproduction and not an original TowerPro servo. It is intended as a budget-friendly option for general hobby and DIY applications.
Budget-Friendly Performance
The MG946R offers a practical combination of high torque, digital control, and affordable pricing. It is suitable for student projects, hobby robotics, prototypes, and general-purpose applications where cost-effective servo performance is required.
For critical or high-precision applications, premium servo ranges such as EMAX or Orange may be more suitable.
Upgraded Metal Gearing
The servo features an upgraded Aluminum 6061-T6 gear and shaft system, offering a lightweight and durable construction. The metal gearing is designed to withstand higher mechanical loads and provide reliable operation in demanding hobby applications.
Universal Connectivity
The MG946R uses a standard JR / “S” type servo connector, providing compatibility with many common RC receivers and servo controllers. It can be used with systems from brands such as Futaba, Hitec, GWS, Cirrus, Blue Bird, Corona, and Spektrum.
Key Features
- High torque digital servo
- Metal Aluminum 6061-T6 gears
- Strong holding performance
- Standard JR / “S” type connector
- Futaba-compatible interface
- Suitable for robotics and RC applications
- Cost-effective generic alternative
- Servo horns and mounting accessories included
Technical Specifications
| Feature | Specification |
|---|---|
| Model | MG946R (Generic) |
| Gear Material | Metal – Aluminum 6061-T6 |
| Control System | Digital |
| Operating Voltage | 4.8V – 7.2V |
| Stall Torque | ~10.5 kg.cm at 4.8V / ~13 kg.cm at 6V |
| Operating Speed | ~0.20 sec/60° at 4.8V |
| Connector Type | JR / “S” Type |
| Cable Length | ~30cm |
| Weight | ~55g |
Wiring Configuration
- Red: Positive (+)
- Brown: Negative (-)
- Orange: Signal (PWM)
Typical Application Scenarios
Robotics
Suitable for bipedal robots, robotic arms, manipulators, grippers, and mechanical joints.
RC Models
Can be used for RC car steering and aircraft control surfaces where suitable torque is required.
DIY Projects
Ideal for pan-tilt camera systems, automation mechanisms, custom vehicles, and mechanical prototypes.
Applications
- Robotic arms
- Robotic grippers
- Bipedal robots
- RC cars
- RC aircraft
- RC steering systems
- Camera pan-tilt systems
- DIY automation
- Mechanical prototypes
- Student projects
- Hobby robotics
- Custom vehicle projects

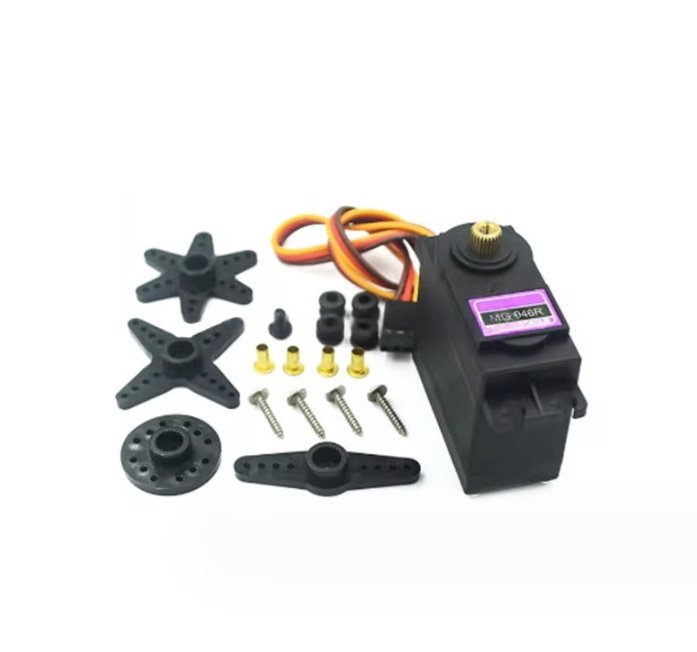

Package Includes
- 1 × MG946R Digital High Torque Metal Gear Servo Motor
- 1 × Accessories Set with Servo Horns, Screws, and Grommets
Product Disclaimer
Product information provided on our website may not be entirely accurate as specifications can vary between manufacturers, suppliers, and production batches. Please verify the product specifications before using the servo in critical applications.
Product images are for illustrative purposes only and may differ from the actual product in colour, markings, construction, or other visual details.
This product is a generic reproduction and is not an original TowerPro servo.
Important Note
Power Supply
High-torque servos can draw significant current during operation, particularly under load. It is recommended to power the servo using a suitable external power supply or BEC rather than directly from a microcontroller’s 5V pin.
An inadequate power supply can cause voltage drops, servo jitter, unstable operation, or microcontroller resets.
Wiring Safety
Always verify the servo wiring and operating voltage before connecting it to your controller. Ensure the power supply can provide sufficient current for the servo’s operating conditions.
Recommended Related Products
Explore relevant alternatives and complementary products selected from the full Robosap catalogue.
- TD-8135MG 35KG 180° High Torque Digital Metal Gear Servo Motor
- TD-8130MG 30KG 180° High Torque Digital Metal Gear Waterproof Servo Motor
- MG958 Digital Metal Gear Servo Motor – 20kg High Torque
- MG996R Metal Gear Digital Servo Motor – 11kg High Torque
- MG995 High Torque Metal Gear Servo motor 180 Deg
- MG996R Metal Gear Continuous Rotation Servo Motor 360 Deg
Frequently Asked Questions
1. What is the MG946R Servo Motor?
The MG946R is a digital high-torque metal gear servo motor designed for robotics, RC models, automation, and DIY projects.
2. Is the MG946R an original TowerPro servo?
No. This product is a generic reproduction, not an original TowerPro servo.
3. What is the operating voltage?
The servo operates from 4.8V to 7.2V.
4. What is the stall torque?
The specified stall torque is approximately 10.5 kg.cm at 4.8V and 13 kg.cm at 6V.
5. What type of gears does it use?
It uses metal Aluminum 6061-T6 gears and shaft components.
6. Is the MG946R a digital servo?
Yes. It uses a digital control system.
7. Can I use the MG946R with Arduino?
Yes. It can be controlled using Arduino or another compatible controller with PWM servo control.
8. Can I use it with ESP32?
Yes. The signal can be controlled from an ESP32, but the servo should be powered from a suitable external supply.
9. What connector does it use?
It uses a standard JR / “S” type servo connector.
10. Are servo horns included?
Yes. The package includes servo horns, screws, and grommets.
11. Can it be used for robotic arms?
Yes. Its high torque and metal gearing make it suitable for many robotic arm, gripper, and mechanical joint applications.
12. Can it be used for RC cars?
Yes. It can be used for RC steering and other suitable RC mechanisms.
13. Is a power supply included?
No. A suitable external power supply or BEC may be required for high-current applications.Only logged in customers who have purchased this product may leave a review.
