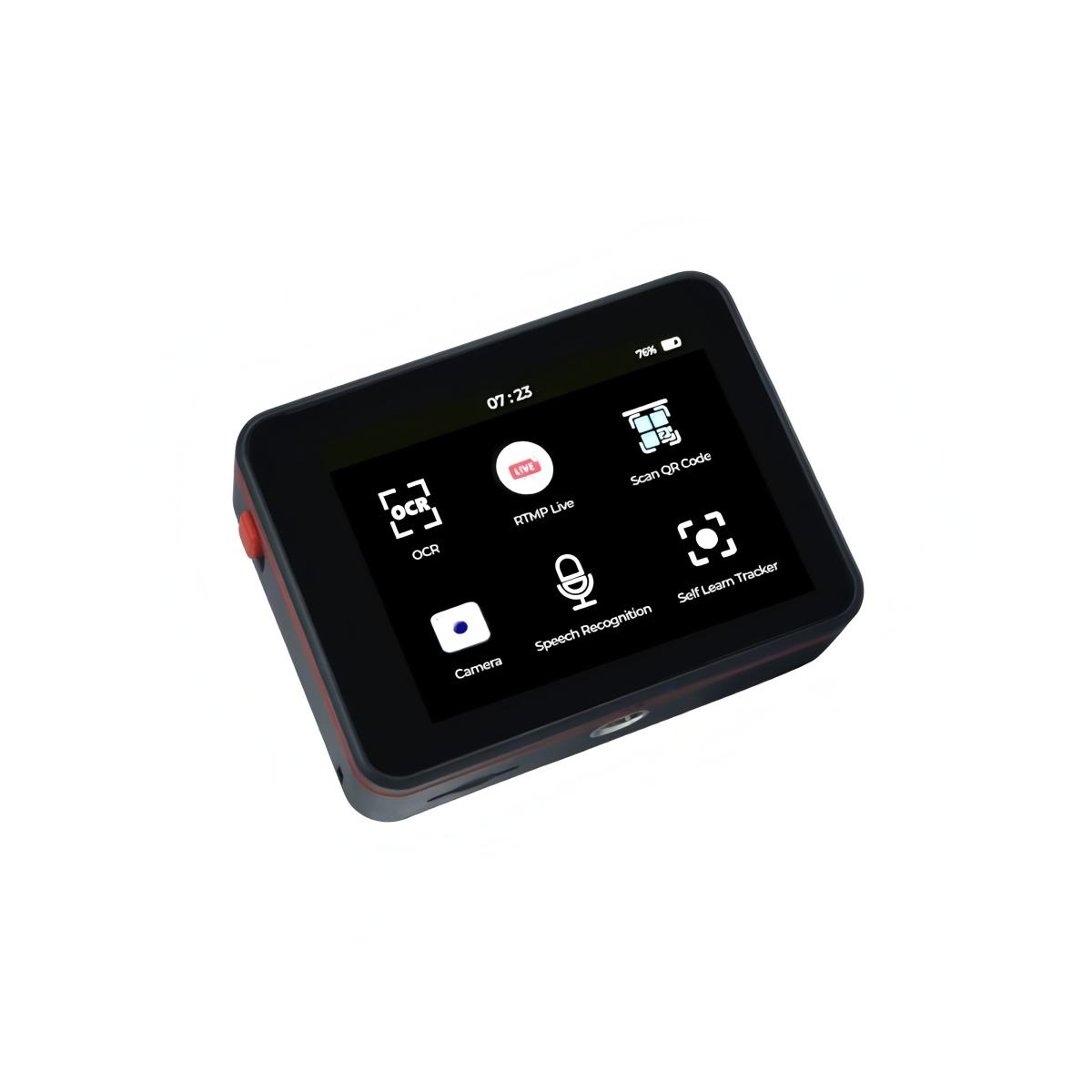

MaixCAM2 AI Vision & Audio Development Platform – 4GB 2K 64GB eMMC

Product Description

The MaixCAM2 is an advanced AI vision and audio development platform designed for edge AI deployment, computer vision, robotics, IoT, machine learning, and intelligent automation. It combines powerful AI processing, high-resolution imaging, audio capabilities, wireless connectivity, and a flexible software ecosystem in a compact development platform.

Powered by the Axera AX630C processor, the MaixCAM2 features a dual-core Cortex-A53 CPU, RISC-V core, and dedicated NPU for high-speed AI inference. With 4GB LPDDR4 memory and 64GB eMMC storage, it provides ample resources for running AI models, storing applications, and handling vision-based workloads.

The platform supports 2K camera input and includes a built-in 2.4-inch IPS capacitive touchscreen with 640×480 resolution, making it suitable for interactive AI applications and real-time monitoring. Integrated dual microphones and a 1W speaker enable voice input and audio output for speech-enabled projects.

With Wi-Fi 6, BLE 5.4, USB Type-C, 6-axis IMU, RTC, and Ethernet support through an FPC-to-RJ45 module, the MaixCAM2 provides a versatile hardware platform for developing intelligent edge devices.

Features

• Advanced AI vision and audio development platform
• Axera AX630C processor
• Dual-core Cortex-A53 CPU at 1.2GHz
• Integrated RISC-V E907 32-bit core
• Dedicated NPU for high-speed AI inference
• Up to 12.8 TOPS @ INT4 / 3.2 TOPS @ INT8
• 4GB LPDDR4 memory
• 64GB eMMC storage
• Supports 2K camera resolution
• 2.4-inch IPS capacitive touchscreen
• 640×480 display resolution
• Dual microphones for audio input
• 1W speaker with amplifier
• Wi-Fi 6 + BLE 5.4
• Ethernet support via FPC-to-RJ45 module
• USB Type-C 2.0 interface
• 6-axis IMU
• Built-in RTC with backup battery
• H.264, H.265, and MJPEG video codec support
• Supports MaixPy and MaixCDK
• Compact design for embedded and portable applications

Specifications

AI Processing

The MaixCAM2 is designed for edge AI applications, allowing AI models to perform inference locally. Its dedicated NPU provides accelerated processing for computer vision, machine learning, and intelligent automation tasks.

It can be used for applications such as:

• Object detection
• Image classification
• Face detection
• Machine vision
• Smart camera systems
• Gesture recognition
• Visual inspection
• Robotics vision
• Intelligent monitoring
• AI-assisted automation

2K Vision Support

The platform supports 2K high-resolution imaging, making it suitable for applications that require detailed visual information. It can be used for smart cameras, image processing, machine vision, object recognition, and other computer vision applications.

Display and Touchscreen

The integrated 2.4-inch IPS capacitive touchscreen provides a convenient interface for interacting with applications. Its 640×480 resolution allows developers to display camera feeds, AI results, menus, system information, and other project data.

Audio Capabilities

The MaixCAM2 includes dual microphones for audio capture and a 1W speaker with amplifier for audio output. This enables the development of voice-enabled applications, audio feedback systems, intelligent assistants, and interactive AI devices.

Wireless Connectivity

The built-in Wi-Fi 6 and BLE 5.4 connectivity enables wireless communication with networks, smartphones, computers, sensors, and other devices. This makes the platform suitable for connected AI and IoT applications.

Software Support

The MaixCAM2 supports the MaixPy and MaixCDK development ecosystems.

• MaixPy: Enables Python-based development and rapid prototyping.
• MaixCDK: Provides a C/C++ development environment for advanced applications.

This software flexibility makes the platform suitable for beginners, students, researchers, hobbyists, and professional developers.

Additional Features

6-Axis IMU

The built-in 6-axis IMU provides motion and orientation information, making the board suitable for robotics, motion-sensitive devices, and portable applications.

Real-Time Clock

The BM8563EMA RTC with backup battery provides timekeeping functionality for applications requiring timestamps and real-time scheduling.

Video Codec Support

The platform supports H.264, H.265, and MJPEG, providing flexibility for video processing, streaming, recording, and computer vision applications.

Applications

• AI computer vision
• Smart cameras
• Robotics
• Machine vision
• Industrial automation
• AIoT applications
• Voice interaction systems
• Intelligent monitoring
• Object detection
• Image recognition
• IoT devices
• Embedded AI systems
• Educational projects
• Research and development
• Rapid product prototyping

Package Includes

• 1 × MaixCAM2 AI Vision & Audio Development Platform – 4GB, 2K, 64GB eMMC
• 1 × Mini Desktop Tripod
• 1 × USB Type-C Data & Power Cable

Product Disclaimer

Product images are for representation purposes only. The actual product may vary slightly in appearance, component placement, accessories, or physical design depending on stock availability and manufacturing batch.

Specifications are based on the provided product information and may be subject to manufacturer revisions. Please verify the required hardware and software compatibility before use.
