HLK-FPM383F Mini Capacitive Fingerprint Sensor – 3.3V UART

The HLK-FPM383F is a next-generation capacitive fingerprint recognition sensor designed to outperform traditional optical sensors in size, speed, and accuracy. Built on advanced capacitive sensing technology, it accurately detects fingerprint signals with high-speed response times, making it an ideal choice for modern security and identification systems.

Optimized for Battery-Powered Systems

This sensor is specifically engineered for small systems requiring long battery life. It operates with a low supply current and features a highly efficient sleep mode that draws a maximum of only 25 microamperes. Whether in active use or low-power standby, the HLK-FPM383F responds quickly and appropriately to ensure system reliability.

Industrial-Grade Durability

Despite its small form factor, the HLK-FPM383F is remarkably robust. It features a ±15 kilovolt static protection rating, ensuring it is not easily damaged by electrostatic discharge. Additionally, its wide operating temperature range allows it to function reliably even in harsh winter conditions.

Key Features

• Capacitive Sensing Technology: Accurately detects fingerprints with faster response than optical alternatives.

• Ultra-Low Power Consumption: Minimal current draw in sleep mode (25μA max), perfect for battery-operated devices.

• High Recognition Accuracy: 256 grayscale pixel resolution for high-precision identification.

• Robust ESD Protection: Integrated ±15kV static protection for enhanced hardware longevity.

• Simple Integration: Standard 6-pin 1mm connector and UART communication protocol.

• Compact Footprint: Small size allows for seamless embedding into jewelry boxes and door locks.

Technical Specifications

Typical Applicati  on Scenarios

• Security Field: Fingerprint-enabled door locks, jewelry boxes, and safes.

• Identification & Finance: Access control systems and POS machines.

• System Management: User authentication for software systems and license management.

• Portable Electronics: Biometric security for small handheld or battery-powered devices.

Download the

Package Includes datasheet here

• 1 x HLK-FPM383F Fingerprint Recognition Sensor Module

Important Product Disclaimer

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product images are shown for illustrative purposes only and may differ from the actual product.

Note

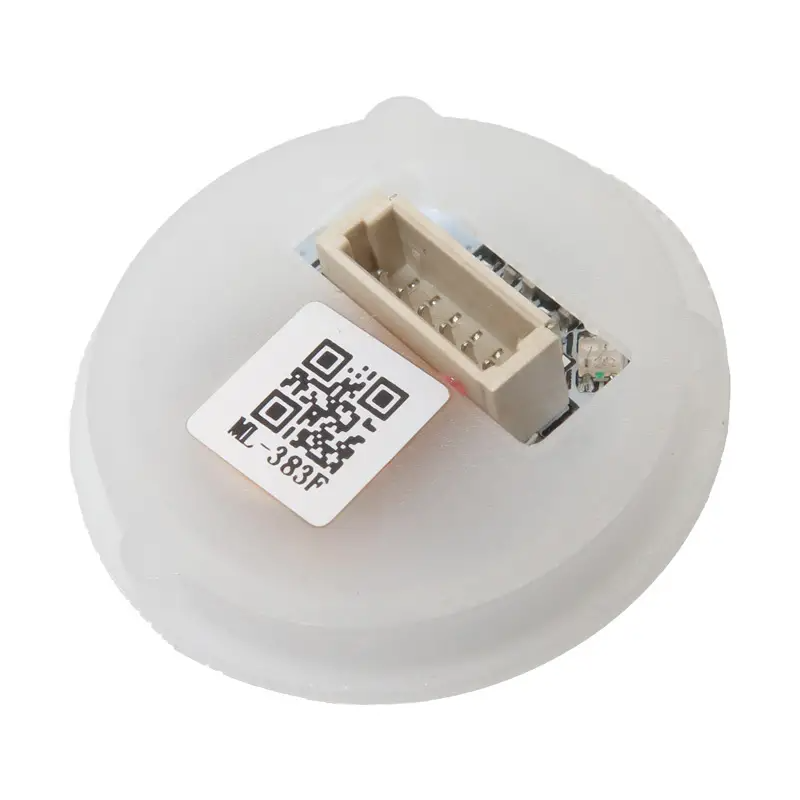

• Connection Detail: The module utilizes a 6-pin connector with a 1mm standard located on its back.

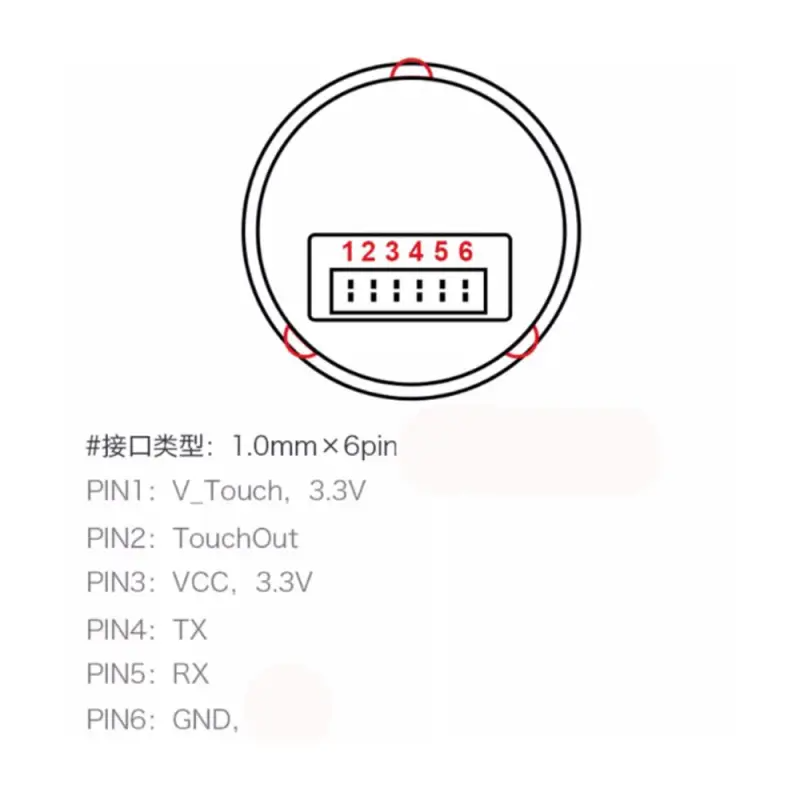

• Wiring: Please refer to the pinout diagrams in the product images to ensure correct wiring to your 3.3V microcontroller.
