AiPi-PalChat V1: Build Your AI Voice Assistant

AiPi-PalChat V1 is a compact AI voice interaction development board designed by Ai-Thinker for lightweight voice-controlled applications. It supports direct integration with three popular Chinese large language models: DeepSeek, Doubao, and Qwen (Tongyi Qianwen) — enabling natural language interaction with your device straight out of the box.

01 Overview

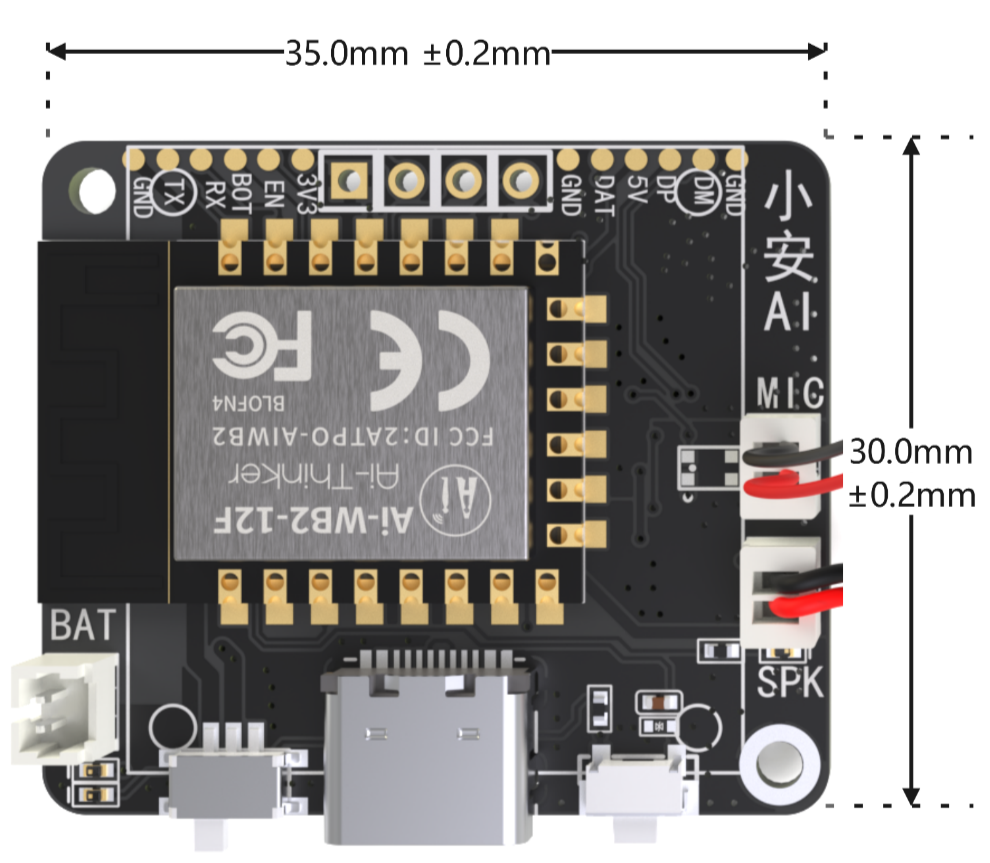

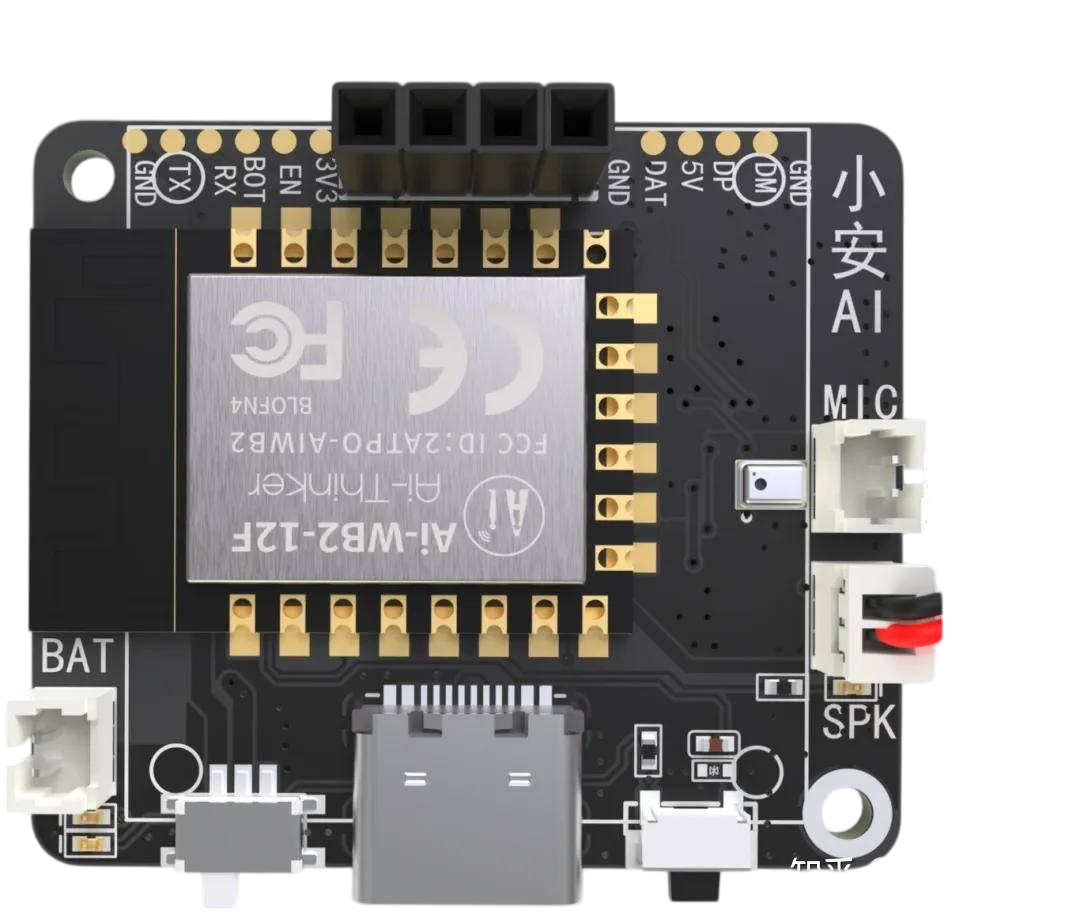

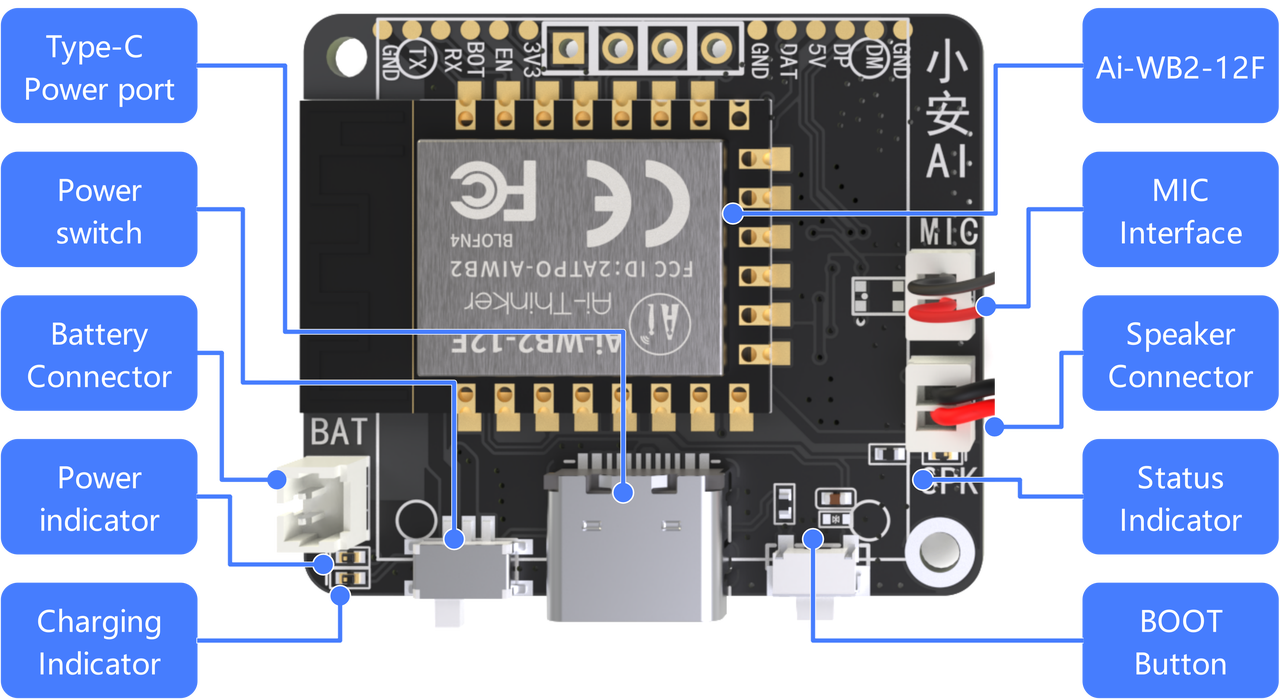

The AiPi-PalChatV1 is a micro voice interaction development board integrated with the XiaoZhi AI smart agent, designed for lightweight smart voice scenarios. Based on the Ai-WB2-12F module from Ai-Thinker, it features high integration and cost-effectiveness, supporting offline voice wake-up and voice interruption functions.

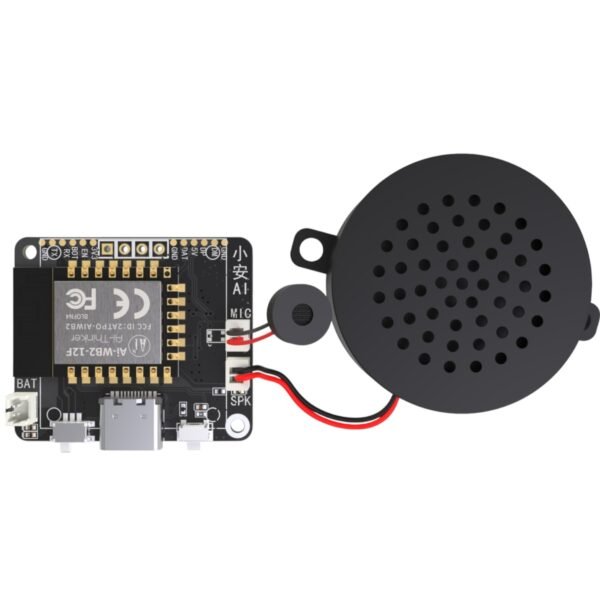

This development board, combined with a 2W/8Ω speaker and dual power supply modes (Type-C + battery), is suitable for hardware innovation scenarios requiring quick deployment of voice interaction capabilities, such as early education machines and story machines, and supports voice Q&A and interactive content playback.

02 Technical Parameters

Module Parameter Details
Controller Ai-Thinker Ai-WB2-12F Module (Wi-Fi/BLE Dual-Mode)
Wake-up Method Offline Voice Wake-up, Voice Interruption
Speaker Parameters 2W/8Ω Speaker, Optional 4W/3Ω Speaker
Display 0.96-inch IIC OLED Display
Power Supply Type-C (5V) + Battery
Wake-up Words Default: “Hello XiaoZhi.” Custom wake-up words available. Contact: overseas@aithinker.com for customization.
Development Support SDK Secondary Development Interface
