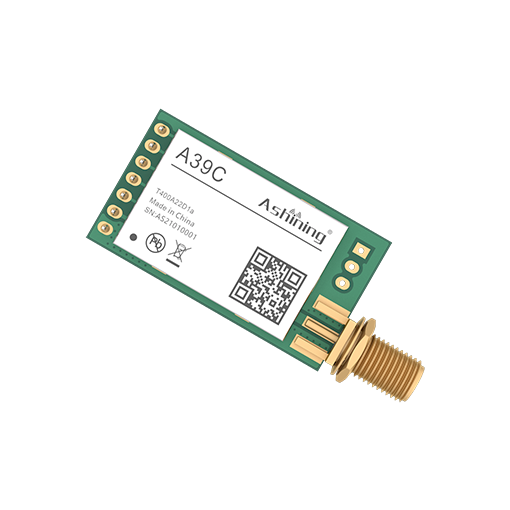

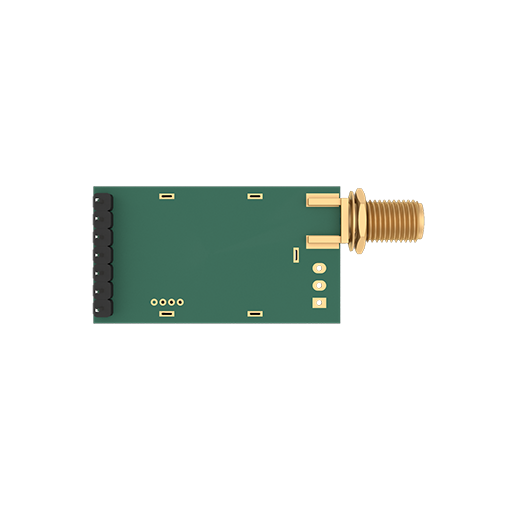

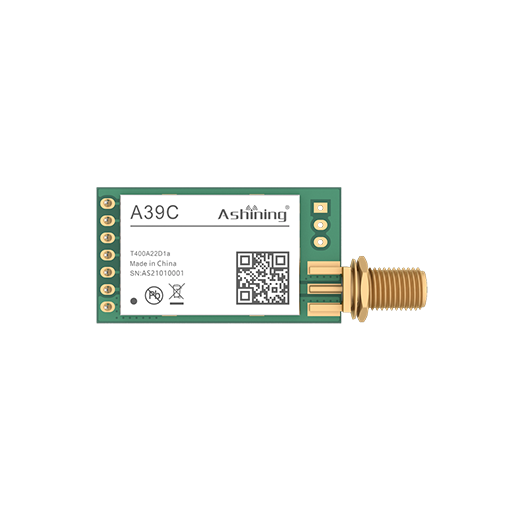

A39C-T400A22D1a Lora Wireless Module

High-Performance LoRa 433MHz Wireless Module – Long-Range 5 km, 116 Channels

This LoRa spread-spectrum wireless module is designed for reliable long-distance communication with advanced performance and versatility. Operating in the 410–525 MHz frequency range (default 433 MHz), it offers 116 selectable channels and a reference communication distance of up to 5 km in open conditions. With an air data rate of 1.2–62.5 kbps, this module is ideal for IoT, telemetry, industrial control, and wireless sensor networks.

Key Features:

• Chip Solution: Advanced LoRa spread spectrum for robust and interference-resistant communication.

• Frequency Range: 410–525 MHz (default frequency: 433 MHz).

• Multiple Channels: 116 channels for flexible operation.

• Long Communication Range: Up to 5 km line-of-sight distance.

• Air Speed: Adjustable from 1.2 kbps to 62.5 kbps.

• Packaging Type: Direct plug module for easy integration.

• Antenna Type: SMA connector for enhanced signal strength.

• Functional Modes: Supports master-slave mode and relay mode for extended applications.
