24VDC High Torque Vending Machine DC Motor with Spring
₹1,037.22 incl. GST (₹879.00 + GST)

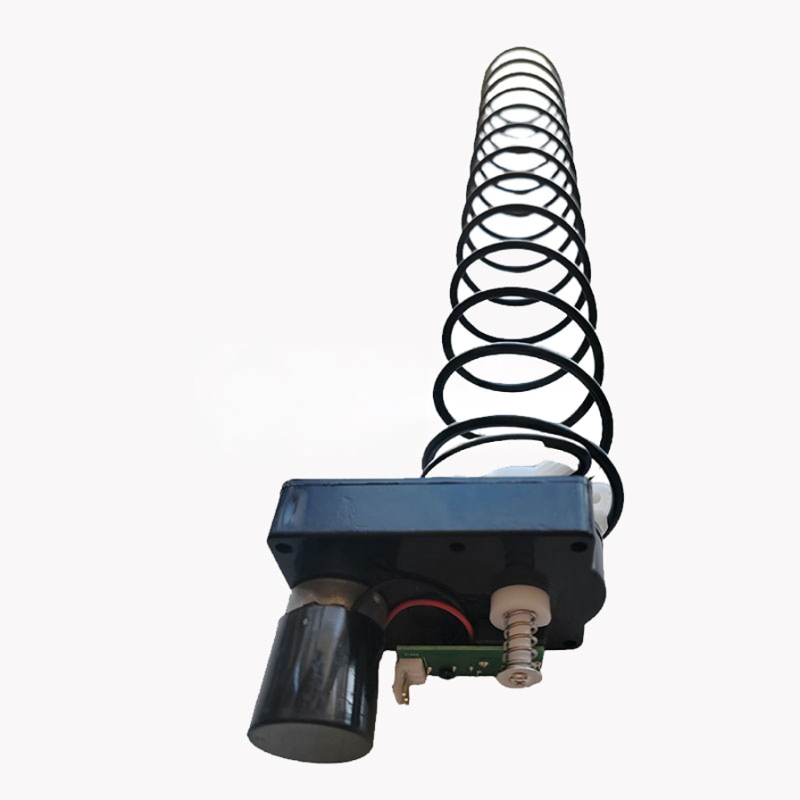

24VDC High Torque Vending Machine Gear Motor with Spiral Spring
Product Description
The 24VDC High Torque Vending Machine Gear Motor is a robust geared DC motor designed for vending machines, automatic dispensers, robotics, and DIY automation projects. It comes with an integrated metal spiral dispensing spring, making it ready for dispensing snacks, candy, pet food, small parts, seeds, and other items.
Operating at 30 RPM at 24V, the internal gearbox provides high torque and smooth rotation for reliable dispensing applications. The motor can also operate from 9V–24V DC, with reduced speed and torque at lower voltages.
Key Features
- High-torque geared DC motor
- Integrated metal spiral dispensing spring
- 30 RPM at 24V DC
- 9V–24V operating range
- Low no-load current of approximately 90mA
- CW/CCW reversible rotation
- Brushed DC motor
- Robust construction for repeated operation
- Easy mounting for vending applications
- Suitable for DIY automation and robotics
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Vending Machine Gear Motor |
| Motor Type | Brushed DC |
| Nominal Voltage | 24V DC |
| Operating Range | 9V – 24V DC |
| No Load Speed | 30 RPM @ 24V |
| No Load Current | ~90mA @ 24V |
| Rotation Direction | CW / CCW |
| Output Attachment | Spiral Spring Coil |
| Spring Diameter | Approx. 65mm |
| Spring Length | Approx. 400mm |
Typical Applications
- Vending machines
- Automatic snack dispensers
- DIY pet feeders
- Seed and fertilizer dispensers
- Parts dispensing systems
- Robotics mechanisms
- Arcade ticket dispensers
- Custom automation projects
Package Includes
- 1 × 24VDC High Torque Vending Machine DC Gear Motor with Spiral Spring
Important Note
The motor is rated for 24V DC and can operate at lower voltages with reduced speed and torque. Rotation direction can be reversed by changing the polarity of the DC supply.
Product Disclaimer
Product information may vary between manufacturing batches. Product images are for illustration purposes only and may differ slightly from the actual product. Always verify the voltage, wiring, dimensions, and mechanical requirements before installation.
Recommended Related Products
Explore relevant alternatives and complementary products selected from the full Robosap catalogue.
Frequently Asked Questions
1. What is this vending machine motor?
It is a 24V DC high-torque geared motor with an integrated spiral dispensing spring, designed for vending and automatic dispensing applications.
2. What voltage does the motor require?
The nominal operating voltage is 24V DC, with an operating range of 9V–24V DC.
3. What is the motor speed?
The no-load speed is approximately 30 RPM at 24V.
4. Can the motor rotate in both directions?
Yes. The motor supports CW and CCW rotation, which can be reversed by changing the power polarity.
5. What type of motor is it?
It is a brushed DC geared motor.
6. Is the dispensing spring included?
Yes. The motor comes with an integrated metal spiral dispensing spring.
7. What are the spring dimensions?
The spring is approximately 65mm in diameter and 400mm in length.
8. What can this motor be used for?
It can be used for vending machines, pet feeders, parts dispensers, seed dispensers, robotics, and DIY automation projects.
9. What is the no-load current?
The no-load current is approximately 90mA at 24V.
10. Can I operate it below 24V?
Yes, it can operate from 9V–24V DC, but speed and torque will be reduced at lower voltages.
11. Is this motor suitable for DIY projects?
Yes. Its geared design and integrated dispensing spring make it suitable for various DIY dispensing and automation projects.
12. What is included in the package?
The package includes 1 × 24VDC High Torque Vending Machine DC Gear Motor with Spring.
