17 DOF DIY Bipedal Humanoid Robot Kit without Servo Motors

Please not this and Mecahnical Kit and Servos need to be purchased Seperately.

The 17DOF Biped Robot Educational Robotic Kit (Without Servos) is a high-quality full aluminum humanoid robot frame designed for robotics enthusiasts, students, and makers. Built from precision-cut metal brackets, this unassembled kit provides the structural base needed to build a humanoid walking robot capable of complex motion control and balance simulation.

Ideal for STEM learning, robotics education, and DIY projects, this kit allows users to install their own choice of servo motors and controllers, making it suitable for customization and research. It is perfect for learning mechanical assembly, robotic motion planning, and humanoid design principles.

Features

• Full aluminum frame with smooth edges for safety and durability

• 17 Degrees of Freedom: head, arms, shoulders, hips, legs, and feet

• Modular servo brackets for easy installation of MG995, MG996R, or 25kg high-torque servos

• Strong, lightweight structure designed for humanoid walking motion

• Unassembled design promotes hands-on learning and experimentation

• Ideal for robotics competitions, research, and prototyping

Specifications

• Material: Aluminum Alloy

• Frame Color: Black / Silver

• Height: 40 cm

• Width: 23 cm

• Servo Compatibility: MG995 / MG996R / 25kg-cm Digital Servos

• Recommended Servo Upgrade: TiankongRC TD-8125MG 25 kg Digital Servo Motor 180°

• Operating Voltage: 4.8 – 7.2 V (depends on selected servo)

• Bearings: 14 Miniature Ball Radial Bearings

• Approx. Weight: 1.3 kg (without servos)

• Controller: Not included

• Battery: Not included

Applications

• Robotics education and training

• STEM learning and classroom projects

• DIY robotic competitions and demonstrations

• Humanoid robot development and research

• Engineering and maker workshops

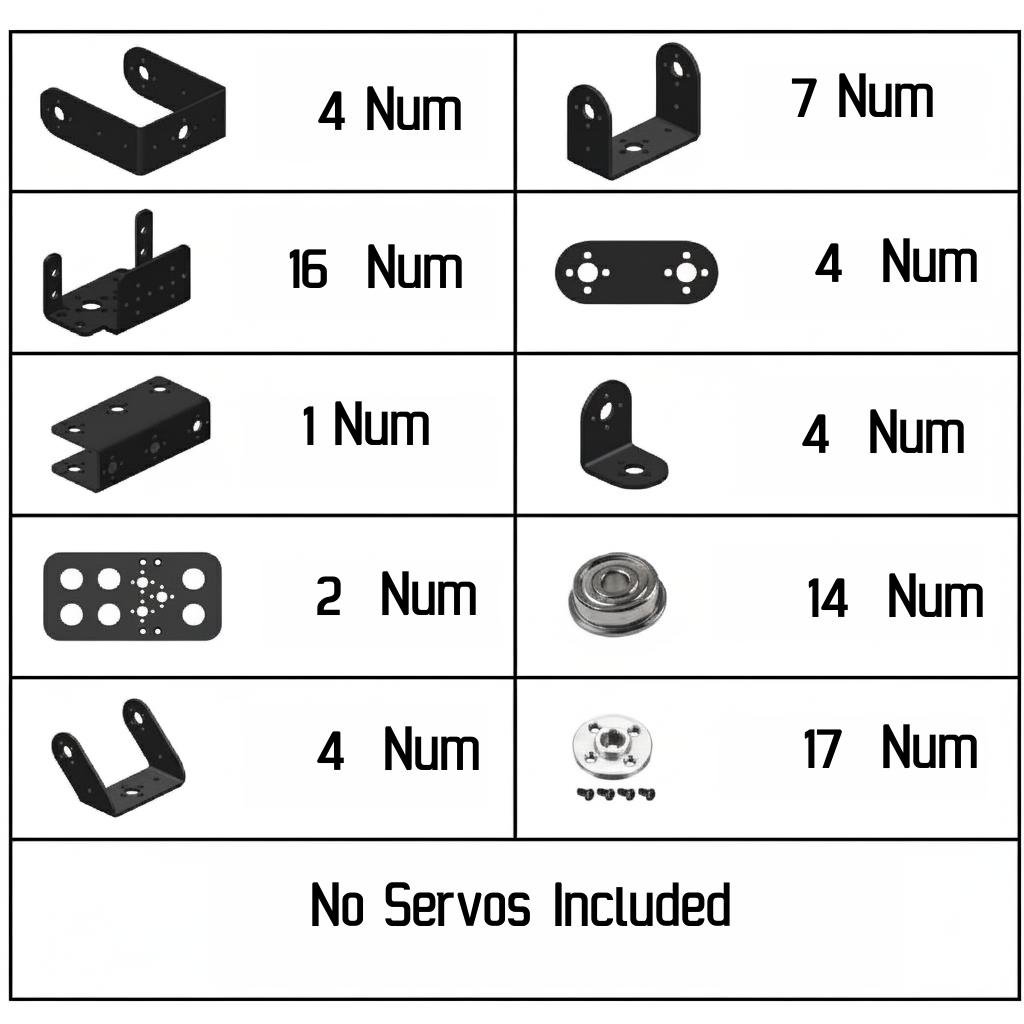

Package Includes

• 16 × Multi-function Servo Holders

• 7 × U-type Short Servo Brackets

• 4 × U-type Long Servo Brackets

• 4 × Oblique U-type Servo Holders

• 4 × One-type Servo Consoles

• 4 × L-type Servo Holders

• 1 × U-shaped Robot Waist Bracket

• 2 × Foot Base Plates

• 14 × Miniature Radial Bearings

• 1 × Set of Compatible Nuts and Bolts

Important Notes

• This is an unassembled frame kit; servos, controller, and battery are not included.

• Compatible with MG995 / MG996R / 25kg digital servos.

• For optimal performance and servo life, it is recommended to use 25kg-cm digital servos, available here.

• Requires assembly and programming to operate.

• Product images are for representation only; actual product may vary slightly.
