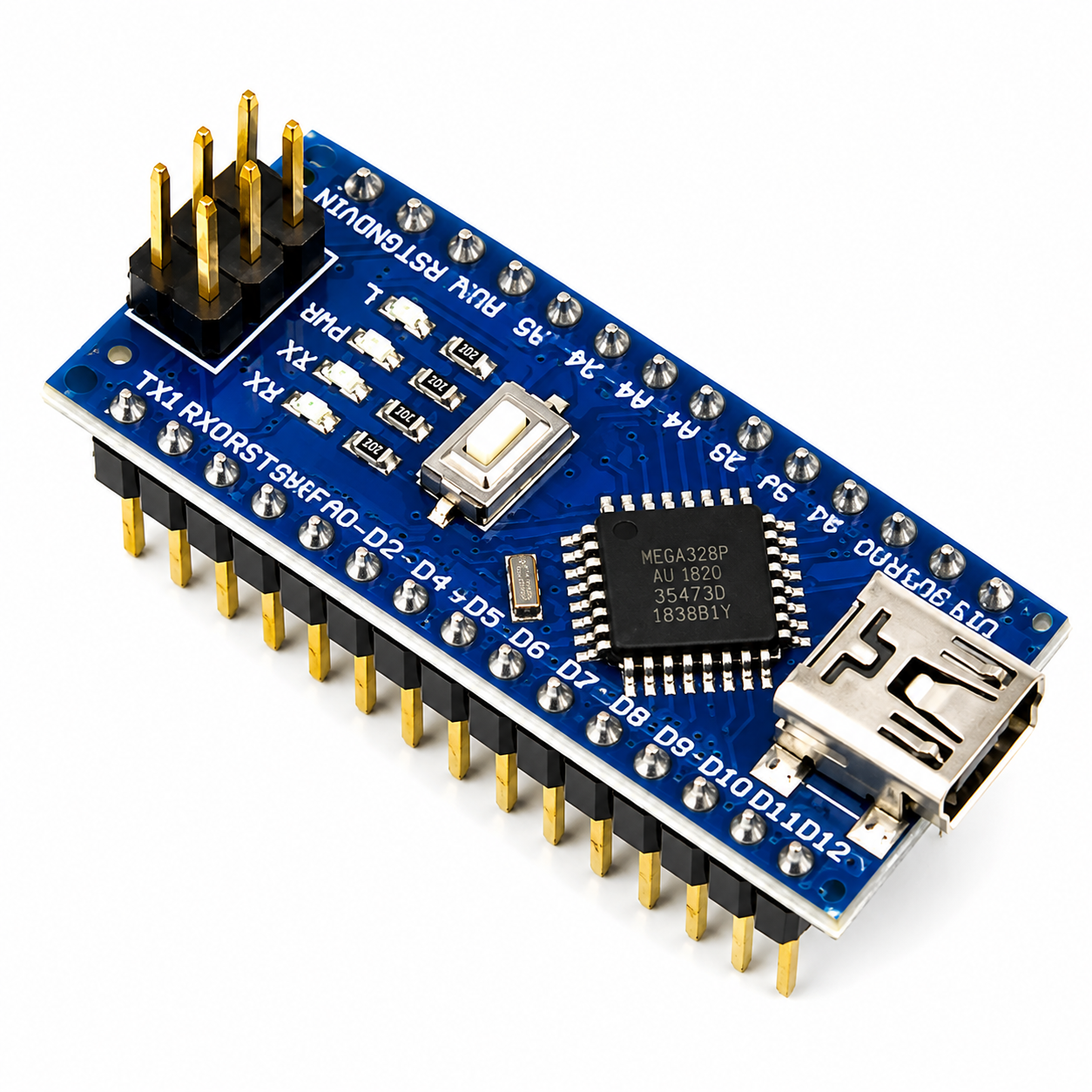

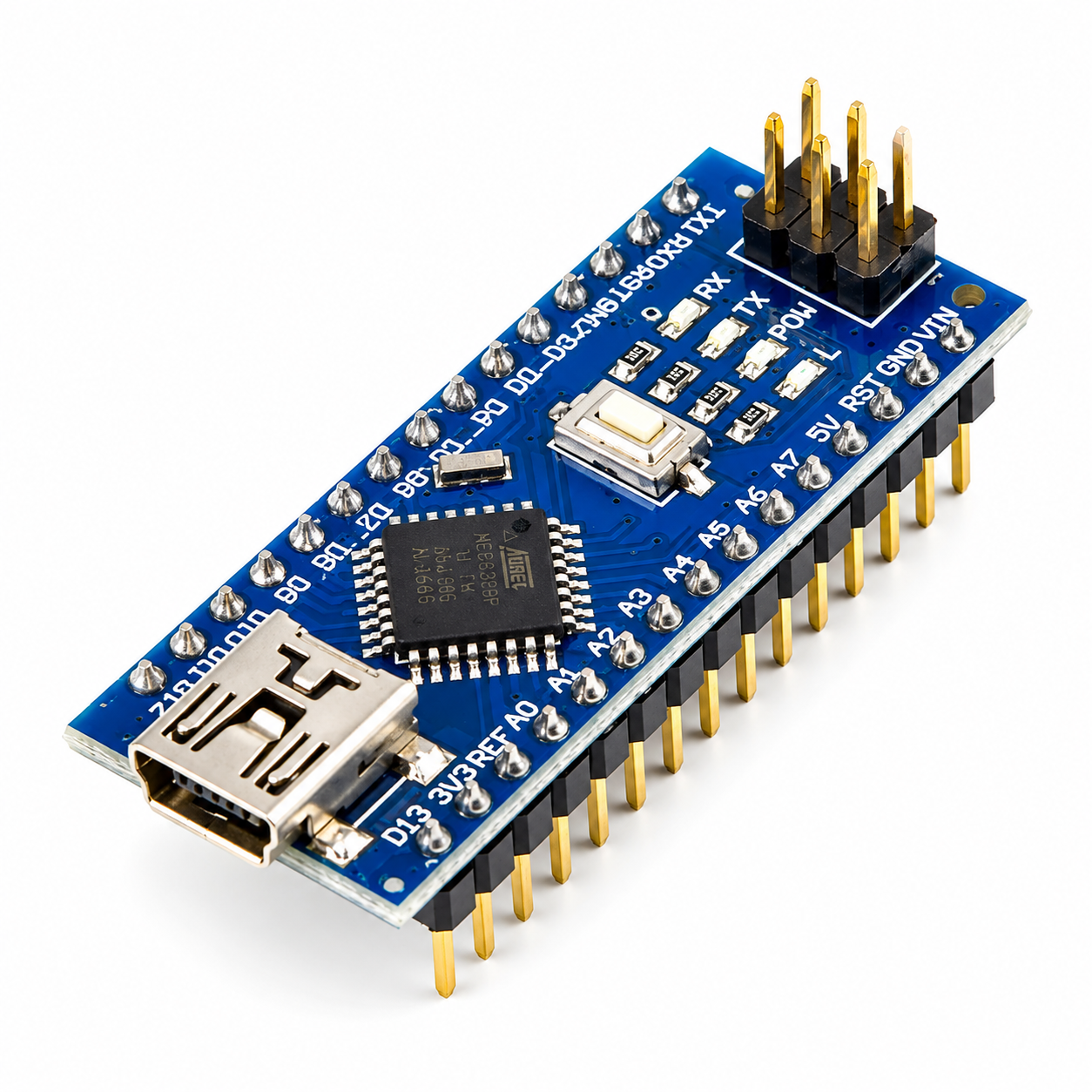

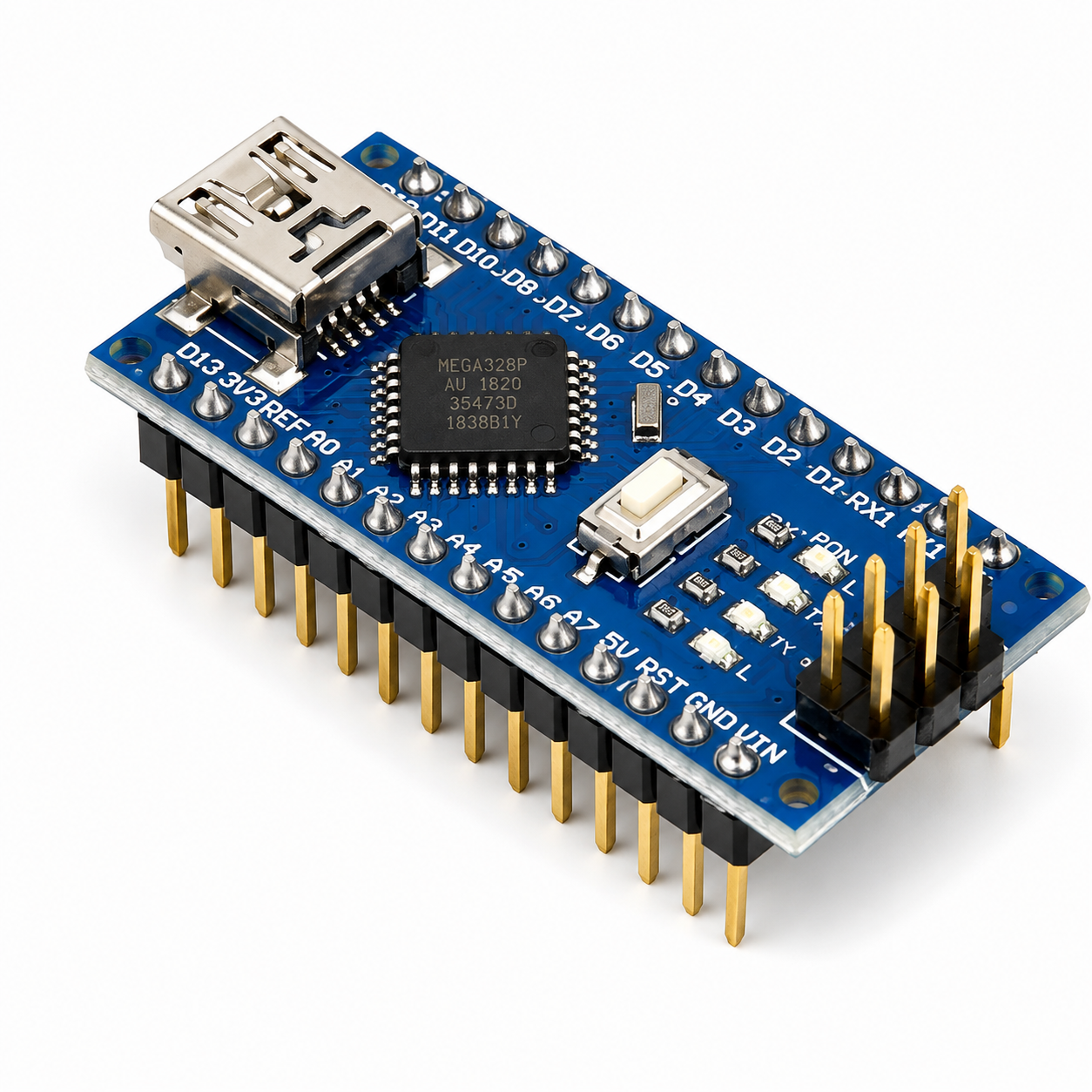

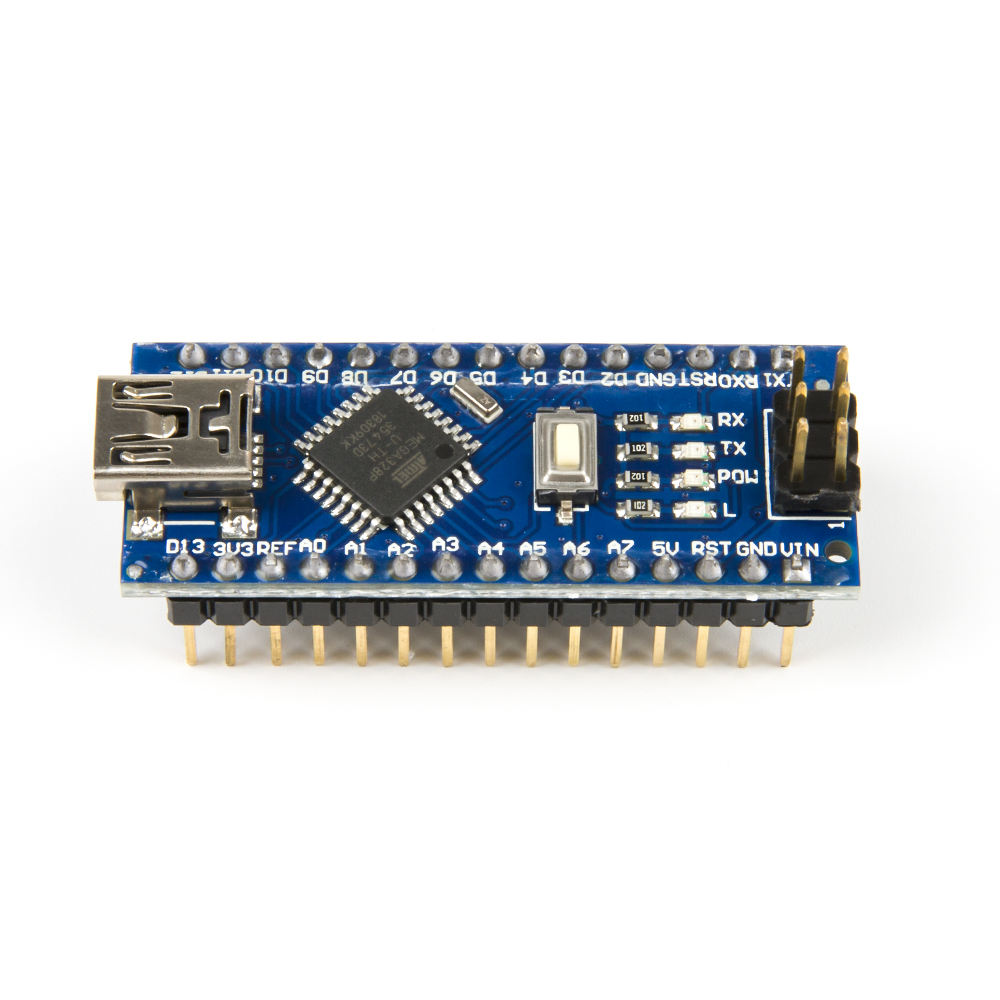

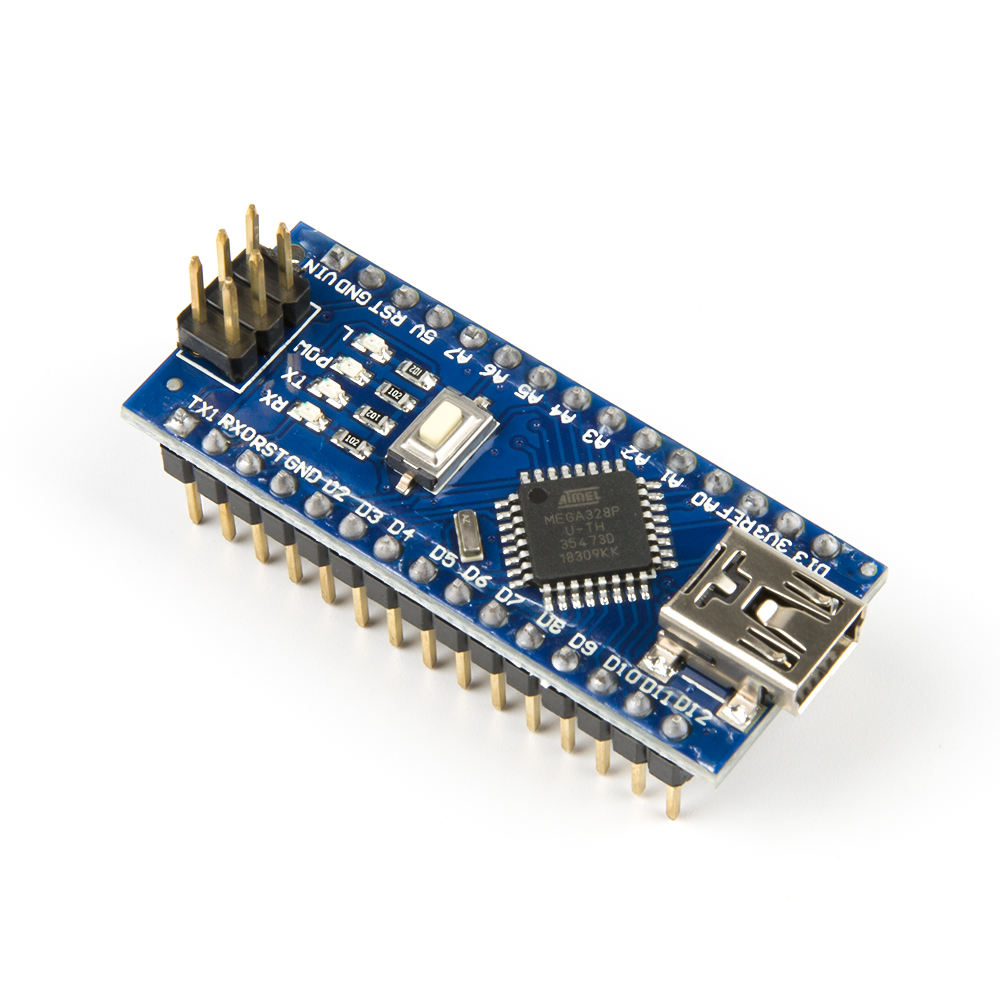

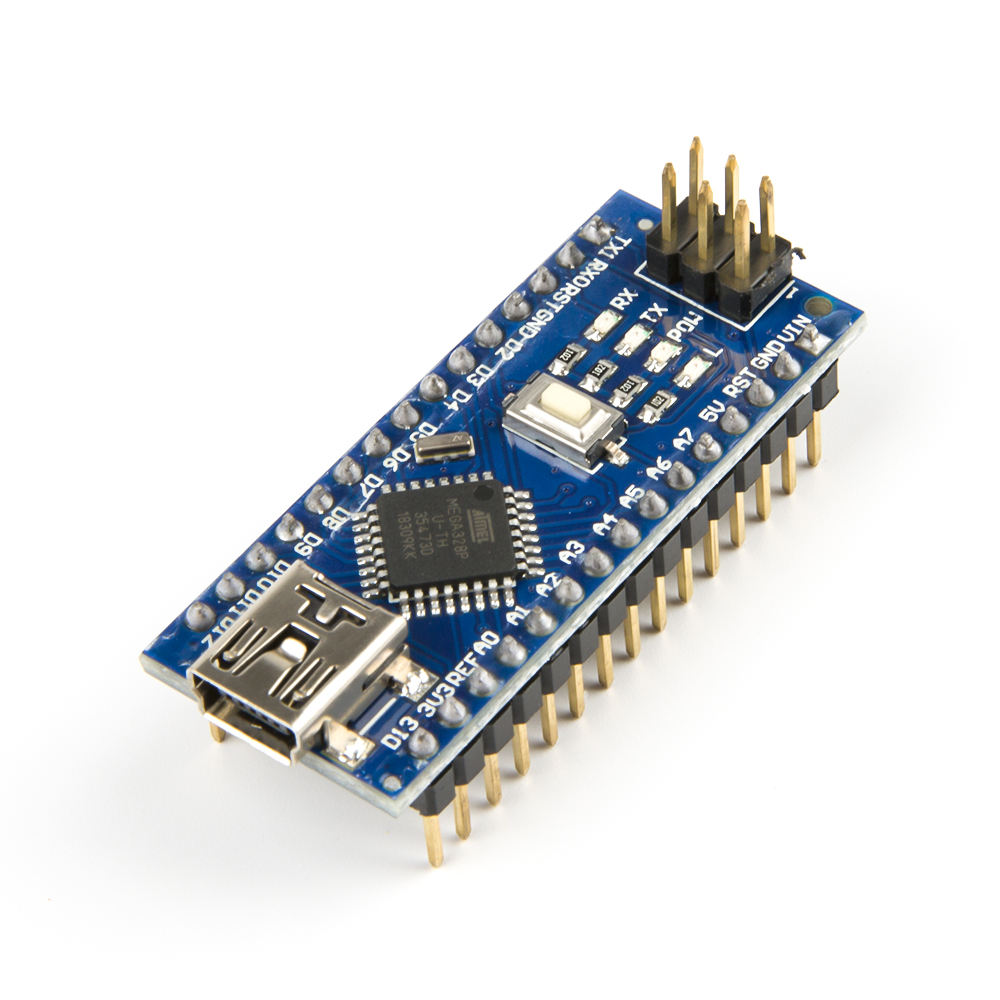

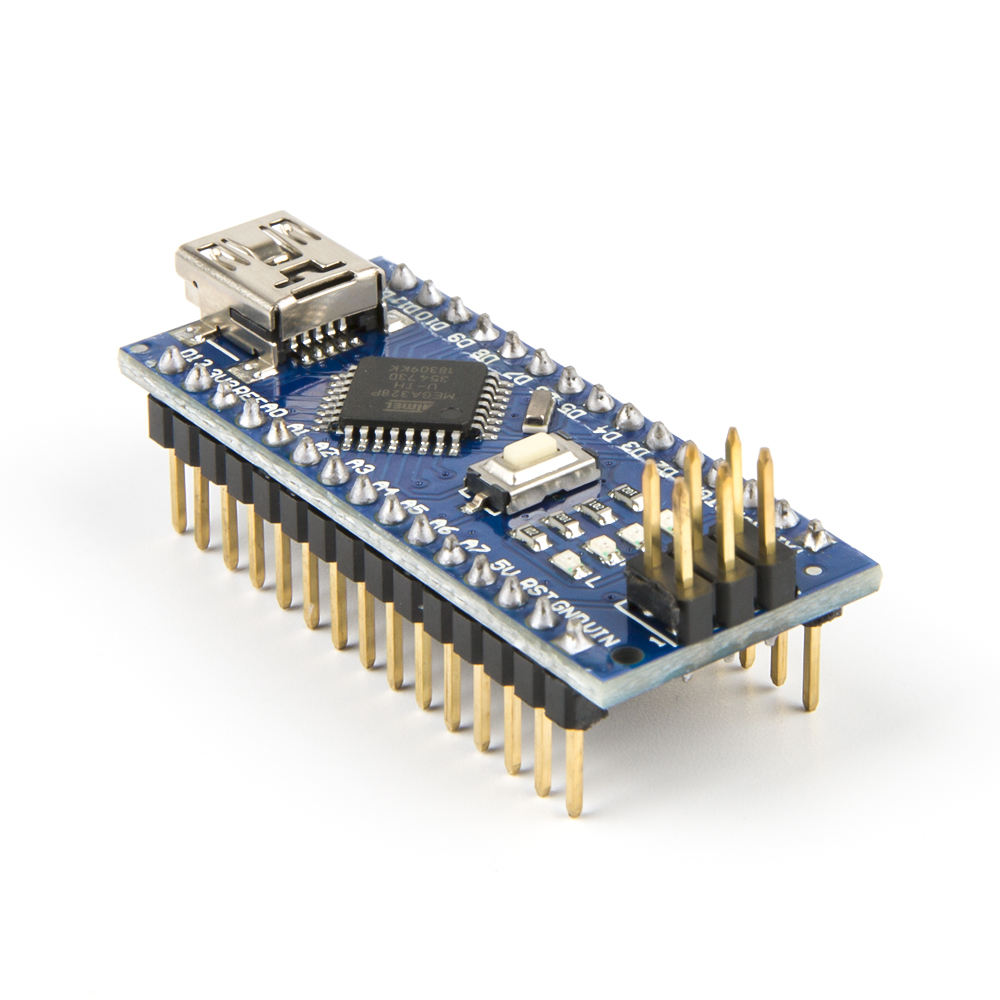

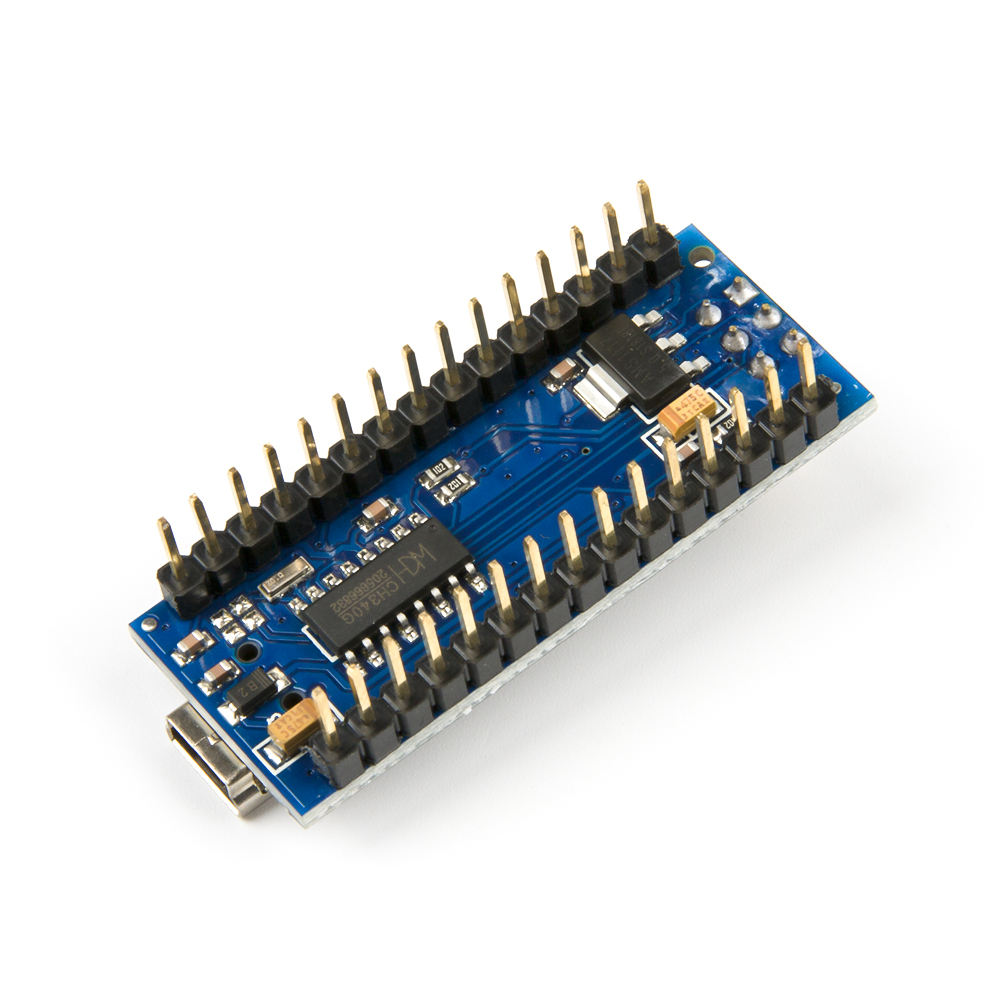

Arduino Nano Compatible Development Board

Unlock endless possibilities in electronics with the Arduino Nano . This compact, powerful, and breadboard-friendly microcontroller board packs the full functionality of larger boards like the Arduino Uno into a tiny footprint. Powered by the reliable ATmega328P microcontroller, the Nano is the perfect choice for projects where size and performance are critical.

Whether you are a student learning to code, a hobbyist building a custom robot, or a professional prototyping a new IoT device, the Arduino Nano provides the power and versatility you need to bring your ideas to life.

Why Choose the Arduino Nano?

• Mighty in a Mini Package: Don’t let its small size fool you! The Nano offers the same processing power as the classic Arduino Uno, making it a capable brain for demanding applications.



•  Breadboard-Friendly Design: With its dual-inline pin layout, the Nano plugs directly into a standard breadboard, making prototyping quick, clean, and solder-free. It’s the ultimate tool for rapid project development.



•  Simple to Program: Connect it to your PC or Mac with a Mini-USB cable and start coding immediately using the free and user-friendly Arduino IDE. Thousands of online tutorials and code libraries are available to help you get started.

•  Versatile Connectivity: Equipped with 14 digital I/O pins, 8 analog inputs, and support for I2C and SPI communication, the Nano can interface with hundreds of sensors, motors, displays, and modules.



Endless Project Possibilities

The Arduino Nano is the go-to board for a huge range of applications:

• Robotics: Build compact and intelligent robots, drones, or rovers.



• Internet of Things (IoT): Create custom smart home devices and sensor networks.



• Wearable Technology: Design interactive clothing, custom fitness trackers, and smart accessories.



• Interactive Art: Drive stunning LED displays and immersive art installations.

• Data Logging: Build portable devices to measure and record environmental data.

Technical Specifications

• Microcontroller: ATmega328P



• Operating Voltage: 5V

• Input Voltage (Recommended): 7-12V

• Input Voltage (Limits): 6-20V

• Digital I/O Pins: 14 (of which 6 provide PWM output)



• Analog Input Pins: 8

• DC Current per I/O Pin: 40 mA

• Flash Memory: 32 KB (2 KB used by bootloader)

• SRAM: 2 KB

• EEPROM: 1 KB

• Clock Speed: 16 MHz

• USB Interface: Mini-USB Port (often uses CH340G driver)



• Dimensions: Approximately 45mm x 18mm (1.77″ x 0.7″)



lease Note: This board comes without cable. If you need USB cable please purchase it separately here.
Please Note: Images are representaion only. Please Note: The acutal product may slightly in apperance. You may get soldered or unsoldered version depending on stock availability. If you need the specific version, please contact us before placing the order.
