ADMP401 MEMS Analog Microphone Module – High Sensitivity
₹922.76 incl. GST (₹782.00 + GST)
Capture crystal-clear audio with the ADMP401 MEMS Microphone. Features High SNR (62dB), analog output, and low power. Ideal for voice recognition and IoT.

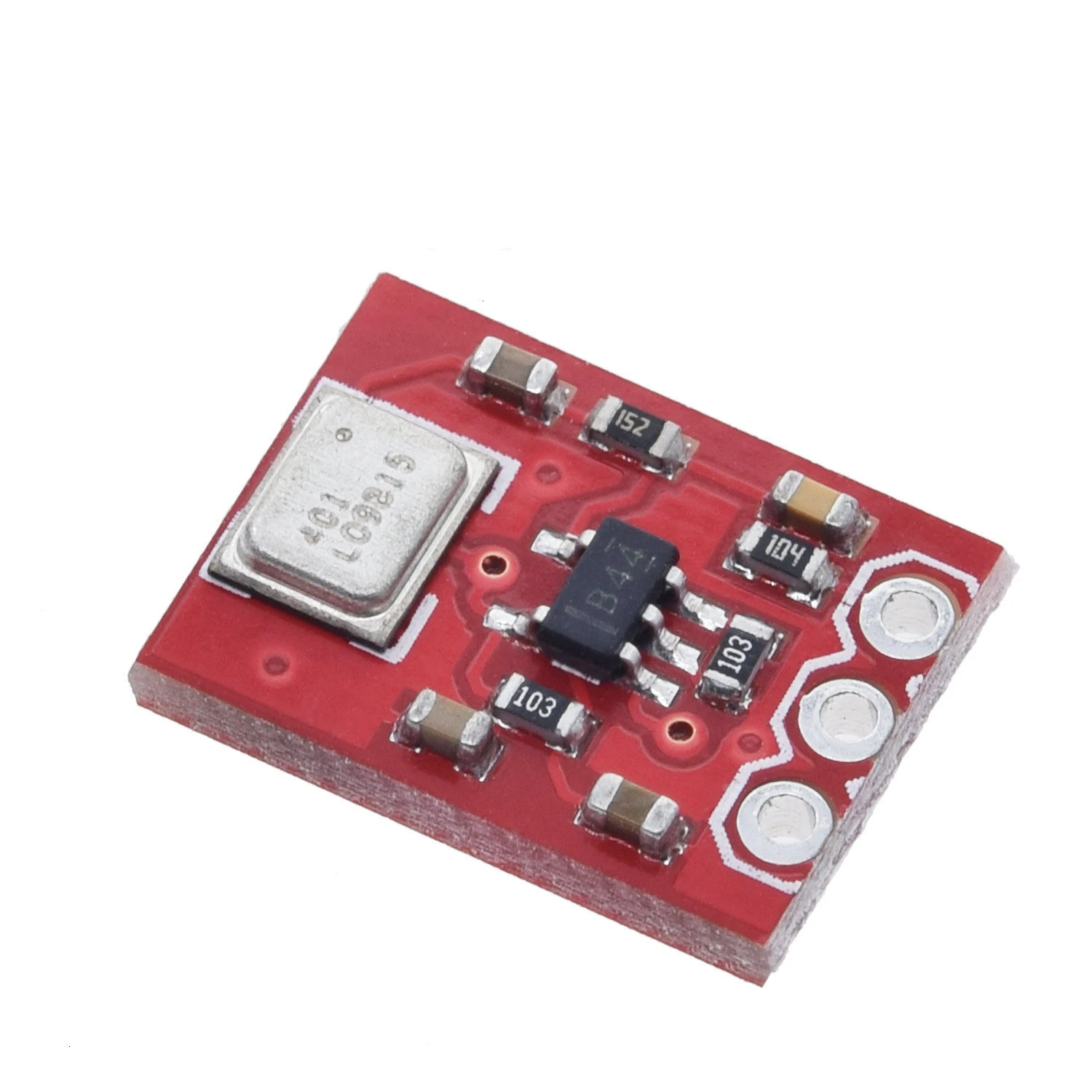

ADMP401 MEMS Omnidirectional Microphone Module
Product Description
The ADMP401 MEMS Omnidirectional Microphone Module is a compact audio sensing solution designed for voice recognition, audio recording, IoT devices, wearables, robotics, and embedded systems. Based on MEMS technology, it provides reliable and clear sound detection in a small form factor.
The microphone features an omnidirectional pickup pattern, allowing it to capture sound from all directions, along with a typical 62 dB signal-to-noise ratio for clean audio sensing. Its analog output can be connected directly to compatible microcontroller ADC inputs.
High Fidelity Sound Capture
The ADMP401 provides a 62 dB typical SNR and a frequency response of approximately 100 Hz–15 kHz, making it suitable for voice and general audio sensing applications. Its omnidirectional design allows sound to be captured from different directions without requiring precise microphone positioning.
Low Power & Easy Interface
The module operates from 1.5V–3.3V DC and consumes less than 250 µA, making it suitable for low-power and battery-operated applications. The analog output provides a simple interface for microcontrollers such as Arduino, ESP32, and Teensy.
Key Features
- MEMS microphone technology
- Omnidirectional sound pickup
- Typical 62 dB signal-to-noise ratio
- Analog audio output
- Low current consumption below 250 µA
- 1.5V–3.3V operating voltage
- Compact design
- Suitable for Arduino, ESP32, and Teensy
- Ideal for voice and sound sensing applications
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ADMP401 MEMS |
| Output Type | Analog |
| Supply Voltage | 1.5V – 3.3V DC |
| Current Consumption | <250 µA |
| Signal-to-Noise Ratio | ~62 dB |
| Sensitivity | -42 dBV Typical |
| Frequency Response | 100 Hz – 15 kHz |
| Pickup Pattern | Omnidirectional |
Typical Application Scenarios
Voice Recognition
Suitable for voice command systems, smart devices, and voice-controlled projects.
Audio Recording
Can be integrated into portable audio recording and embedded recording systems.
Wearable Devices
Its compact size and low power consumption make it suitable for wearable and portable electronics.
IoT Sensors
Useful for sound-level monitoring, noise detection, and other IoT sensing applications.
Robotics
Can add sound detection and audio sensing capabilities to robotic and embedded systems.
Applications
- Voice recognition
- Audio recording
- Smart home devices
- IoT sound sensors
- Noise monitoring
- Wearable electronics
- Robotics
- Voice command systems
- Embedded audio systems
- Portable electronics
- Educational projects
- DIY audio projects
Package Includes
- 1 × ADMP401 MEMS Omnidirectional Microphone Module
Product Disclaimer
Product information provided on our website may not be entirely accurate as specifications can vary between manufacturers and production batches. Please verify the actual product specifications before using the module in critical applications.
Product images are for illustrative purposes only and may differ slightly from the actual product in colour, component placement, or other visual details.
Important Note
Voltage Compatibility
The specified supply voltage is 1.5V–3.3V DC. Ensure that the microphone module is not connected to a voltage above its specified operating range.
Analog Interface
The microphone provides an analog output, which can be connected to a suitable ADC input. Ensure that the connected microcontroller’s ADC input range is compatible with the module’s output signal.
Recommended Related Products
Explore relevant alternatives and complementary products selected from the full Robosap catalogue.
- Analog Sound Sensor Microphone Module For Arduino
- MCP6022 Sound Sensor MIC Silicon Microphone Rail-to-Rail Operational Amplifier Simulated Output
- MAX9813H CJMCU-9813 Fixed Gain Integrated Bias Microphone Amplifier Module
- MAX9812 Microphone Amplifier Sound Module MIC Voice Module 3-5V
- Max4466 Electret Microphone Amplifier With Adjustable Gain Module
- PAM 8403 Amplifier Module with Knob
Frequently Asked Questions
1. What is the ADMP401 Microphone Module?
The ADMP401 is a MEMS-based omnidirectional microphone module designed for audio and sound sensing applications.
2. What type of output does it provide?
It provides an analog audio output.
3. What is the operating voltage?
The specified supply voltage is 1.5V–3.3V DC.
4. What is the current consumption?
The module consumes less than 250 µA.
5. Is the microphone omnidirectional?
Yes. It is designed to capture sound from all directions.
6. What is the SNR of the microphone?
The typical signal-to-noise ratio is approximately 62 dB.
7. Can I use it with Arduino?
Yes. Its analog output can be connected to a suitable Arduino ADC input.
8. Can I use it with ESP32?
Yes. The analog output can be connected to a compatible ESP32 ADC input.
9. What is the frequency response?
The specified frequency response is approximately 100 Hz–15 kHz.
10. What is included in the package?
The package includes 1 × ADMP401 MEMS Omnidirectional Microphone Module.Only logged in customers who have purchased this product may leave a review.
